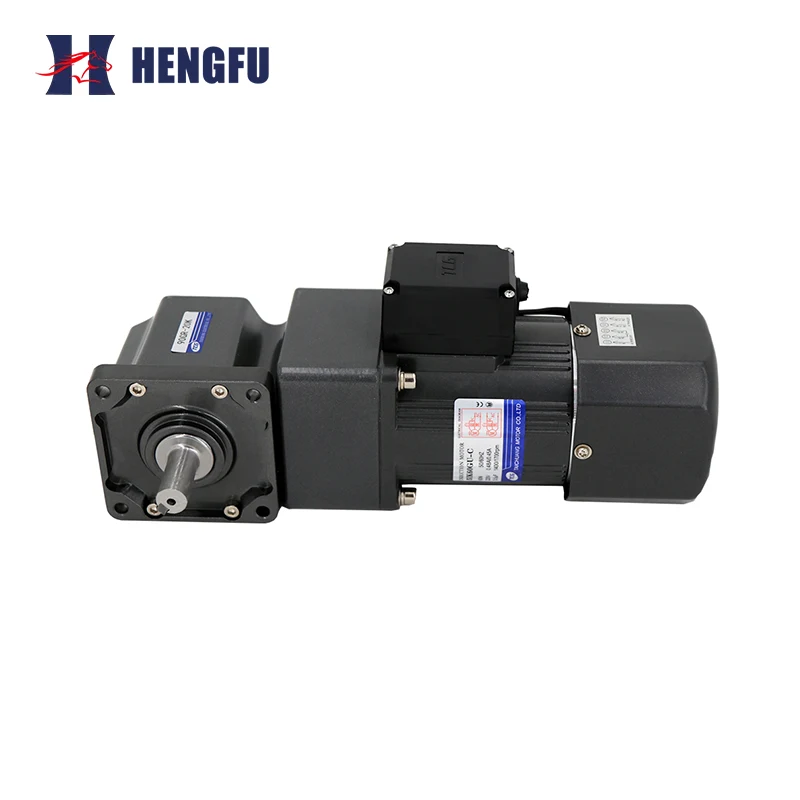

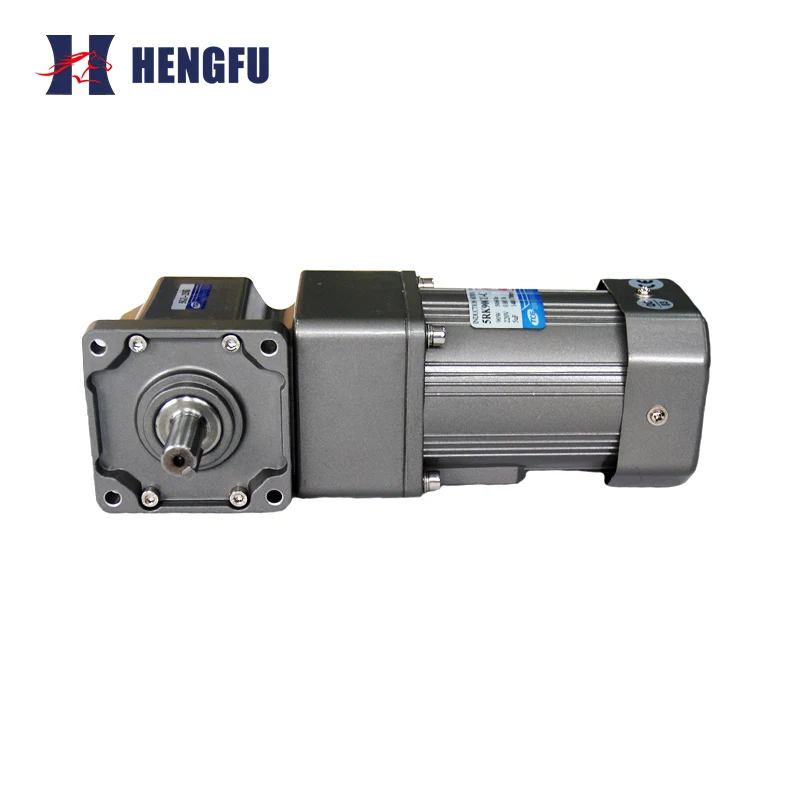

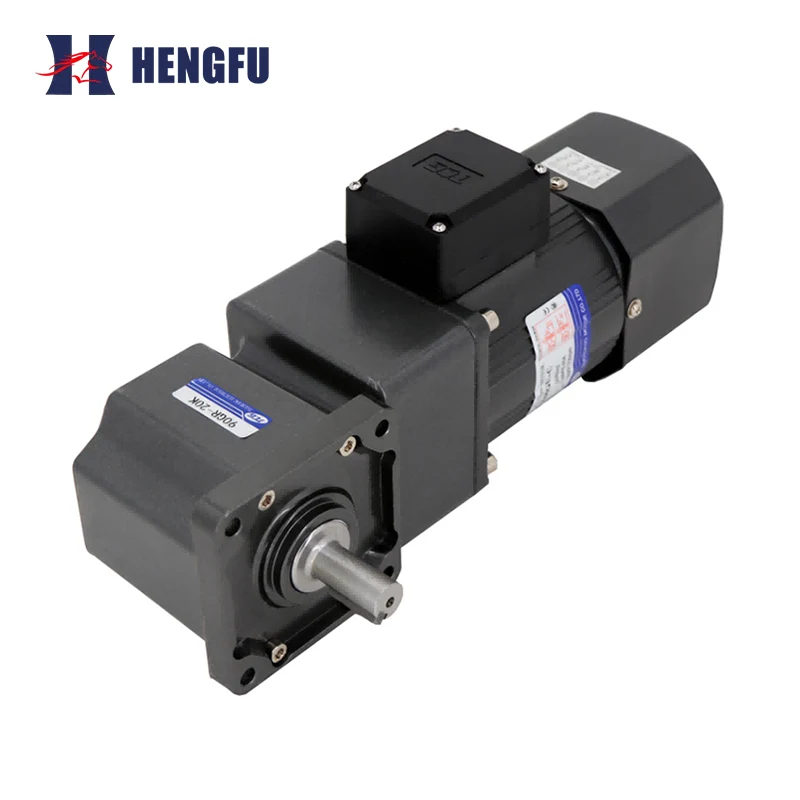

This GR Series Right Angle Gear Reducer Right Output Shaft utilizes advanced bevel gear transmission technology, specifically designed for industrial environments with limited space and the need for changing transmission direction.
Right-Angle Transmission: The input and output shafts are arranged at a 90° angle, effectively saving horizontal or vertical installation space and solving layout challenges.
High Rigidity Design: Utilizing a high-strength cast iron housing, it offers excellent rigidity and impact resistance. Combined with precision-ground bevel gear pairs, it boasts high load-bearing capacity, smooth operation, and extremely low noise.
Harsh Environmental Adaptability: The GR Series Right Angle Gear Reducer Right Output Shaft comes standard with an IP44 protection rating, providing a sealed, dustproof, and leak-proof environment, perfectly suited for dusty, humid, and water-washable industrial environments.

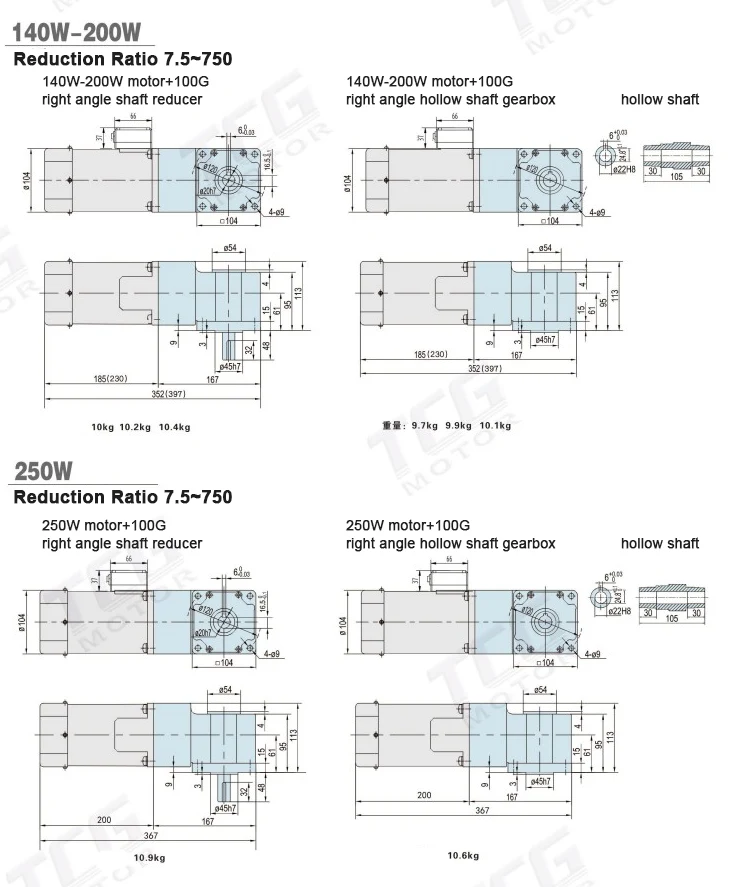

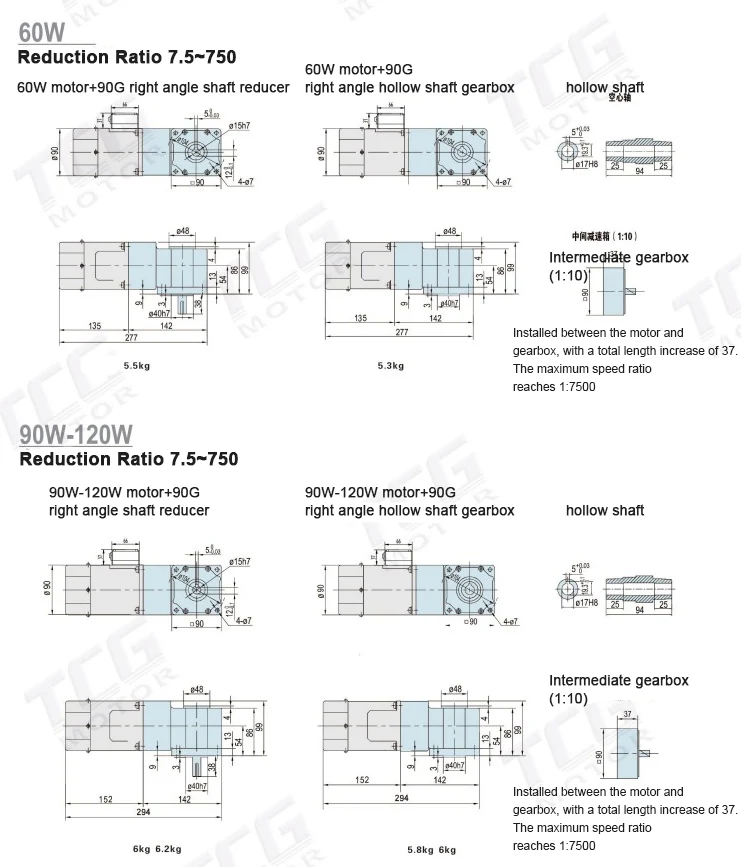

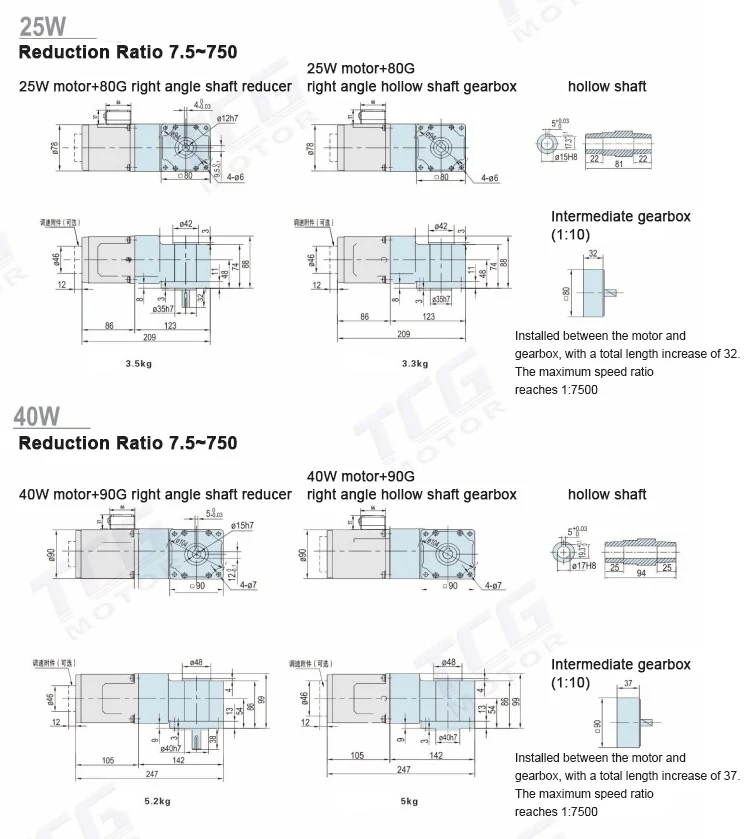

Adopting optimized design, small size, flexible installation, space saving, high efficiency, large output torque, smooth start-up, long service life, can be equipped with AC, continuous/reversible motors, torque motors, and can add accessories such as speed regulation, fan blades, electric brakes, etc. The reduction ratio range is wide: 5-750, with a maximum of 7500 when combined with an intermediate box. The power range is wide: 25W-250W, widely used in the transmission equipment industry such as food, medical, and advertising.
With its IP44 protection and right-angle steering capabilities, the GR Series Right Angle Gear Reducer Right Output Shaft is the preferred choice for the following industries:
Logistics Conveying Systems: Right-angle steering lines in e-commerce sorting centers, turning sections of roller conveyors, and vertical lifting of stacker cranes.
Food and Packaging Machinery: Pillow packaging machines, food mixers, and labeling machines.
Textiles and Printing: Winding/warping machines and offset printing machine roller drives.
Automation and Robotics: Steering joints for Cartesian robots and workpiece posture adjustment in automated assembly lines.
Construction Machinery and Chemicals: Auxiliary drives for mini excavators, agitator shaft drives for reactors, and combine harvesters.
Deep Accumulation: Over 20 years of in-depth industry experience.
Guaranteed Production Capacity: Headquartered in Heshan, Guangdong, covering approximately 20 acres, with a factory area exceeding 30,000 square meters.
R&D and Manufacturing: Integrating R&D, production, and sales, focusing on the meticulous manufacturing of TCG geared motors, new energy motors, and right-angle reducers.
Exclusive Technical Support: We provide a detailed guide to troubleshooting abnormal noises from gearboxes, helping customers quickly locate problems without blindly disassembling the machine.
Service Commitment: We provide full-process technical support from model selection to after-sales service, ensuring efficient equipment operation.
Q1: What is GR Series Right Angle Gear Reducer Right Output Shaft?
A: G-type refers to a gearbox where the output shaft is located on the right side of the housing when facing the output shaft end cover. This design is often used in machinery that requires power transmission to the right or has specific wiring layouts. Combined with a 90° right-angle drive, it greatly optimizes equipment layout space.
Q2: Is this product suitable for use in humid or dusty environments?
A: Yes. GR Series Right Angle Gear Reducer Right Output Shaft features a high-sealing design with an IP65 protection rating, effectively preventing dust intrusion and water splashes. It is ideal for harsh environments such as food processing plants, textile mills, or outdoor construction machinery.
Q3: What should I do if I encounter abnormal noise from the gearbox?
A: Please follow these steps for quick troubleshooting:
Initial Assessment: A muffled noise during startup may indicate large gear clearance or insufficient oil; a sharp whistling sound is often due to bearing wear; irregular impact sounds may indicate foreign objects or broken teeth.
Simple Troubleshooting: Check the oil level (1/2~2/3 full) and oil quality; check if the foundation bolts are loose; perform a no-load test (if the abnormal noise disappears, the problem lies with the external load); manually rotate the gearbox to check for any jamming.
Shutdown Warning: If abnormal noises are accompanied by a casing temperature exceeding 80℃, violent impact sounds, or overall machine shaking, please stop the machine immediately to prevent further malfunction.
Q4: Does the product require frequent oil changes?
A: The G series mostly uses oil bath splash lubrication, resulting in long maintenance intervals. Some models support a full-life, oil-free design, significantly reducing your maintenance costs and downtime.
