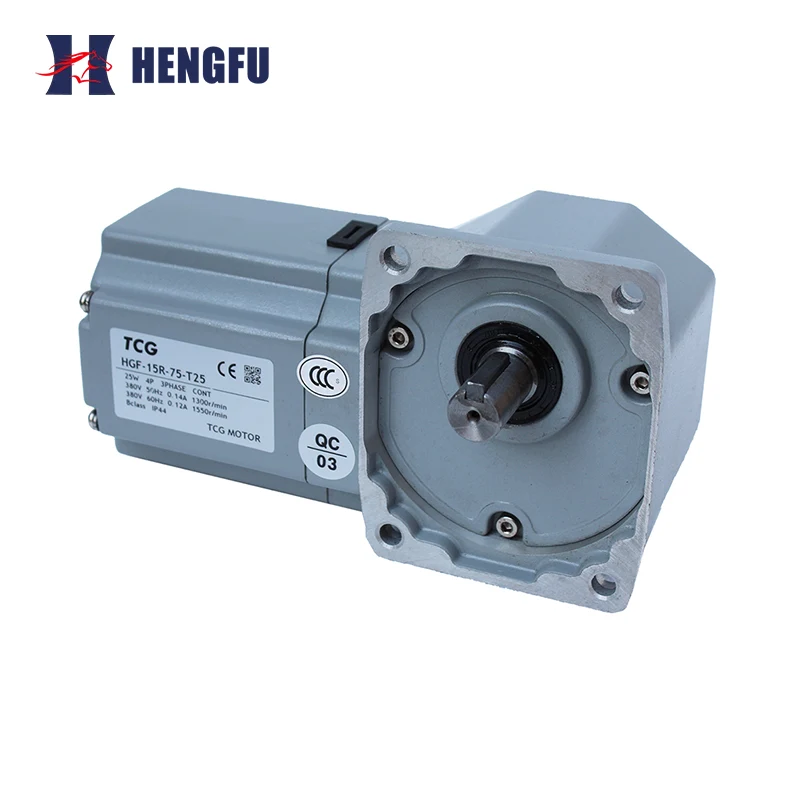

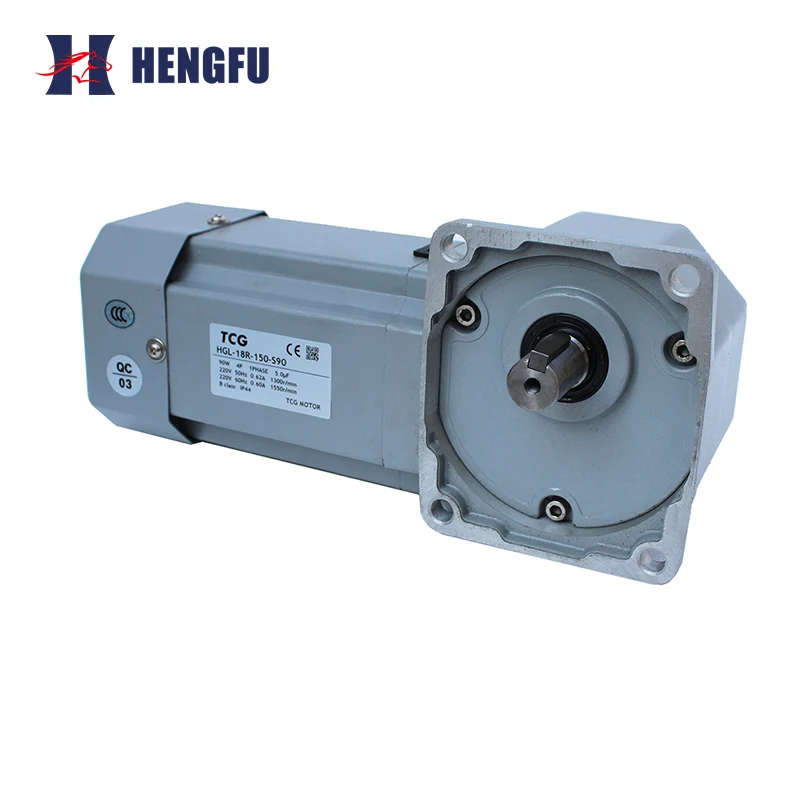

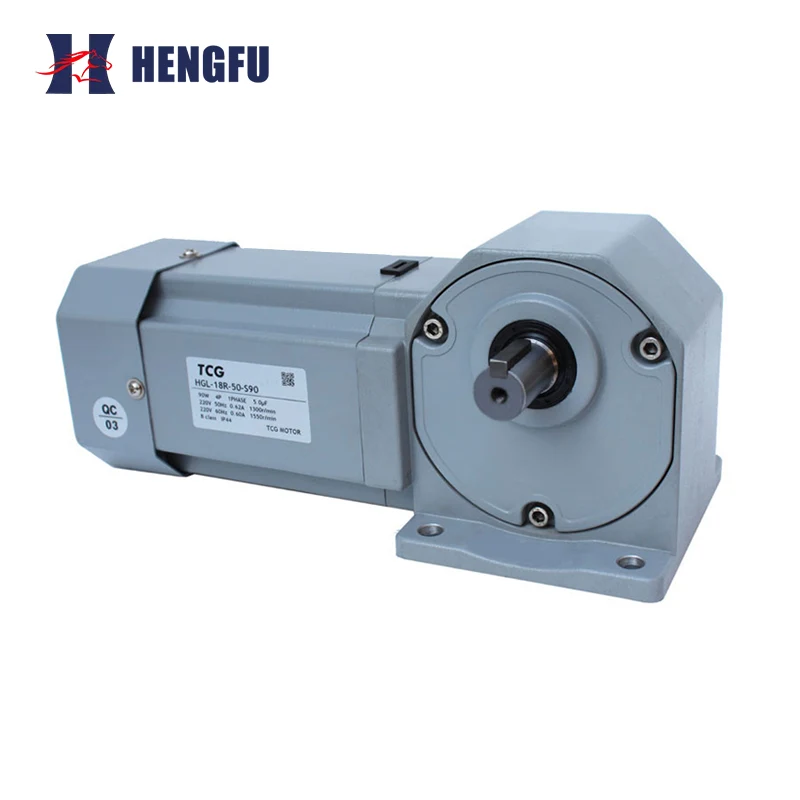

This Single Output Shaft Right Angle Gear Motor features a unique right-angle transmission structure, making it particularly suitable for mechanical equipment that requires changing the direction of transmission. Its core advantages lie in its high strength and long lifespan, while also boasting small size and low-carbon environmental friendliness.

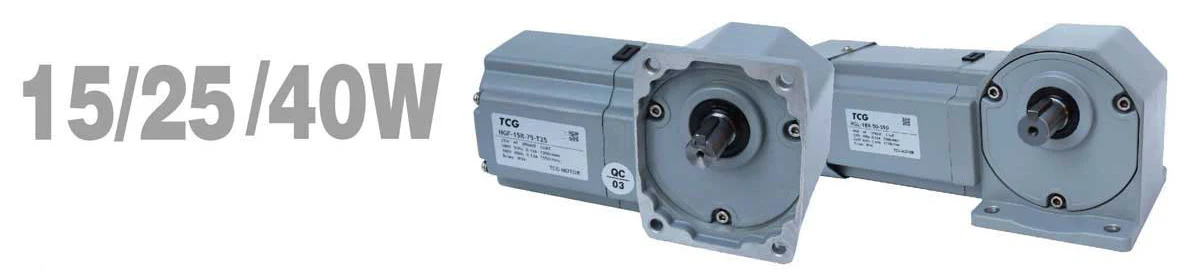

| Output Power (W) | Phase | Voltage (V) | Frequency (Hz) | Current (A) |
Capacity / Voltage μF/ VAC |
| 15 | 1-phase | 220 | 50/60 | 0.15/0.18 | 1.2/450 |
| 110 | 50/60 | 0.33/0.38 | 5/250 | ||
| 3-phase | 220 | 50/60 | 0.11/0.1 | —— | |
| 380 | 50/60 | 0.6/0.55 | —— |
| Output Power (W) | Phase | Voltage (V) | Frequency (Hz) | Current (A) |
Capacity / Voltage μF/ VAC |
| 25 | 1-phase | 220 | 50/60 | 0.22/0.26 | 1.5/450 |
| 110 | 50/60 | 0.48/0.56 | 6/250 | ||
| 3-phase | 220 | 50/60 | 0.24/0.22 | —— | |
| 380 | 50/60 | 0.14/0.12 | —— |
| Output Power (W) | Phase | Voltage (V) | Frequency (Hz) | Current (A) |
Capacity / Voltage μF/ VAC |
| 25 | 1-phase | 220 | 50/60 | 0.35/0.4 | 2.5/450 |
| 110 | 50/60 | 0.70/0.80 | 10/250 | ||
| 3-phase | 220 | 50/60 | 0.42/0.38 | —— | |
| 380 | 50/60 | 0.24/0.22 | —— |
The Single Output Shaft Right Angle Gear Motor, with its high rigidity and compact size, serves a wide range of industries with strict space and torque requirements:
Conveying and Warehousing: Logistics conveyor lines, automated warehouses.
Processing and Manufacturing: Printing machinery, packaging machinery, ceramic machinery, food machinery, machine tools, livestock farming equipment.
New Energy and Environmental Protection: New energy production equipment, environmental treatment equipment.
Other Fields: Fitness equipment, film and television equipment, stage lighting equipment.
Service Scale: Since its establishment, it has successfully served over 50,000 customers, earning an excellent market reputation.
Technological Accumulation: With over 20 years of experience in the industry, and relying on its "high efficiency and energy saving" product philosophy, it has established a leading position in the highly competitive field of transmission machinery.
Installation Guidance: Professional installation instructions are provided for single-shaft installations.
Technical Consultation: Selection support is offered to ensure motor and equipment compatibility.
Service Philosophy: "Service Wins Image," committed to providing customers with high-value, stable, and convenient value-added services.
Robust Packaging: Single Output Shaft Right Angle Gear Motors are packaged in industrial standard wooden crates or high-strength cardboard boxes, with special protection for the single-output shaft end to prevent damage during transportation.
Delivery Efficiency: Leveraging the core logistics advantages of the Pearl River Delta, standard models are shipped quickly, and customized requests are delivered on time according to the contract schedule.
Q1: What are the main features of the Single Output Shaft Right Angle Gear Motor?

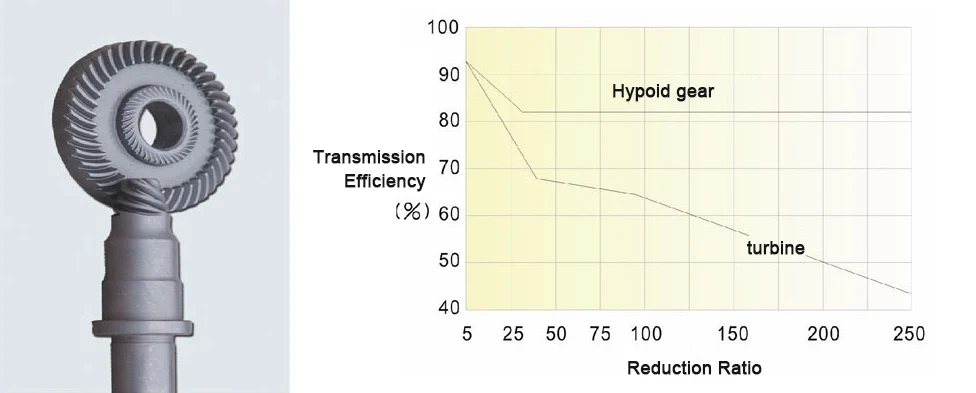

A: Main features include: high load capacity, long service life (precision-ground gears), compact size (saving installation space), and low carbon footprint and environmental friendliness (high transmission efficiency, energy saving).
Q2: In which industries is the motor mainly used?
A: The product is widely used in conveying, packaging, printing, food, chemical, and automated robotic arms industries.
Q3: What precautions should be taken during installation?
A: It is strictly forbidden to directly strike the coupling or pulley on the output shaft with tools, as this will damage the internal gears of the reducer. Please use professional installation tools or methods.
Q4: In what environment can the motor operate?
A: The motor is designed to operate in ambient temperatures ranging from -10℃ to +40℃ and relative humidity from 15% to 90% (non-condensing), with IC40 (free convection) cooling.
