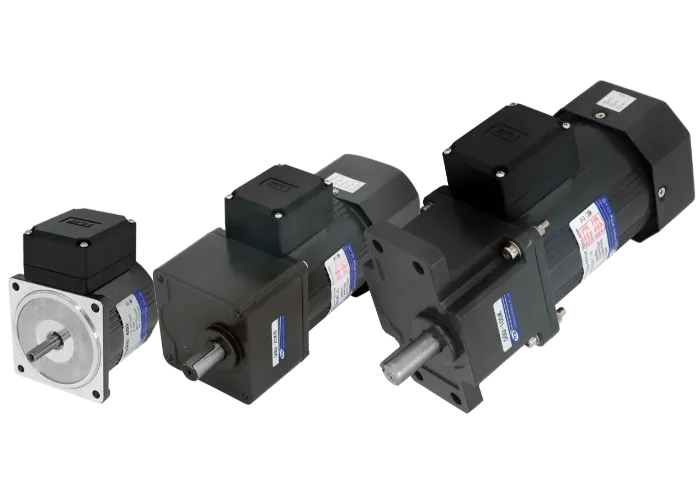

26 years of innovation in micro geared motor technology — the TCG TC Series has stood the test of time. First launched alongside the company’s foundation in 2000, the TC Series leverages solid technical expertise and consistent reliable performance. It delivers stable power for automation equipment across diverse industries, earning its reputation as a long-standing classic product in the sector.

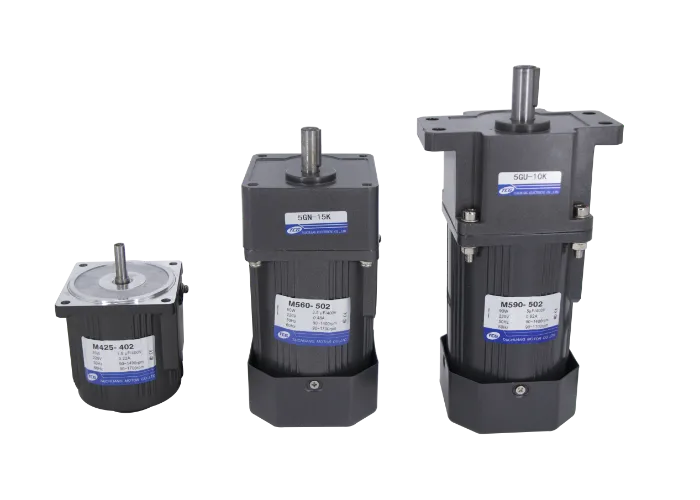

The TC Series consists of two categories: capacitor-run single-phase geared asynchronous motors and three-phase geared asynchronous motors. Both adopt an integrated structure combining motor and gearbox.
Users can achieve various output speeds simply by selecting gearboxes with different transmission ratios. No extra modification is required, greatly lowering equipment selection difficulty.
The core reduction mechanism adopts high-precision gear transmission, featuring smooth operation, low noise and low energy consumption.
Gears are precision-machined and heat-treated for outstanding wear resistance. They support long-duration continuous operation, effectively cutting maintenance frequency and downtime losses.
To accommodate power supply conditions of different operating environments, the TC Series offers both single-phase and three-phase versions.
The single-phase capacitor-run model features excellent starting performance, suited for single-power supply applications and widely used in small equipment and civil automation.
The three-phase variant delivers stronger power output and superior operational stability, designed for medium-to-large equipment such as industrial production lines and conveying & lifting systems.
Both versions come with built-in overheat protection. Under abnormal working conditions, the circuit will be cut off promptly to safeguard the motor from damage.
For wiring: single-phase motors support forward/reverse rotation switching; three-phase motors use standard U/V/W terminals for simple, standardized installation and commissioning.
The TC Series boasts a wide range of applications, covering ten major sectors: conveying machinery, lifting equipment, printing machinery, packaging machinery, medical devices, food machinery, electronics manufacturing, garment machinery, agricultural machinery and office automation. It serves as the transmission core for automatic and semi-automatic equipment.
Compact in size for easy integration and installation. Standardized interface design ensures good interchangeability. OEMs can quickly select matching units, while replacement and maintenance in later stages become simpler, reducing the total lifecycle cost of equipment.
TCG provides detailed user manuals and troubleshooting systems for the TC Series. For common issues including power tripping, induced voltage on housing, motor failure to start, and overheating at low speed, clear root-cause analysis and troubleshooting procedures are available to help customers diagnose and resolve problems rapidly.
We remind customers: match motor parameters strictly according to equipment specifications during model selection. Clearly state power rating, supply voltage, target speed or gear ratio when placing orders.
Reliable earthing is mandatory before installation and commissioning. Winding lead wires shall not bear external pulling force to guarantee electrical safety.
If product parameters are revised, feel free to contact us for up-to-date technical support.
With 26 years of technological accumulation, the TC Series has become TCG’s flagship product. Moving forward, TCG will keep focusing on micro transmission field. Through continuous process optimization and technological innovation, we provide robust power support for manufacturing industry upgrading.
