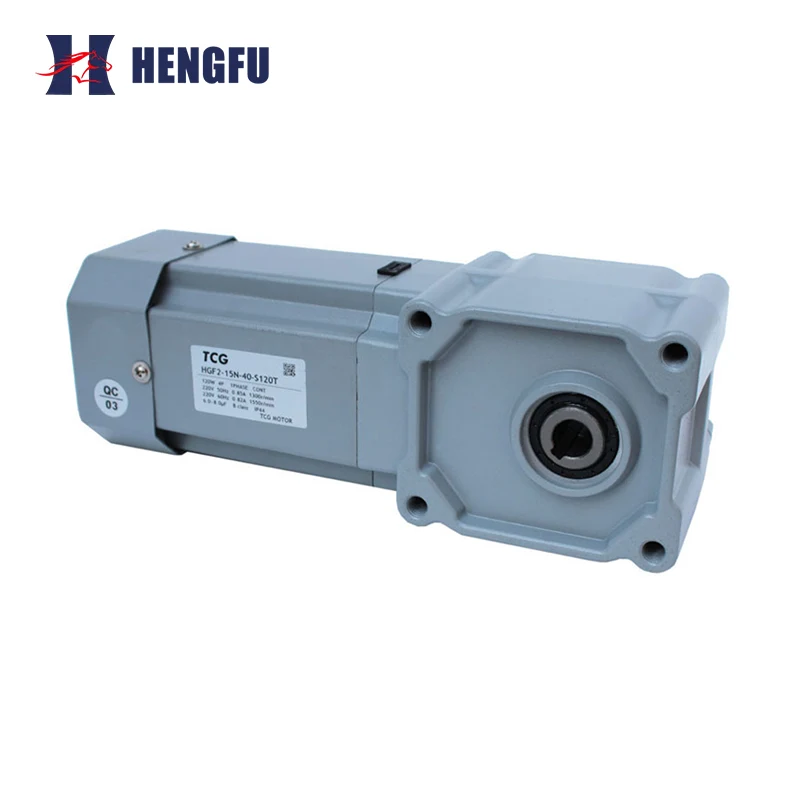

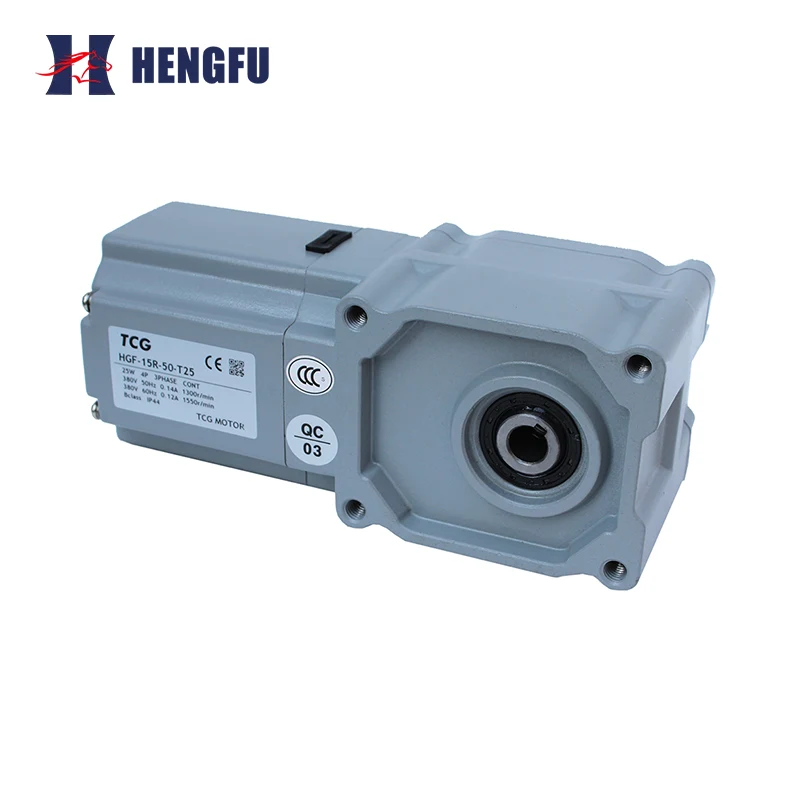

Hollow Shaft Right-Angle Gear Motor

This Hollow Shaft Right-Angle Gear Motor features a unique hollow shaft and double-flange design, making it particularly suitable for mechanical equipment where the motor needs to be directly mounted on the drive shaft or where space is limited. Its core advantages lie in keyless connection and high strength, along with its compact size and energy-saving and environmentally friendly characteristics.

This Hollow Shaft Right-Angle Gear Motor features a locking disc connection, making installation and disassembly extremely convenient; the motor can be installed without removing external transmission components. Furthermore, its input and output shafts are perpendicular at 90 degrees, effectively saving installation space. With high torque and smooth operation, it is an ideal compact power source for modern industrial automation equipment.

Applications

The Hollow Shaft Right-Angle Gear Motors hollow shaft reducers, with their keyless connection and compact size, are widely used in industries requiring easy installation: Light manufacturing: food packaging machines, printing machinery.

Conveying equipment: belt conveyors, logistics sorting lines.

Other fields: ceramic machinery, machine tools, automated warehouses.

Corporate Strength

Company Honors and Qualifications

Partner Brands

FAQ

Q1: What are the installation advantages of a Hollow Shaft Right-Angle Gear Motor?

A: The hollow shaft geared motor uses a locking disc connection, allowing it to be directly fitted onto the drive shaft of the equipment. Compared to a solid shaft, it is easier and faster to install and disassemble, eliminating the need to move external pulleys or couplings, significantly saving maintenance time.

Q2: What are the insulation and protection performance of the motor?

A: The motor uses Class F insulation, with an insulation resistance ≥20MΩ under normal conditions and high insulation strength (no breakdown at 1500V/1min). The protection rating is IP54/IP55, effectively preventing dust and water droplet intrusion.

Q3: What precautions should be taken during installation?

A: It is strictly forbidden to operate the motor with the junction box cover open. When installing the hollow shaft, please be sure to tighten the locking disc screws according to the instruction manual to ensure there is no relative slippage between the motor and the drive shaft.

Q4: In what environments can the motor operate?

A: The motor is designed to operate in ambient temperatures ranging from -10℃ to +50℃ and relative humidity from 15% to 90% (without condensation). The cooling method is IC40 (free convection).
