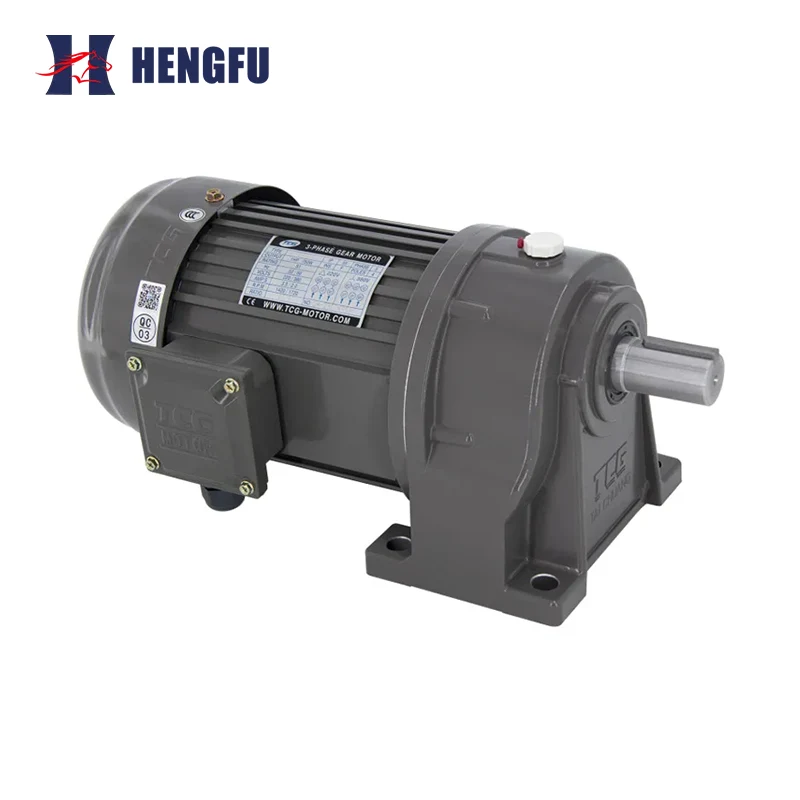

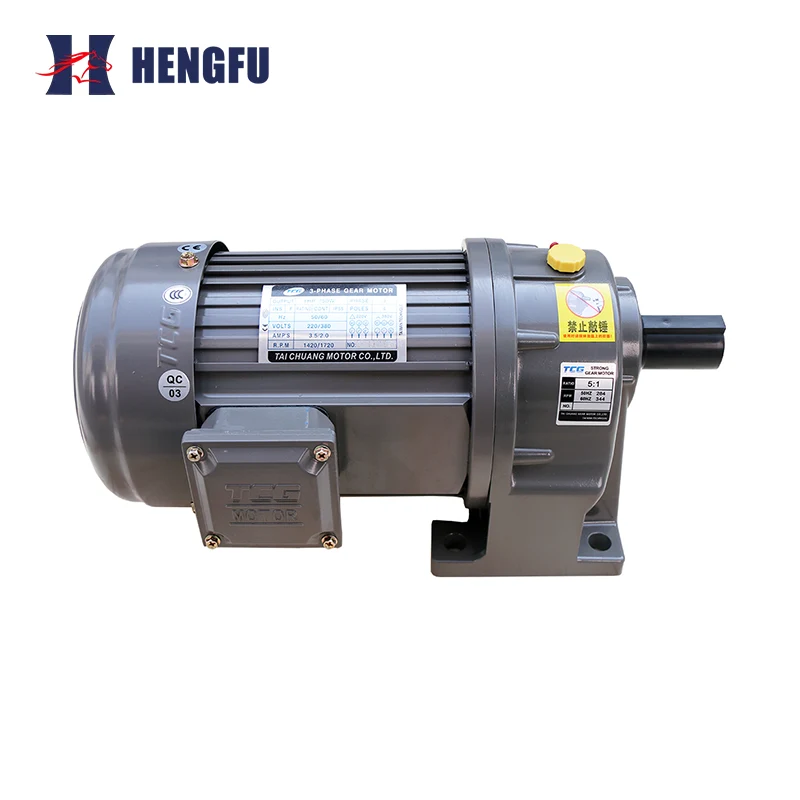

TCH Horizontal Gear Motor

The TCH Horizontal Gear Motor is a highly integrated power system designed for precision and durability in modern production lines. Combining a high-performance 4-pole asynchronous motor with a rugged gear reducer, this unit delivers exceptional transmission efficiency and stable torque output across multiple voltages (110V/220V/380V). Its core features precision-ground alloy steel gears that minimize backlash and noise, while the die-cast aluminum shell provides an IP55-rated barrier against dust and moisture. Compliant with IEC international standards, the TCH series supports extensive customization options, including electromagnetic brakes for rapid stopping and VFD compatibility for stepless speed control, making it a versatile choice for global industrial drive applications.

Technical Excellence

High-Precision Gearing:

Heat-treated alloy steel gears ensure 95%+ transmission efficiency and an extended service life.

Compact&Lightweight:

The high-strength aluminum alloy housing reduces machine weight while optimizing thermal conductivity.

Superior Protection:

IP55 protection and Class F insulation (up to 155°C) allow for reliable operation in humid or dusty factory environments.

Versatile Configurations:

Available in Single-Phase and Three-Phase with optional brake systems or frequency inverters.

Global Compliance:

All TCH gear motors meet IEC dimensions, ensuring 100% interchangeability for international equipment maintenance.

Technical Specifications

Applications

Corporate Strength

Company Honors and Qualifications

Partner Brands

FAQ

1. What types of motors do you offer?

We offer a wide range of motors including aluminum housing motors, gear reducers, brake motors, variable frequency motors, high-efficiency IE3 motors, and explosion-proof motors. Our products are suitable for industrial applications such as conveying, packaging, food processing, medical equipment, and automation machinery.

2. Can you provide OEM or customized motors?

Yes, we are a professional manufacturer with strong OEM/ODM capabilities. We can customize voltage, power, mounting type (B3, B5, B14, etc.), shaft material (stainless steel 304/316), special colors (RAL code), and add-ons like brakes, thermal sensors, or anti-condensation heaters to meet your specific project requirements.

3. What certifications do your motors have?

Our motors comply with IEC and GB standards. We provide CE, ISO9001, and CCC certifications. For explosion-proof series, we also support ATEX and IECEx upon request. All products are tested and certified to ensure safe and reliable export.

4. What is your lead time and shipping terms?

As a factory-direct supplier, our standard lead time is 15–25 days for bulk orders. Samples can be arranged within 7–10 days. We support FOB, CIF, and other shipping terms. We have stable logistics cooperation to ensure timely delivery worldwide.

5. How do you ensure product quality?

We operate under an ISO9001 quality management system. Each motor undergoes 100% testing before shipment, including no-load current, vibration, noise, insulation resistance, and high-voltage tests. We use high-quality components such as NSK/SKF bearings, pure copper windings, and premium silicon steel to ensure long-term reliability.

6. What is your warranty and after-sales support?

We provide an 18-month warranty from the date of shipment. Our technical team offers remote support, troubleshooting guidance, and spare parts supply. For large projects, we can also arrange on-site technical assistance if needed.
