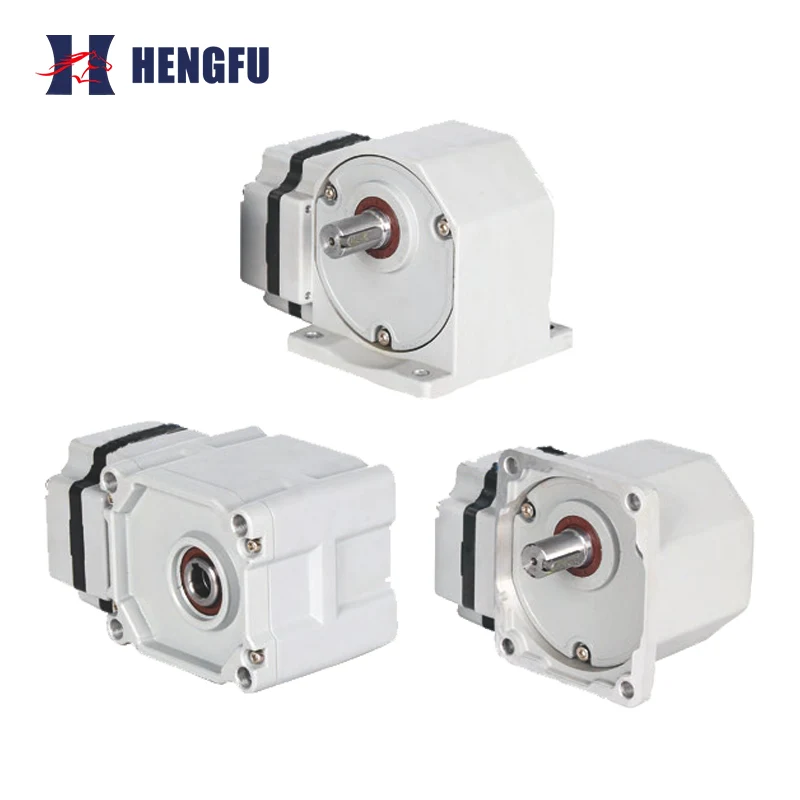

The Orthogonal Brushless DC Motors utilize high-performance permanent magnets, resulting in miniaturized, highly efficient, and energy-saving motors. Because they do not use carbon brushes, they are characterized by low noise and maintenance-free operation. They offer a wide speed control range, stable speed control, and are thin, lightweight, and high-powered, providing the convenient functions of speed-controlled motors.

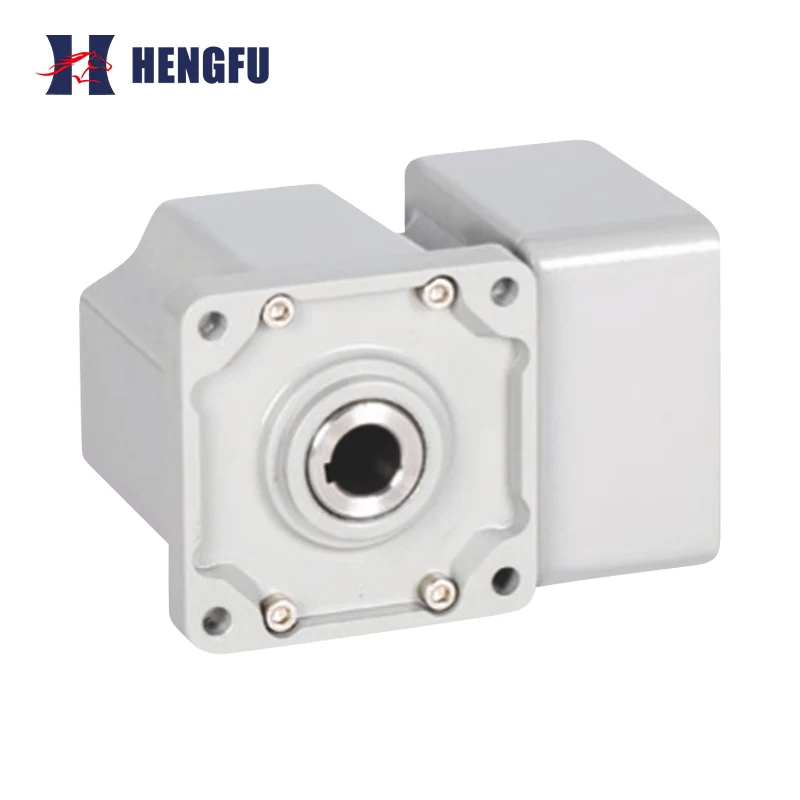

Utilizing a right-angle structure and high-performance permanent magnets, the TCG series achieves a slim, lightweight profile without sacrificing torque. It is the premier choice for equipment miniaturization where installation space is restricted.
By eliminating mechanical carbon brushes, we remove friction-related wear and sparking. This results in an extended service life and zero maintenance costs, significantly lowering the Total Cost of Ownership for end-users.
The TCG motor supports wide-range speed regulation with high stability. Fully compatible with PWM speed control and PID closed-loop systems, it ensures smooth operation from ultra-low to high RPMs, meeting the rigorous demands of CNC and robotic precision.
Engineered for maximum energy conversion (85%+ efficiency), our brushless design minimizes energy loss. Compared to traditional AC or brushed motors, it delivers higher power output within the same frame size, ideal for continuous-duty industrial cycles.
Equipped with high-precision dynamic balancing and premium bearings, the TCG motor operates with minimal acoustic noise and vibration. This makes it indispensable for noise-sensitive environments such as medical laboratories and office automation.
The stator coils are in direct contact with the high-thermal conductivity aluminum housing. This design, featuring reinforced cooling fins, ensures rapid heat dissipation and maintains low temperature rise even under heavy loads.
Spark-free operation makes it inherently safer for volatile environments. With IP55/IP65 protection ratings, the TCG motor is resistant to dust and water, performing reliably in harsh chemical, food processing, and outdoor applications.
Robotics & Automation: Precise AGV drive systems and robotic arms.
Medical Equipment: Silent surgical tools and laboratory automation.
Smart Home & Appliances: High-end kitchen appliances and smart furniture.
Industrial Machinery: CNC equipment and precision transmission systems.
Clean Energy: New energy vehicle components and food processing machinery.
1. Q: What are the main advantages of brushless DC motors?
A: Longer lifespan, lower maintenance, wide speed range (up to 1:100), constant torque output within rated speed, high efficiency (85%-95%), low noise, and spark-free operation.
2. Q: Does the motor support short-term overload?
A: Yes. It features continuous operation zone for long-term running and short-term operation zone for acceleration/deceleration, providing higher instantaneous torque when needed.
3. Q: Can you customize the motor?
A: Yes. Customization includes shaft size, mounting flange, voltage, power, protection rating (IP54), encoder, brake, and communication protocols (Modbus, CANopen).
4. Q: Are your motors certified? What is the warranty?
A: Standard models are CE certified and RoHS compliant. We offer a 12-month warranty covering manufacturing defects.
5. Q: Can I get a sample?
A: Yes. Samples are available. Sample cost is charged at factory price and refundable upon reaching bulk order quantity.
6. Q: What is the lead time?
A: Samples: 5-10 working days. Bulk orders (within 100 units): 15-25 working days.
