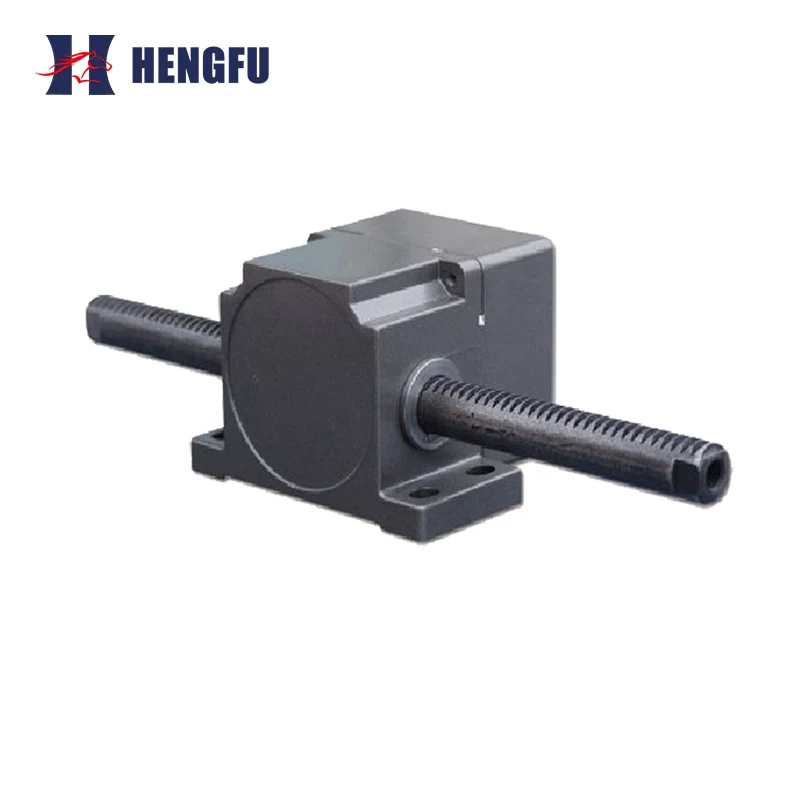

This Vertical Inline Gear Reducer Gearbox is the ideal "buffer" connecting the motor and equipment, protecting expensive equipment from impacts while allowing your machine to operate efficiently in limited spaces through precise gear ratio matching.
Speed Reduction & Torque Increase: Reduces the motor's ultra-high speed while amplifying the output torque by tens to hundreds of times to meet heavy-load requirements.

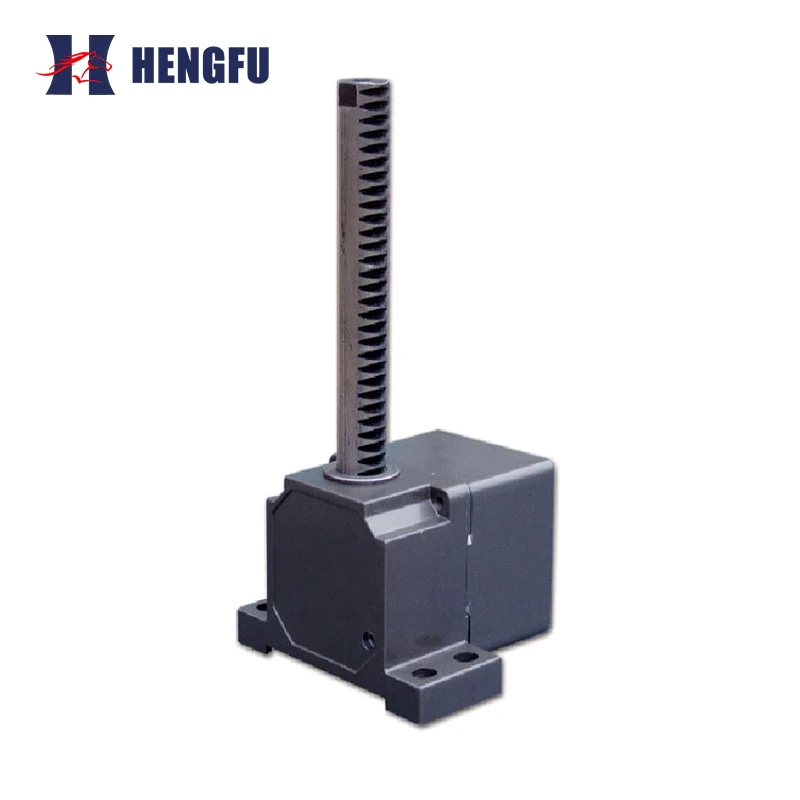

Directional Change & Direct Thrust: The unique vertical layout enables "right-angle turns" in power, saving space; special models can directly output linear thrust, eliminating the need for complex connecting rods.
Space Magician: The compact vertical structure design saves floor space, making it particularly suitable for equipment with limited internal space.
Tough and Robust: The core gears undergo special heat treatment, resulting in extremely high hardness and exceptional wear and impact resistance, ensuring a long service life.
High Efficiency & Quiet Operation: Extremely high transmission efficiency (energy saving) and smooth operation with extremely low noise.
Modular Design: Supports modular assembly; maintenance only requires replacing damaged modules, significantly reducing long-term maintenance costs.

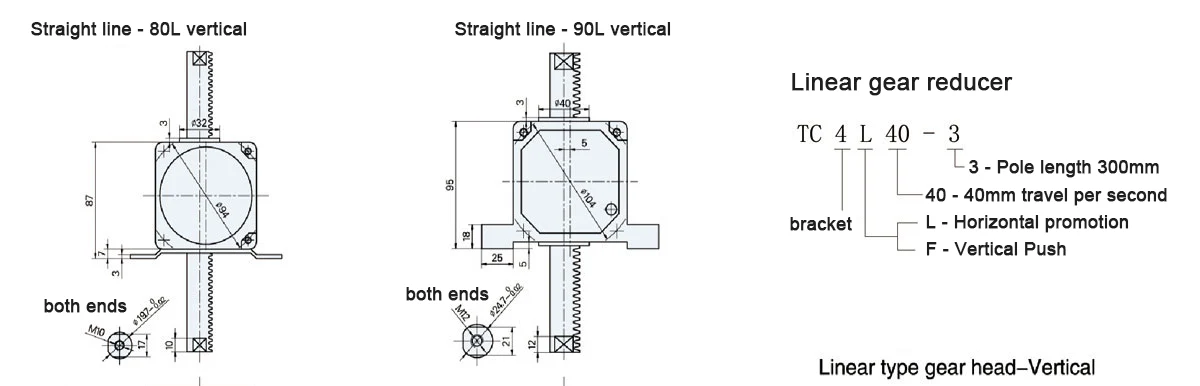

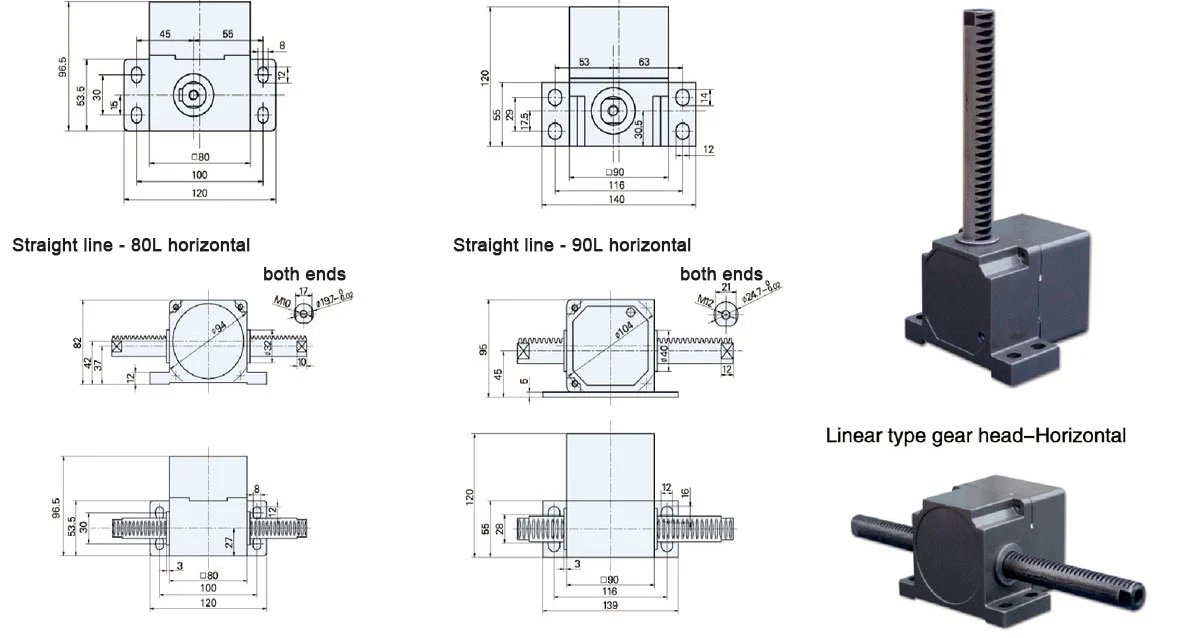

| Frame size 80 | ||||||||||
| speed ratio | 15 | 20 | 25 | 30 | 36 | 50 | 75 | 100 | 120 | 150 |
| Rack speed(mm/s) | 96 | 72 | 59 | 48 | 40 | 29 | 19 | 15 | 12 | 10 |
| Frame size 90 | ||||||||||||
| speed ratio | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | 130 | 150 |
| Rack speed(mm/s) | 100 | 81 | 65 | 52 | 40 | 32 | 26 | 21 | 18 | 16 | 12 | 11 |
| Type | Max.handlingquality (kg) | Rackeffectivetravel (mm) | Framesize | Power (W) |
| 80L(F) | 70 | 100~700 | 80 | 25 |
| 90L(F) | 140 | 100~1000 | 90 | 40~120 |
Our Vertical Inline Gear Reducer Gearbox is widely used in industrial applications with stringent space and power requirements: Heavy Industry and Infrastructure: Cement mills, mining ball mills, port cranes, crushers.
General Industrial Equipment: Various conveyor belts, mixers, cooling towers, fans, pumps, etc.
Automation and Light Industry: Medical equipment, food packaging machinery, textile machinery.
Q1: Why does a Vertical Inline Gear Reducer Gearbox need to be installed on a solid foundation?
A: Vertical Inline Gear Reducer Gearboxes generate significant torque and reaction force during operation. If the foundation is uneven or unstable, it will cause severe vibration, leading to premature gear wear or even failure. Therefore, a solid foundation is essential.
Q2: How to calculate the required gearbox torque?
A: The core formula is: Torque (T) = 9550 × Power (kW) ÷ Output Speed (rpm).
Note: The calculated torque needs to be multiplied by a safety factor (1.2-1.5 for stable loads, 1.5-2.0 for impact loads), and the gearbox's rated torque must be greater than this result, with a 20%-30% margin.
Q3: What precautions should be taken when operating at full load for extended periods?
A: Heat dissipation is crucial. If the equipment runs continuously for 24 hours, it is recommended to select a cooling fan or cooling water pipes to prevent excessive oil temperature from burning out the seals. Additionally, models with heat sinks or forced air cooling must be used.
Q4: What should I do if the Vertical Inline Gear Reducer Gearbox makes abnormal noises or becomes very hot to the touch?
A: This is a malfunction warning. Please stop the machine immediately and check. Possible causes include: loose foundation, insufficient oil or use of inferior oil, and wear of internal parts.
Q5: Are there any special requirements for use in the food or pharmaceutical industries?
A: A stainless steel casing that meets hygiene standards must be used, and food-grade lubricating oil must be added to ensure a safe and pollution-free production environment.
