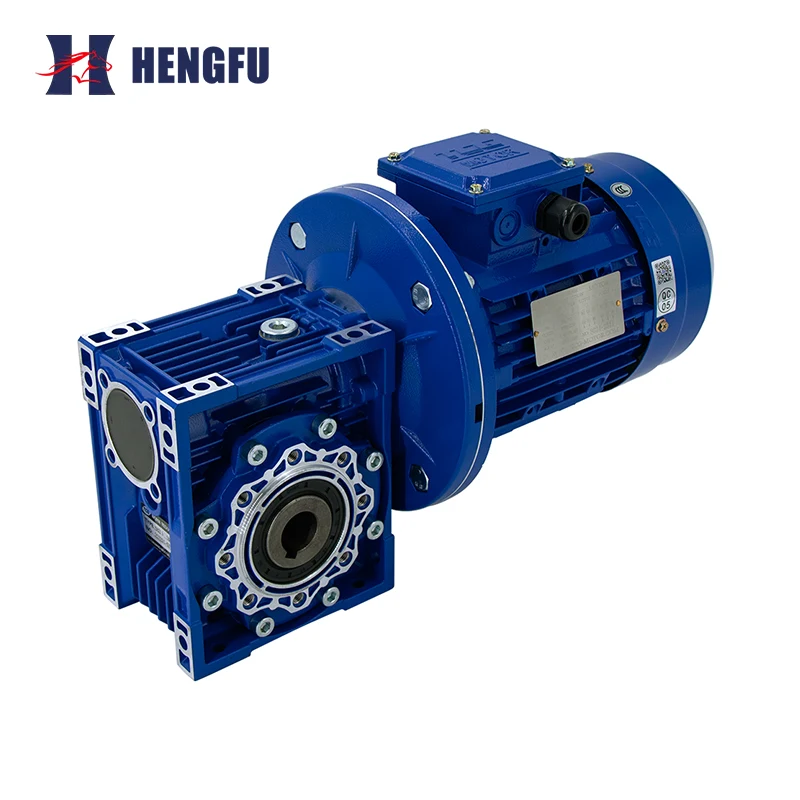

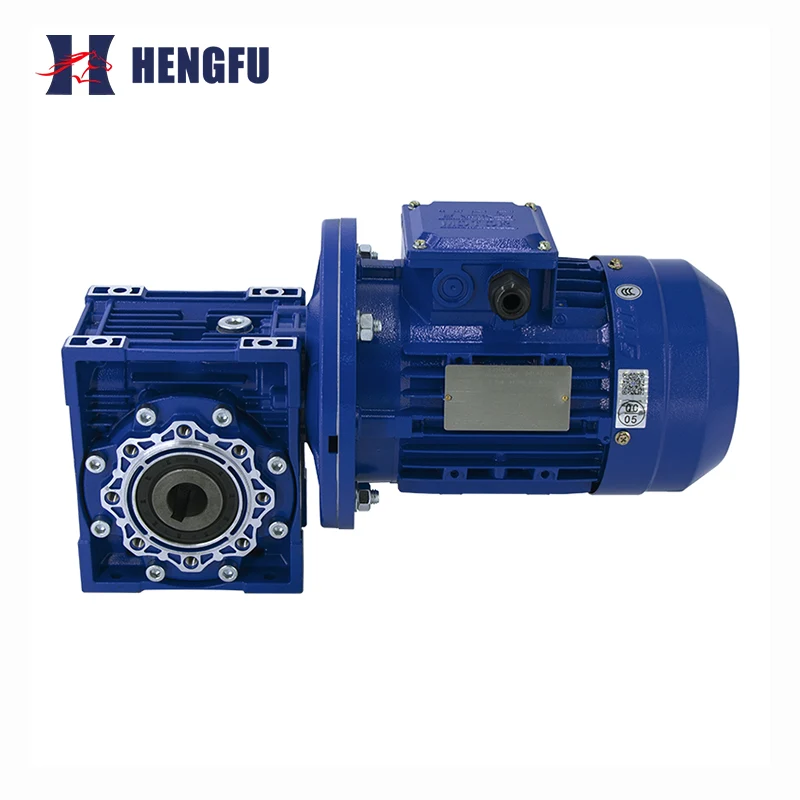

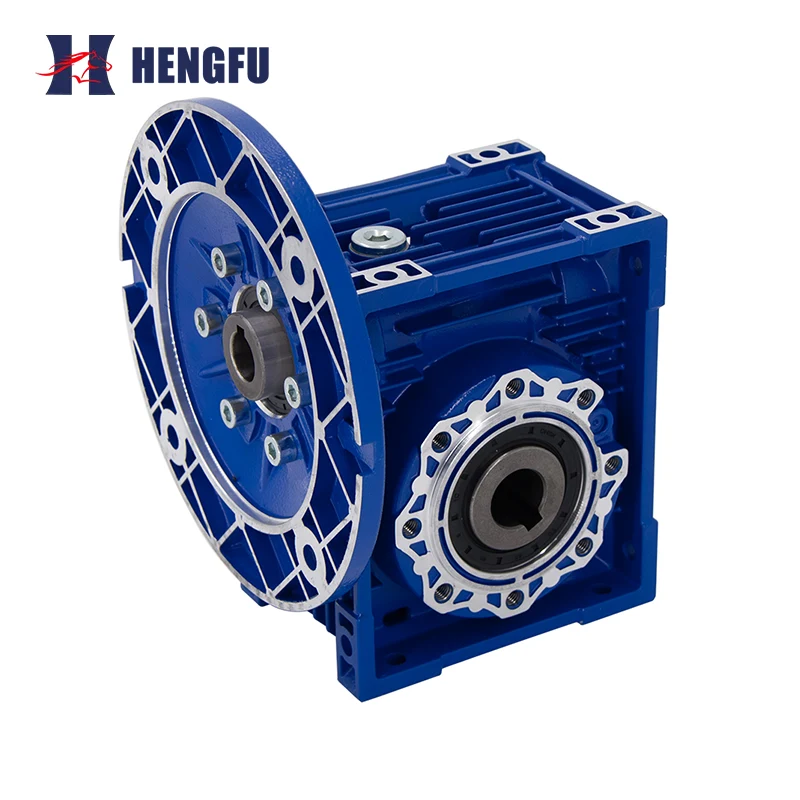

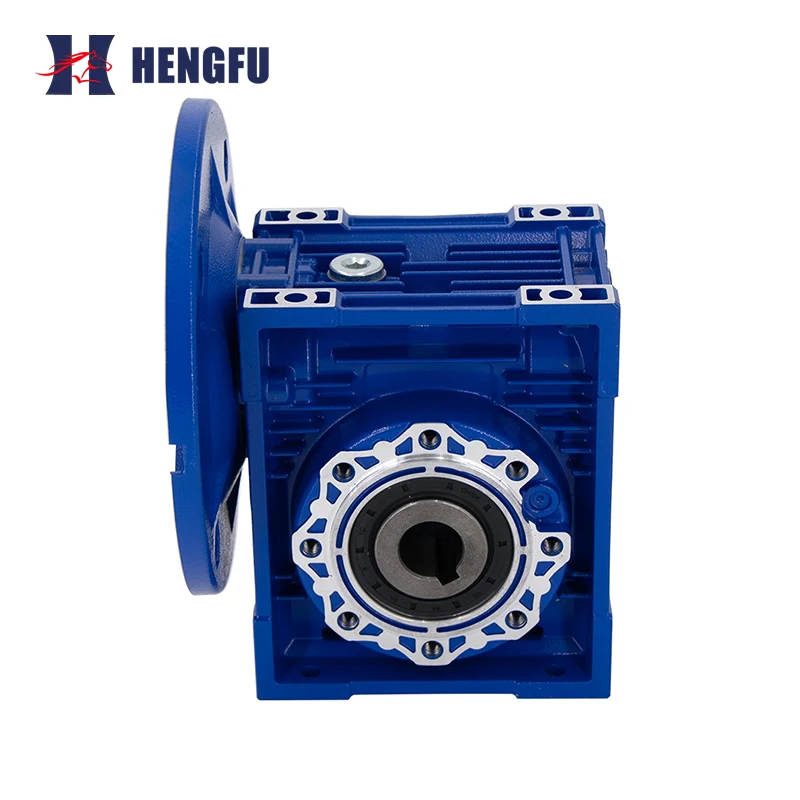

Worm Gear Reducer

Precision Structure and Excellent Heat Dissipation: Worm Gear Reducer's enclosure is made of high-quality die-cast aluminum alloy with ample cooling fins, offering excellent heat conduction and a large heat dissipation area, effectively extending its service life.

Quiet and Stable Operation: The Worm Gear Reducer uses a precision-ground, hardened-tooth-surface drive worm gear, resulting in low-noise and smooth operation, suitable for environments with high environmental requirements.

Robust and Durable: The worm gear is made of 20Cr steel, treated with carbonitriding, achieving a tooth surface hardness of HRC60; the worm wheel is made of special wear-resistant nickel bronze, offering strong wear resistance.

Omnidirectional Installation: Adaptable to all-around universal installation configurations, the terminal block and enclosure are integrally die-cast aluminum alloy, ensuring excellent sealing and preventing dust and leaks.

Specifications

NMR WORM GEAR REDUCER SERIES

GENERAL INTRODUCTION

Structure features

-High quality die casting aluminum alloy housing,suitable for universal mounting.

-Heat sink design for cooling provides great surface area and higher thermal capacity than the casting iron housings

-025 to 150.with power scope from 60w to 15kw

-Larger speed ratio range.each single frame size has 12 ratios from 5:1 to 100:1.

-Hardened worm with fne grinding has the features of higher efficiency and big output torque.

-Low noise and stably running. can adapt long term work condition in terrible environments.

-Light weight,high mechanical strength.

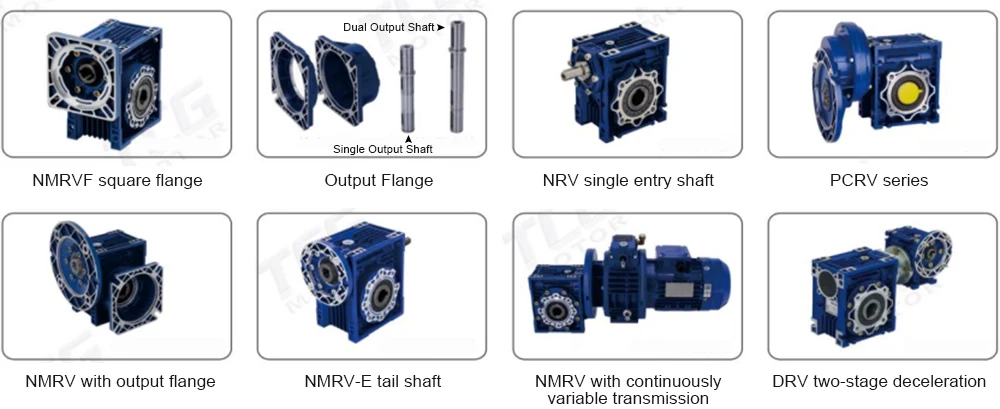

-Modularization combination PCRV & DRV extend the ration of RV reducers from i=5:1 to 3200:1.

MAIN MATERIALS

-Hlousing: die-castaluminum alloy(frame size: 025up to 90):cast iron(frame size: 110to 150)

-Worm: 20Cr steel,carburization and nitriding treatment (the hardness of tooth is HRC60 and the thickness of harden.Layer is over 0.5mm after precise grinding)

-Worm wheel: special wearable nickel bronze alloy

SPRAY MOLDING / PAINT

-Aluminum alloy housing:

①shot blasting and special antiseptic treatment on the aluminum alloy surface

②after phosphating. coated with blue RAL5010 baking finished.

-Cast-iron housing:painted with RAL5010 blue baking finished

EFFICIENCY

Efficiency is an important indicator of a reducer, which depends on the design, manufacturing, and friction condition of the worm gear transmission pair. Due to the different friction characteristics of the gearbox in operation and at rest, the efficiency of the gearbox can be classified into dynamic efficiency and static efficiency.

LUBRICATION

RV REDUCER LUBRICATION VOLUME

-Lubrication volume for R V is related with mounting position of reducer.

-All stock of RV reducers are filled with WA320 lubrication according to B3 mounting position, if the mounting position is different from B3, a special indication is required.

LUBRICATION VOLUME (LITRE)

LUBRICATION VOLUME OF PC HELICAL GEAR MODULAR

-Lubrication of PC helical reduction modular is apart from lubrication of reducers. lubrication and the volume is irrespective with the mounting positions of PC.

-PC helical reduction modular is filled with lubrication WA680 before shipment

LUBRICATION VOLUME(LITRE)

SELECTION OF LUBRICATION

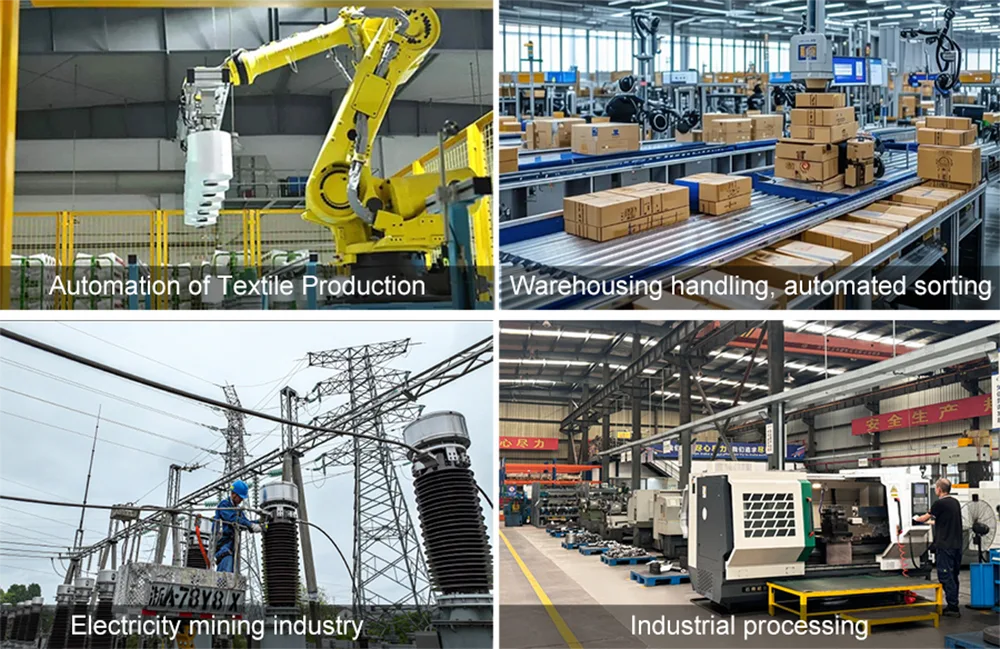

Applications

Due to its low noise, high stability, and excellent corrosion resistance, Worm Gear Reducer is widely used in the following fields:

Automation equipment: Robots, conveyor belts, packaging machinery.

General industry: Food processing machinery, pharmaceutical machinery, printing machinery, chemical machinery.

Special environments: The aluminum alloy surface undergoes special anti-corrosion treatment, resisting corrosion from organic solvents such as gasoline and xylene, making it suitable for chemical and special solvent environments.

Factory Strength

Standard Manufacturing: Manufactured in strict accordance with European (IEC) standards and IM international standards to ensure international compatibility.

Advanced Processes: Employing advanced aluminum alloy die-casting technology and precision grinding processes to ensure the accuracy and quality of every product.

Material Control: Rigorous selection of raw materials; the worm gear undergoes carbonitriding treatment to ensure a hardened layer thickness >0.5mm, guaranteeing transmission efficiency.

Company Honors

Hengfu: Possesses mature experience in manufacturing motors and gearboxes.

Excellent Interchangeability: Products exhibit excellent interchangeability and have gained widespread market recognition.

Quality Certification: Products comply with international quality management system standards.

After-sales & Service

Technical Support: We provide professional selection guidance and installation technical support.

Quality Assurance: Products undergo rigorous testing before leaving the factory to ensure trouble-free operation.

Maintenance Recommendations: We recommend that users replenish or replace the specified type of lubricating oil (WA320/WA680) promptly according to the installation location to maintain optimal efficiency.

Packaging & Shipping

Packaging: Standard wooden crates or cardboard boxes are used to ensure safe and undamaged transport.

Delivery Time: Sufficient stock of common models ensures fast shipping after order placement.

Export Standards: Packaging services that meet international shipping standards are provided for exported gearboxes.

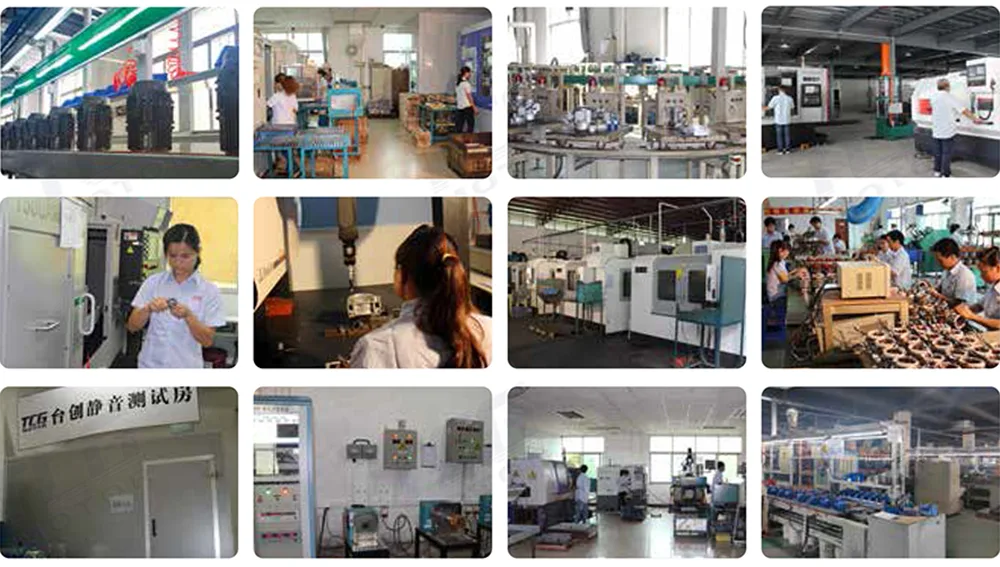

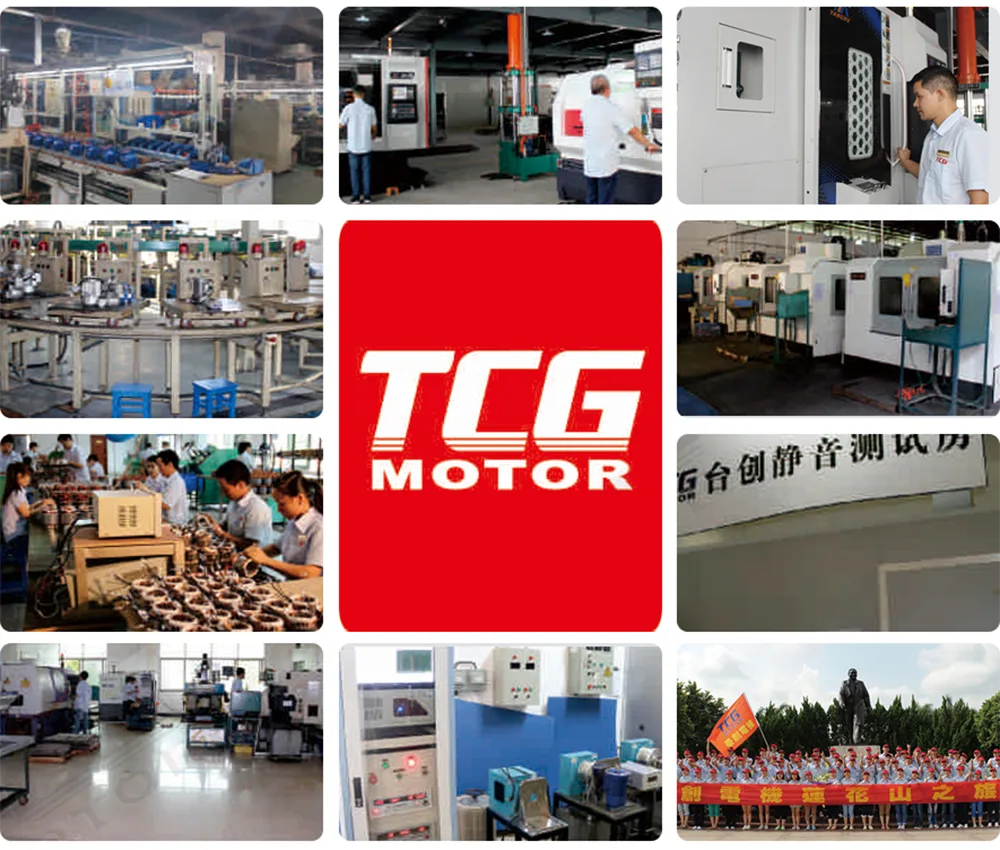

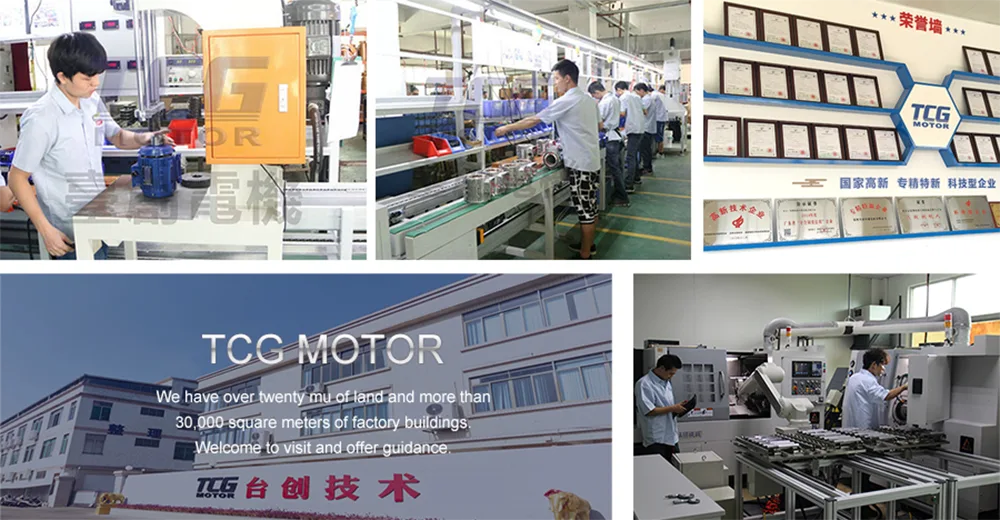

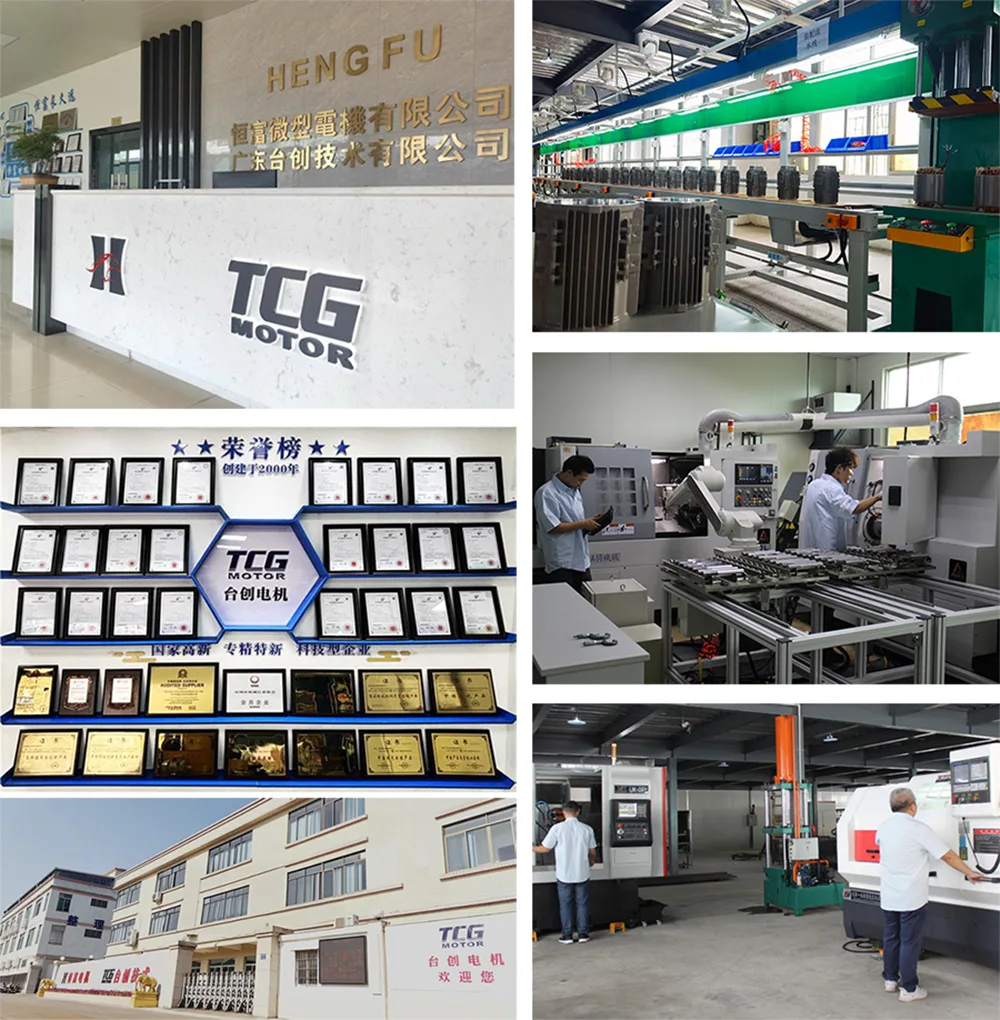

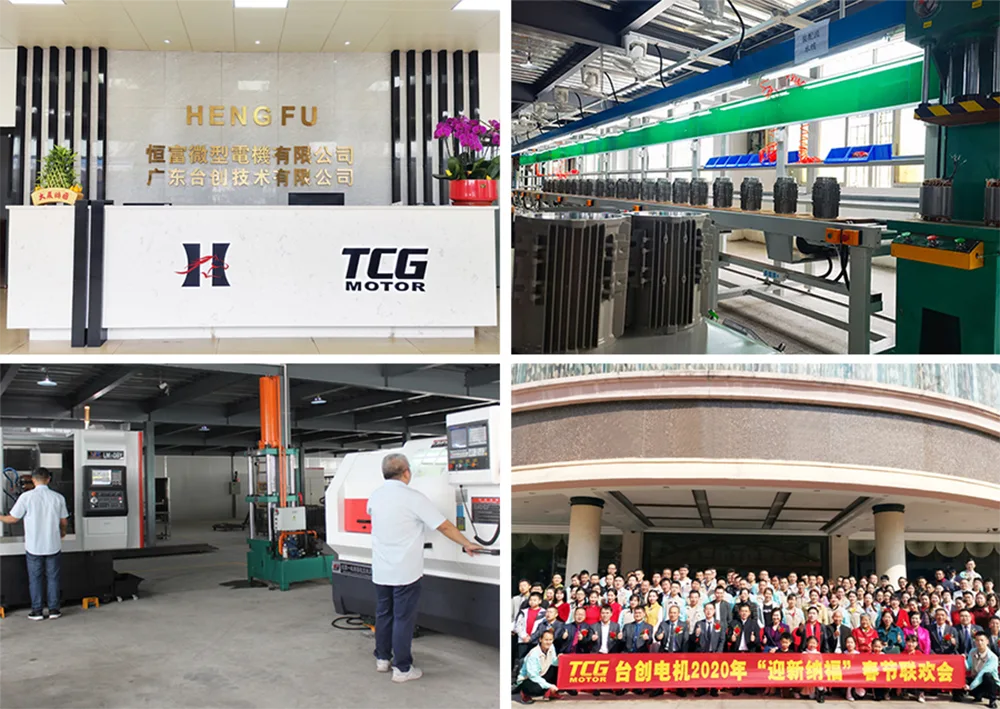

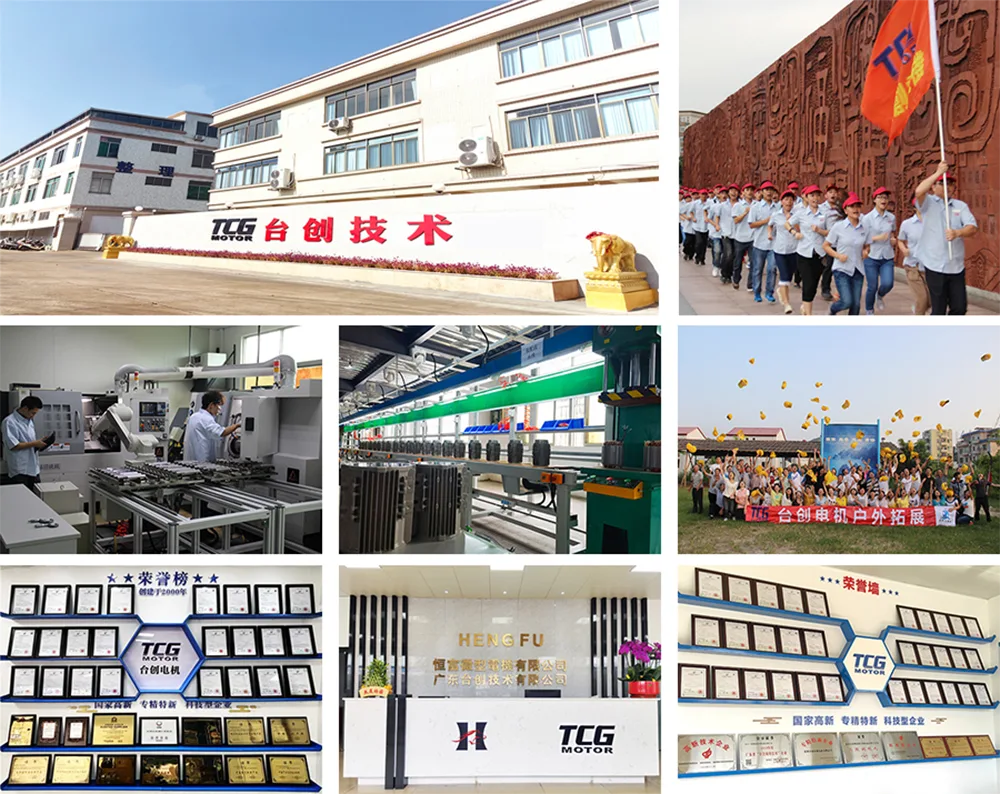

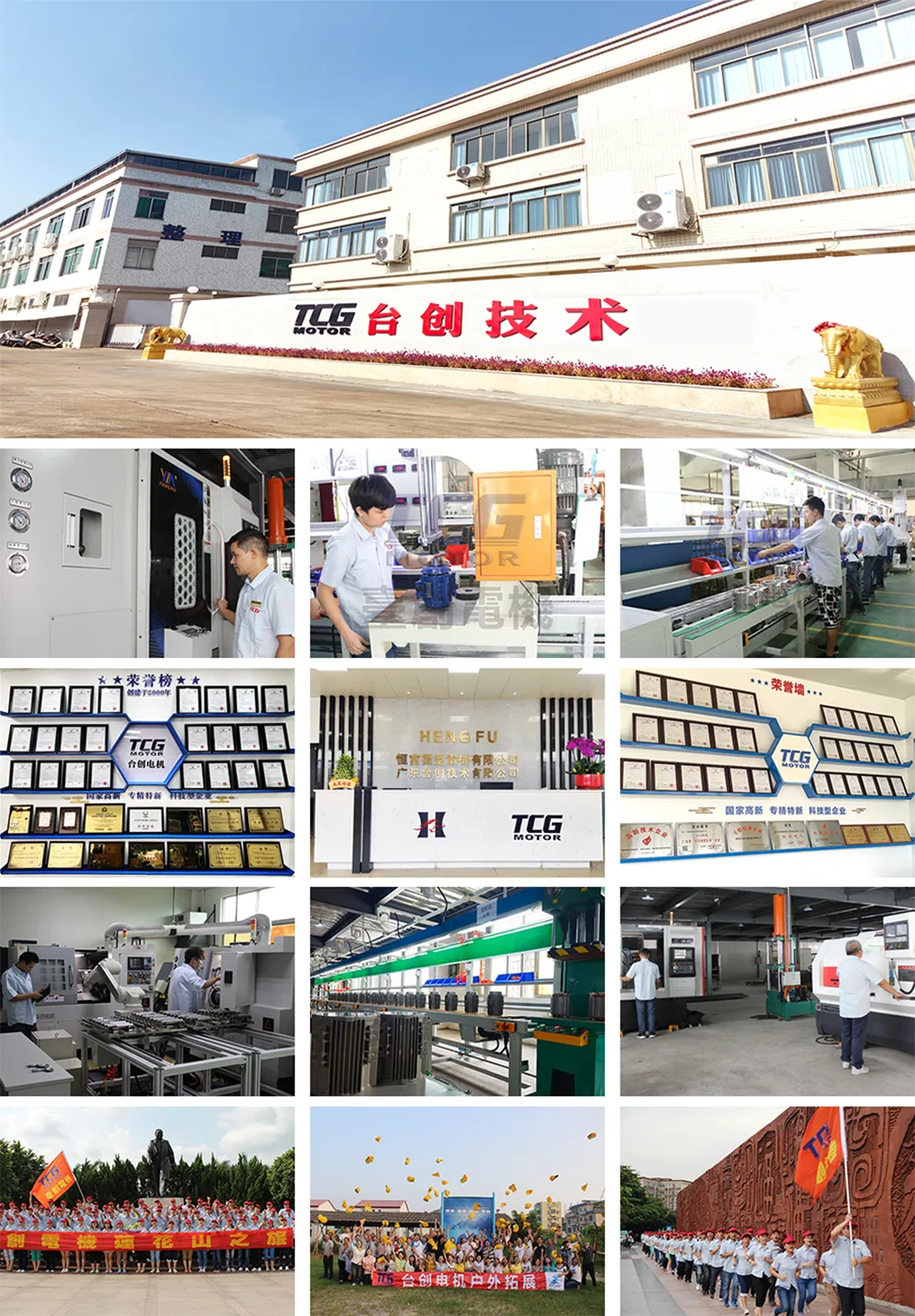

Corporate Strength

Partner Brands

FAQ

Q1: Can this Worm Gear Reducer be used in highly corrosive environments?

A: Yes. The aluminum alloy body undergoes shot blasting and special anti-corrosion treatment, maintaining its silvery-white alloy appearance and resisting corrosion from organic solvents such as gasoline and xylene.

Q2: What type of oil is used in the Worm Gear Reducer at the factory?

A: RV Worm Gear Reducers are supplied with WA320 lubricating oil by default for the B3 installation orientation; PC helical gear modules are supplied with WA680 lubricating oil.

Q3: What should I do if my installation method is not B3?

A: The amount of lubricating oil in the RV Worm Gear Reducer depends on the installation orientation. If the installation method differs from B3, it must be specified when ordering so that the manufacturer can adjust the oil quantity or provide corresponding guidance.

Q4: How efficient is this gearbox?

A: Efficiency is an important indicator, depending on the design and friction conditions of the worm gear transmission pair. The product uses a hardened tooth surface transmission worm, which is highly efficient and maintains stable friction characteristics under both dynamic and static conditions.
