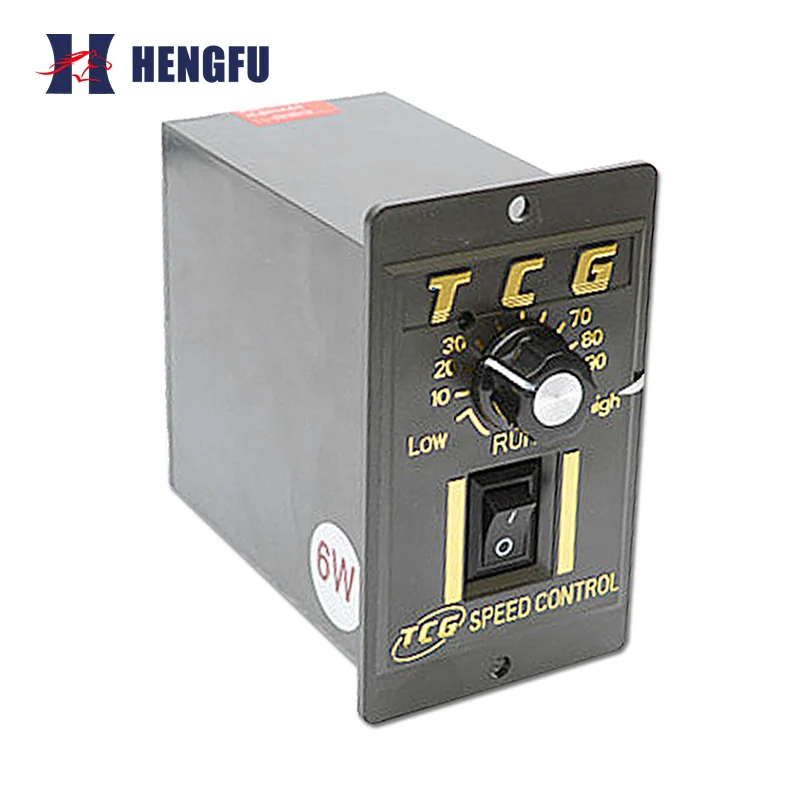

Motor Speed Controller

This Motor Speed Controller is divided into two series, each with different functions and advantages.

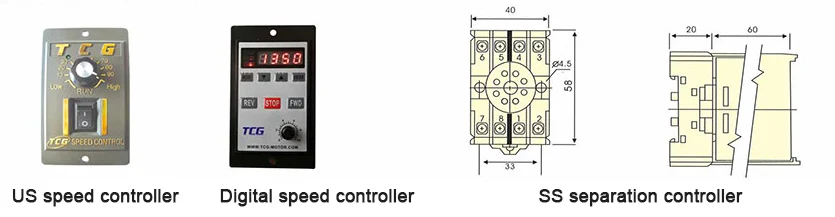

SS Split-Type Speed Controller Series

Function: Utilizes a split-type design, separating the control unit from the operation panel.

Advantage: Extremely flexible installation, particularly suitable for scenarios with limited space inside the control cabinet but requiring the operation panel to be installed externally, facilitating heat dissipation and maintenance.

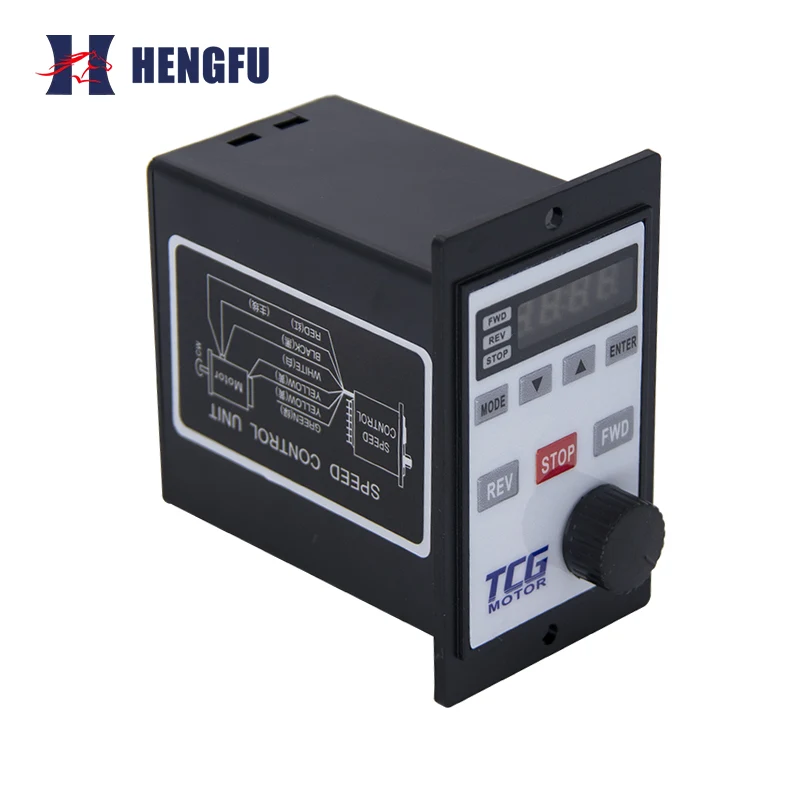

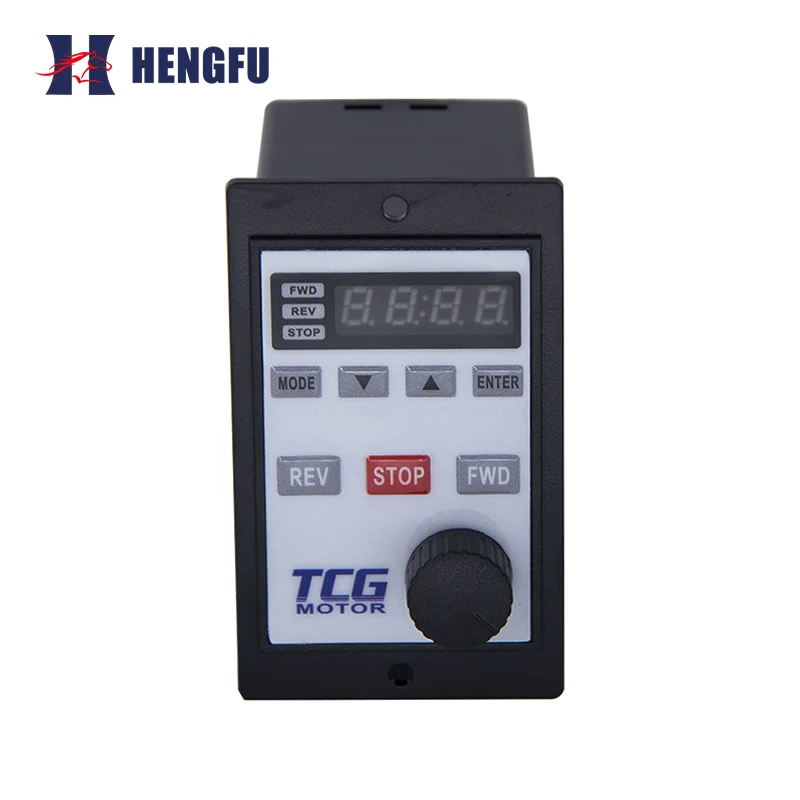

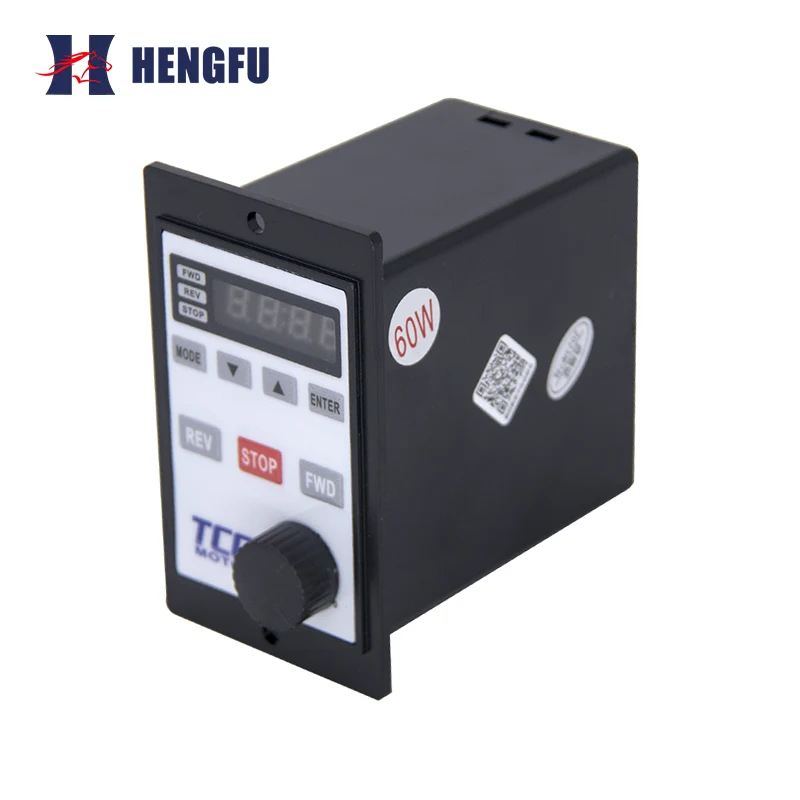

SK Intelligent Digital Display Speed Controller Series

Function: Built-in intelligent detection function, supports digital display panel (UX/US series optional).

Advantage: Able to display motor speed in real time and precisely adjust via feedback signals, providing a more intuitive operating experience and more stable control accuracy.

Specifications

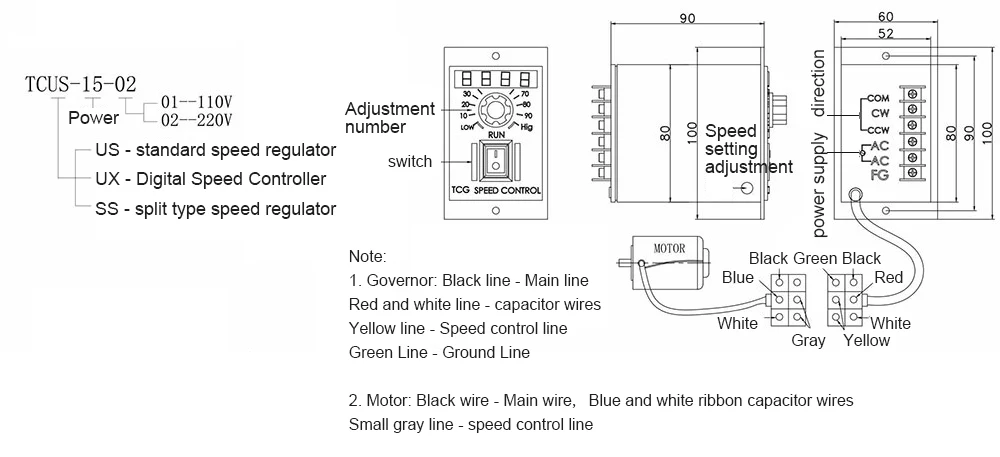

Control Box Dimension Chart

Feature

Governor model description

Applications

Motor Speed Controllerrs are widely used in the following industries:

Textile machinery: Spinning machines, weaving machines, and other equipment requiring precise tension control.

Packaging machinery: Sealing machines, packing machines, conveyor belt systems.

Automated production lines: Assembly line conveyors and assembly equipment.

Food processing: Mixers, conveyor belts, etc.

Printing equipment: Synchronous control of roller speeds.

Factory Strength

Professional R&D: We have a professional motor control technology R&D team that continuously optimizes speed control algorithms.

Strict Quality Control: All products undergo rigorous aging tests and functional tests before leaving the factory to ensure the stability of every device.

Complete Model Range: We offer a full range of solutions, from standard (US) to digital display (UX) and split-type (SS) models.

After-sales Service

Warranty Policy: A standard 18-month warranty is provided (excluding damage caused by human error).

Technical Support: Detailed wiring diagrams and user manuals are provided, and a professional team is available online to answer technical questions.

Return and Exchange Guarantee: Returns and exchanges are supported within 7 days of receipt if quality issues (excluding damage caused by human error) are found.

Company Honors and Qualifications

Partner Brands

FAQ

Q1: What voltages does this Motor Speed Controller support?

A: Depending on the model, the TCG speed controller supports both AC110V (suitable for some overseas equipment) and AC220V (common in China). Please confirm your motor and power supply voltage before purchasing. The model suffix "01" usually represents 110V, and "02" represents 220V.

Q2: Are there any requirements for the operating environment?

A: To ensure the lifespan of the equipment, it is recommended to use it in an ambient temperature range of -10℃ to +40℃, and the ambient humidity should be less than 85%RH. Avoid long-term operation in humid, dusty, or corrosive environments.

Q3: Can the product detect motor speed?

A: Yes. According to the documentation, this Motor Speed Controller has a "detection device coding" function, which can collect the motor speed feedback signal to achieve closed-loop control and ensure that the motor speed remains stable when the load changes.

Q4: Is the wiring complicated?

A: We provide detailed terminal function definitions (such as forward, reverse, common terminal, etc.). For standard single-phase motors, wiring is very simple. If you are unsure how to wire, please contact our technical support for a wiring diagram.
