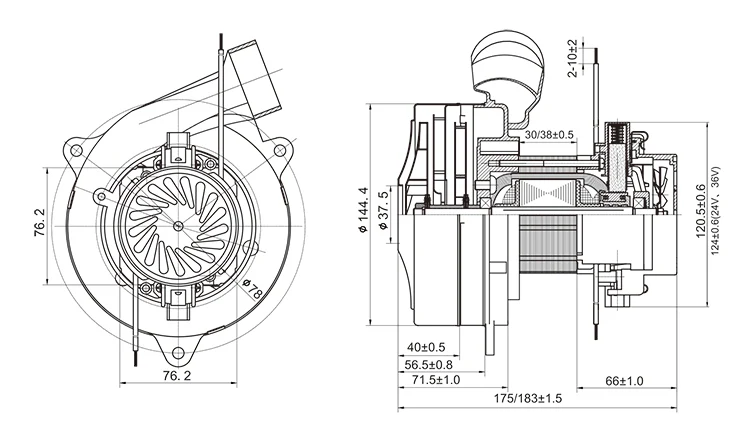

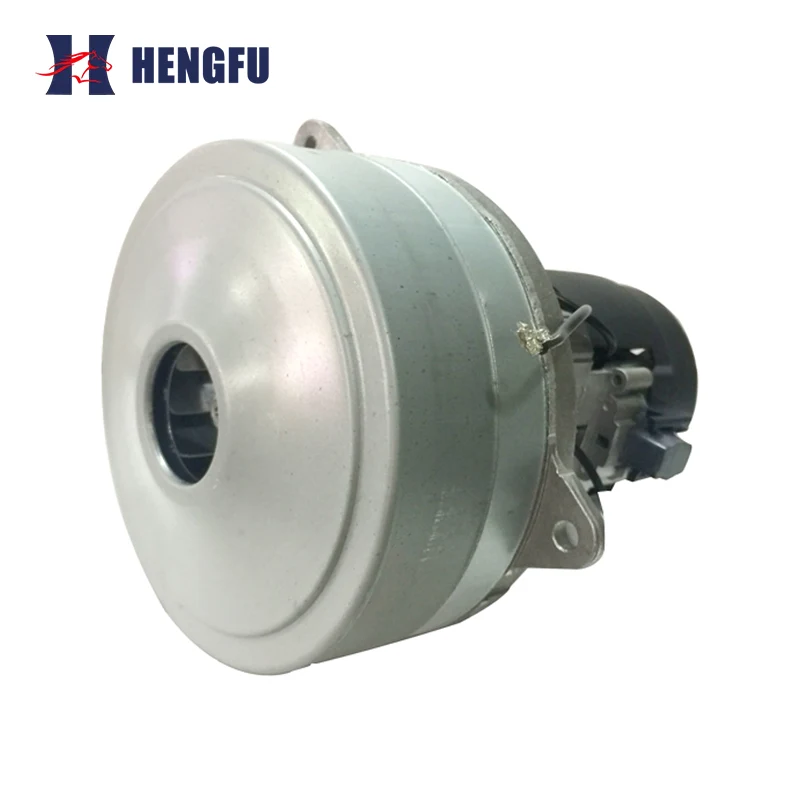

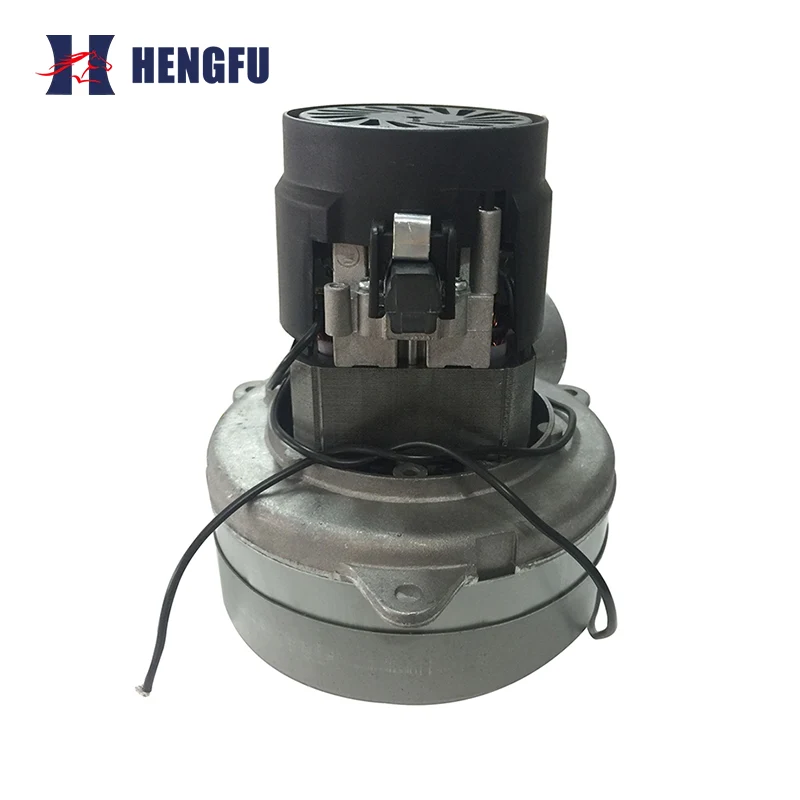

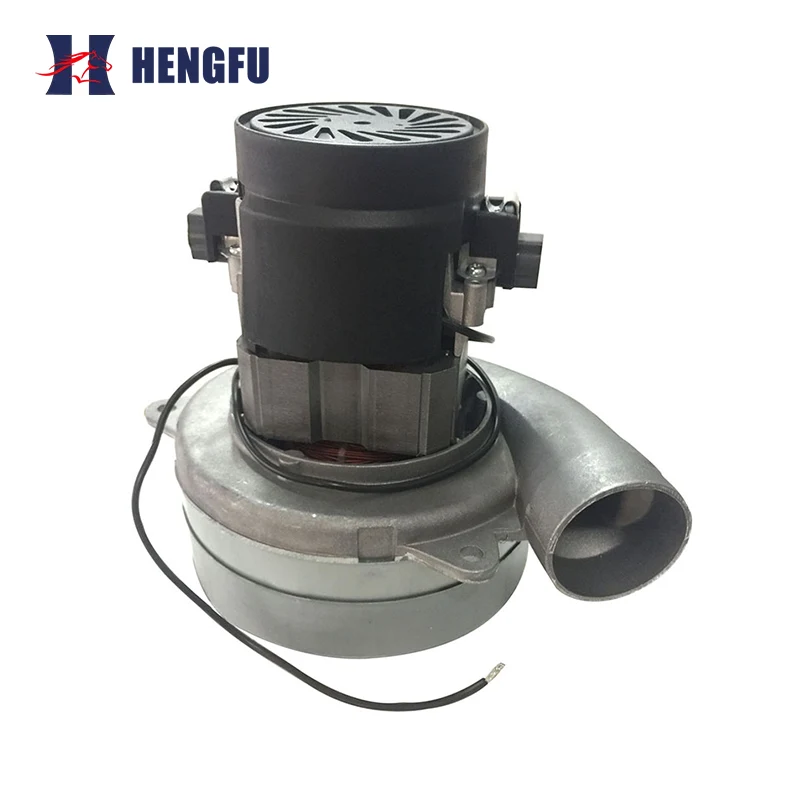

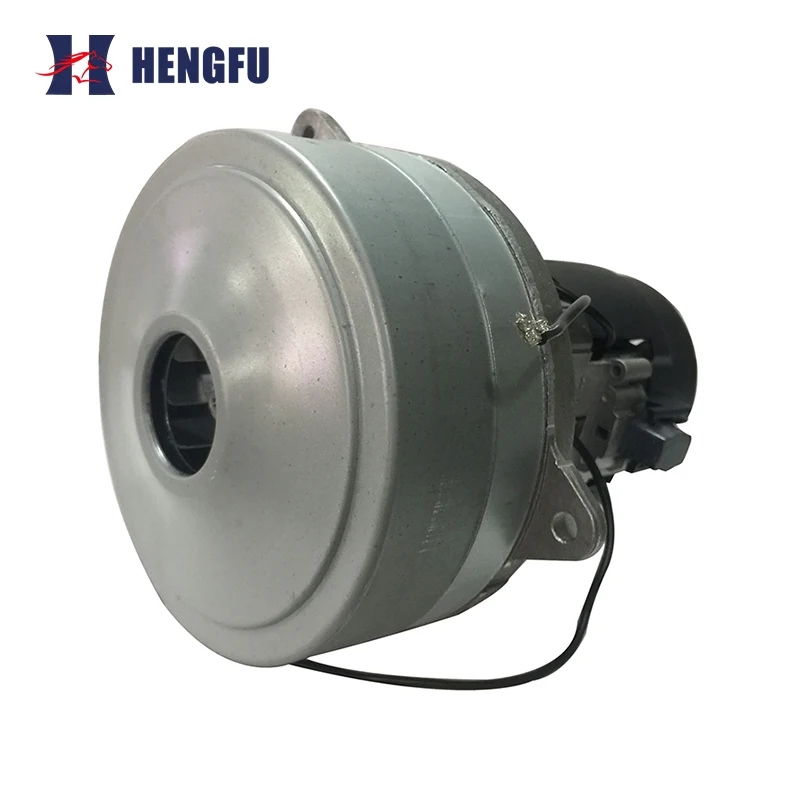

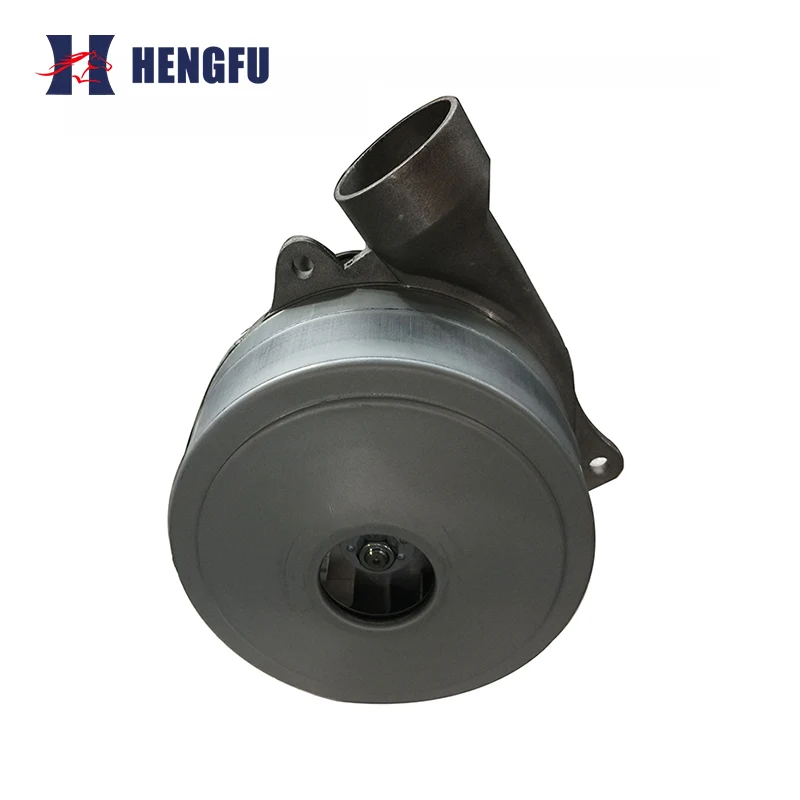

The XWHH95 Brushed DC vacuum cleaner motor uses a series-wound winding structure, making it a universal dual-purpose motor that can use either AC or DC power. The product is available in two configurations: direct-flow dry suction and wet/dry bypass. The speed range is 20,000-30,000 RPM, covering power levels from household to commercial applications. It achieves powerful suction by generating a negative pressure difference through a high-speed fan. Key components have undergone dynamic balancing and aging tests, ensuring higher reliability.
Founded in 1992, Hengfu has a 30,000㎡ production plant and automated production lines with an annual production capacity of over 10 million units. It has passed ISO9001, 3C, CE, UL, RoHS and other certifications. It is a national high-tech and specialized enterprise with multiple patents and a provincial-level R&D center. It has maintained a deep cooperation with Midea for 30 years.
|
Rating Voltage (V) |
100/110/120 |
220/230/240 |
|
Rating Frequency (Hz) |
60 |
50/60 |
|
Rating Input Power (W) |
600-1600 |
600-1600 |
|
Insulation Grade |
Class A、E、B、F |
Class A、E、B、F |
|
Spark Grade |
≤2 Class |
≤2 Class |
|
Vibration (mm/s) |
25 |
25 |
|
Life (A pair of carbon brush) |
500 hours |
500 hours |
|
Motor Type |
XWF9538-230-1500 |
|
Rating Voltage (V) |
230 |
|
Rating Frequency (Hz) |
50 |
|
Rating Input Power (W) |
1500 |
|
Maximal Airflow (M³/min) |
3.0 |
|
Maximal Suction (Kpa) |
34 |
|
Maximal Air Power (W) |
555 |
|
Maximal Efficiency (%) |
36% |
|
Noise (IM) (dB) |
≤102 |
The XWHH95 Brushed DC vacuum cleaner motor is widely used in household vacuum cleaners, commercial wet and dry cleaning machines, industrial dust removal equipment, and portable cordless vacuum cleaners. It can also be paired with air pumps, small power tools, and other products, covering scenarios such as home cleaning, commercial cleaning, industrial dust control, and smart home integration.
Before use, always verify that the power supply voltage matches the XWHH95 Brushed DC vacuum cleaner motor's rated voltage to avoid malfunctions caused by unstable voltage. During continuous operation, monitor the motor temperature to prevent overheating and insulation aging. Regularly check the motor's operating status, vibration, noise, and the tightness of the wiring terminals. If abnormal vibration or noise occurs, immediately stop the machine and inspect the bearings and internal parts.
Hengfu provides 24/7 online service for the XWHH95 Brushed DC vacuum cleaner motor. A dedicated R&D and quality team provides rapid response to technical issues. If the product has quality problems, we promise unconditional free replacement, providing full technical support and quality assurance to reduce customer risk.
XWHH95 Brushed DC vacuum cleaner motor supports customized samples, with sampling completed in 7-10 days and full testing of suction power, speed, durability, etc.; flexible solutions are provided, including standard packaging, branded customized packaging, and pallet packaging; the production cycle for regular orders is 30-45 days, and logistics can be arranged by the customer's designated freight forwarder or the factory. The factory is located near Jiangmen Port, and sea freight, air freight, and international express are all available options.
With a strong foundation in R&D, strict quality control, and a commitment to innovation, Heshan Hengfu Micro Motor Co., Ltd. is your trusted partner for high performance micro motor solutions. Whether you need standard products or customized designs, we deliver quality, efficiency, and reliability.
1. Guangdong Province Ultra-Efficient and Energy-Saving Micro Motor Research Center
2. ISO Certified Enterprise
3. National High-Tech Enterprise Certificate
4. 3C Certification
5. Excellent Taxpayer Enterprise
6. CE Certification
7. Specialized and Innovative Enterprise
8. Patent for Invention
