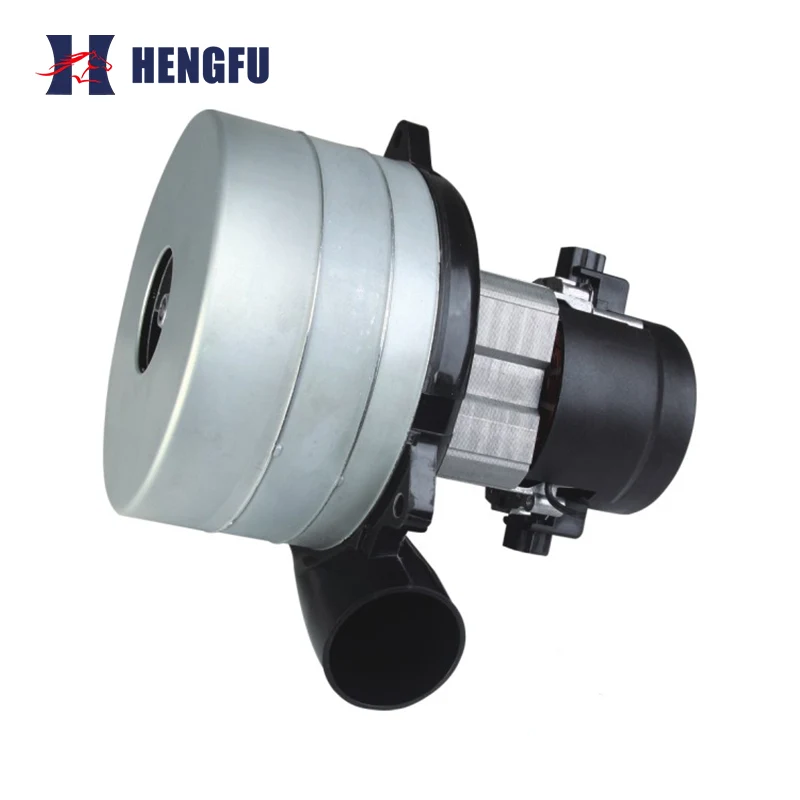

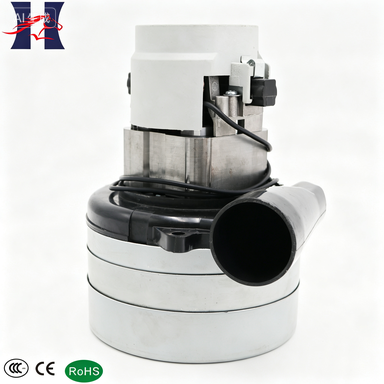

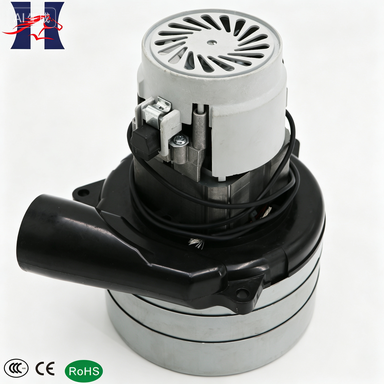

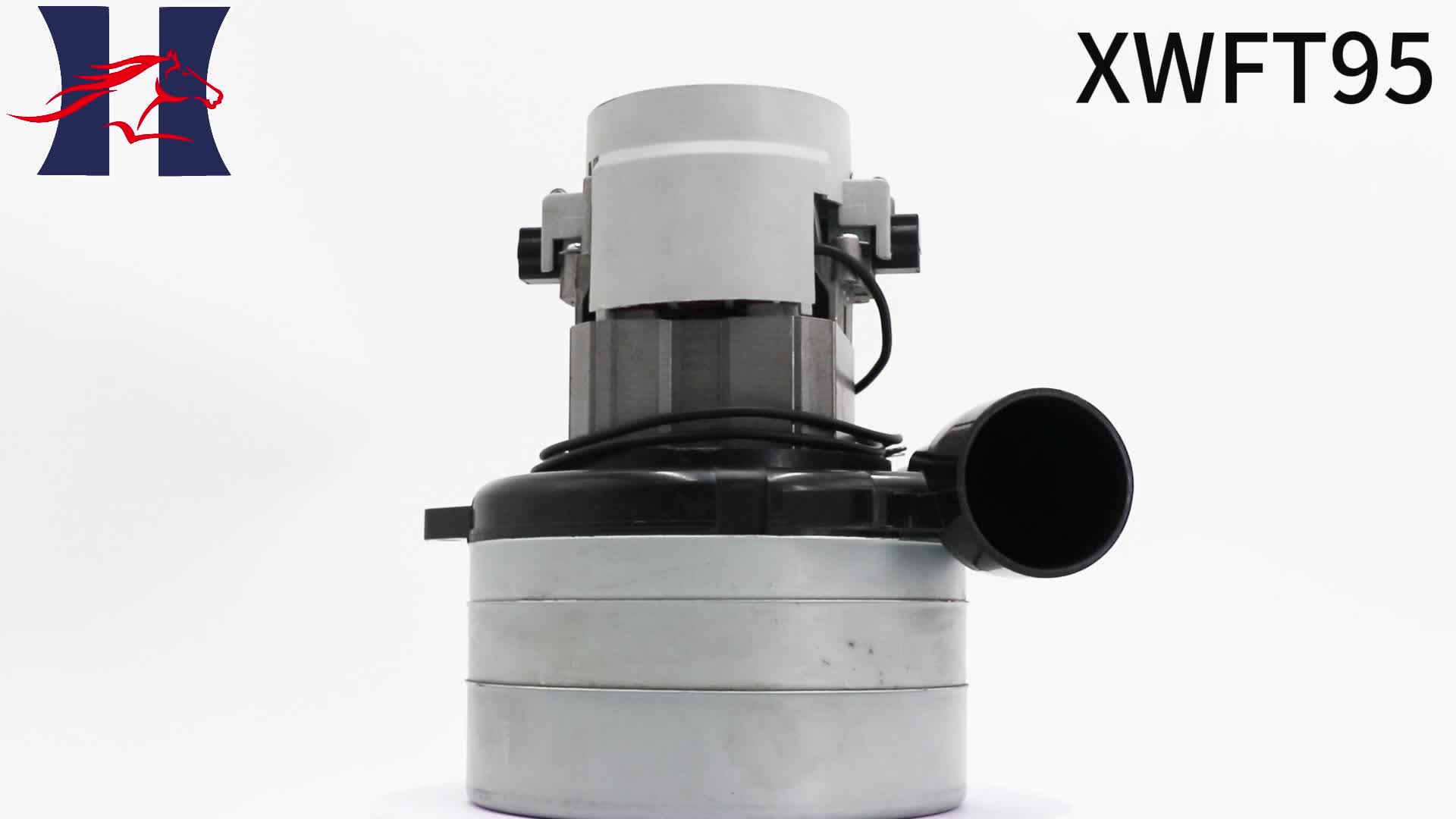

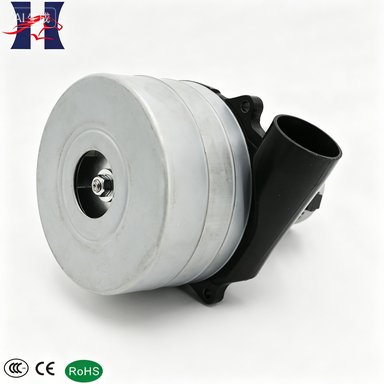

The XWFT95 Brushed vacuum cleaner motor adopts a series-wound structure, compatible with both AC and DC power supplies. It is available in two structures: direct-drive dry suction and bypass wet/dry operation. The motor operates at 20,000-30,000 RPM, covering the full range of portable, household, and commercial models. It achieves powerful suction by creating a negative pressure difference through a high-speed fan. The entire machine has undergone dynamic balancing and aging tests, demonstrating outstanding durability and stability.
|
Rating Voltage (V) |
100/110/120 |
220/230/240 |
|
Rating Frequency (Hz) |
60 |
50/60 |
|
Rating Input Power (W) |
600-1400 |
800-1600 |
|
Insulation Grade |
Class A、E、B、F |
Class A、E、B、F |
|
Spark Grade |
≤2 class |
≤2 class |
|
Vibration (mm/s) |
25 |
25 |
|
Life (A pair of carbon brush) |
500 hours |
500 hours |
|
Motor Type |
XWFT9538-230-1600 |
|
Rating Voltage (V) |
230 |
|
Rating Frequency (Hz) |
50 |
|
Rating Input Power (W) |
1600 |
|
Maximal Airflow (M³/min) |
2.85 |
|
Maximal Suction (Kpa) |
37.5 |
|
Maximal Air Power (W) |
540 |
|
Maximal Efficiency (%) |
34% |
|
Noise (IM) (dB) |
≤96 |
The XWFT95 Brushed vacuum cleaner motor is primarily compatible with household vacuum cleaners, commercial wet/dry cleaning machines, industrial dust removal equipment, and portable handheld vacuum tools. It can also be used as a power source for air pumps and small power tools, and is widely used in home cleaning, commercial cleaning, industrial dust control, and smart home applications.
Before use, ensure the power supply voltage matches the XWFT95 Brushed vacuum cleaner motor's rated voltage to avoid damage to components due to abnormal voltage. During continuous operation, monitor the motor temperature rise to prevent overheating and insulation aging. Regularly check the smoothness of operation, vibration noise, and the tightness of the wiring terminals. If abnormal vibration or noise occurs, immediately stop the machine and check the bearings and internal fasteners.
Hengfu provides 24/7 technical support for the XWFT95 Brushed vacuum cleaner motor. A dedicated R&D and quality control team provides real-time response to pre-sales selection, sales coordination, and after-sales troubleshooting. For product quality issues, we promise unconditional free replacement, ensuring customer safety and stability through comprehensive service.
XWFT95 Brushed vacuum cleaner motor supports customized samples, with sampling completed in 7-10 days and full performance testing including suction power, speed, and durability. We offer a variety of packaging options, including standard packaging, branded custom packaging, and pallet packaging. Regular mass production orders have a production cycle of 30-45 days. We support customer-designated freight forwarders or factory-arranged logistics. Our factory is located near Jiangmen Port, offering flexible options for sea freight, air freight, and international express delivery.
