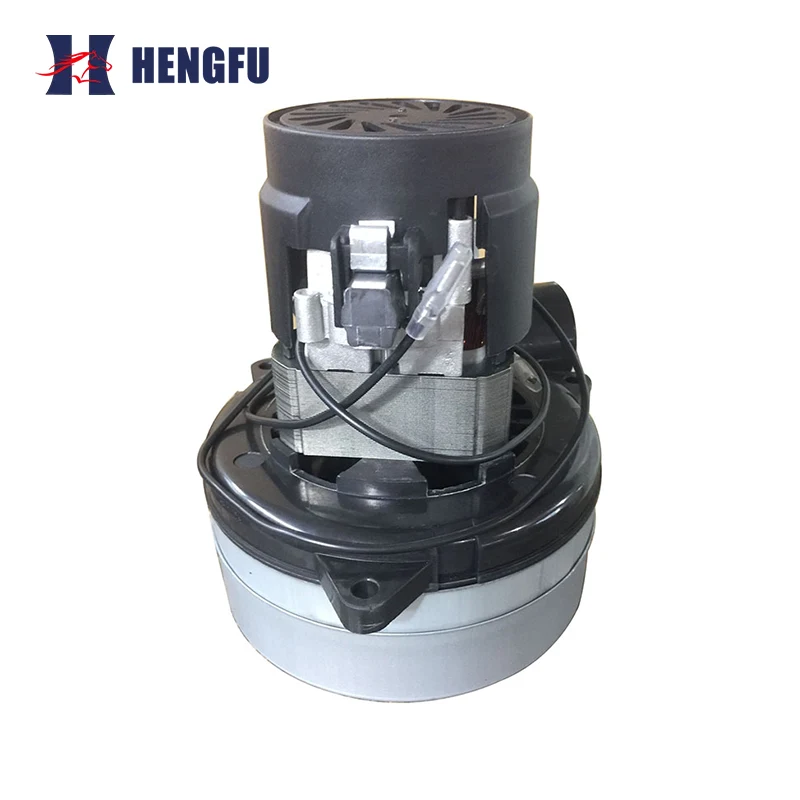

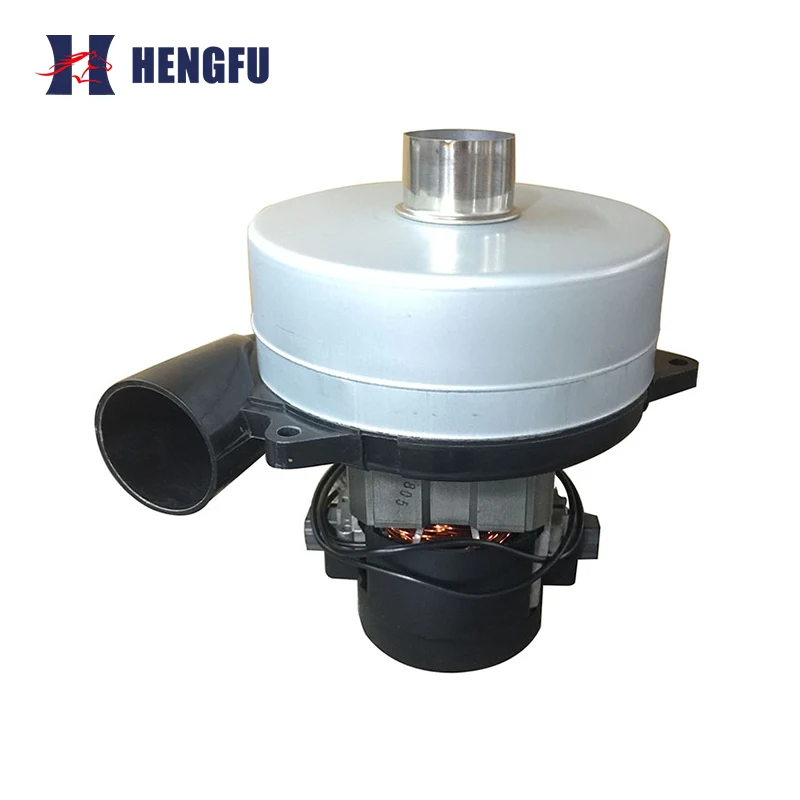

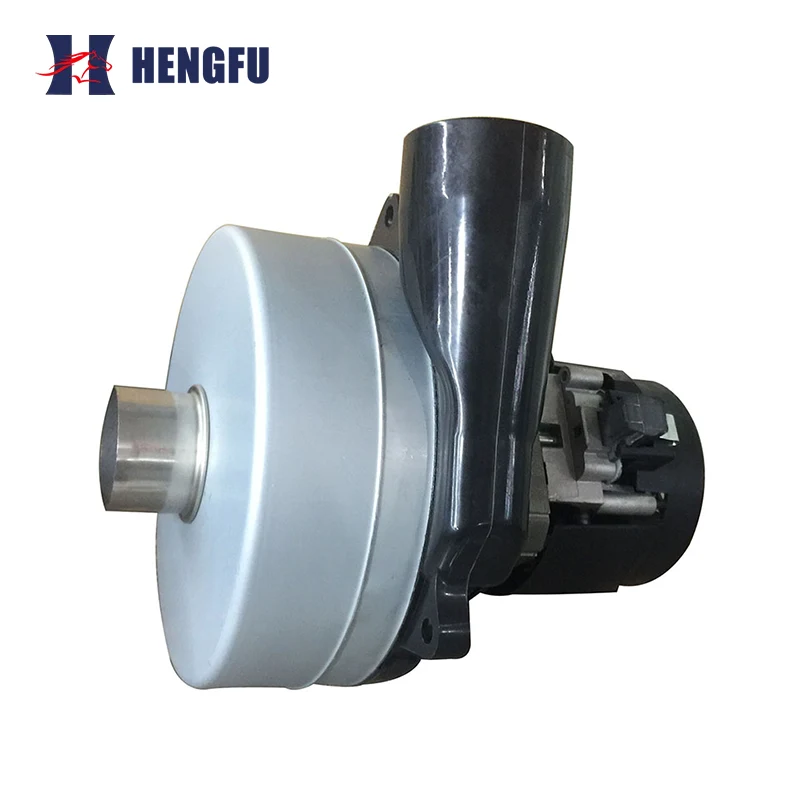

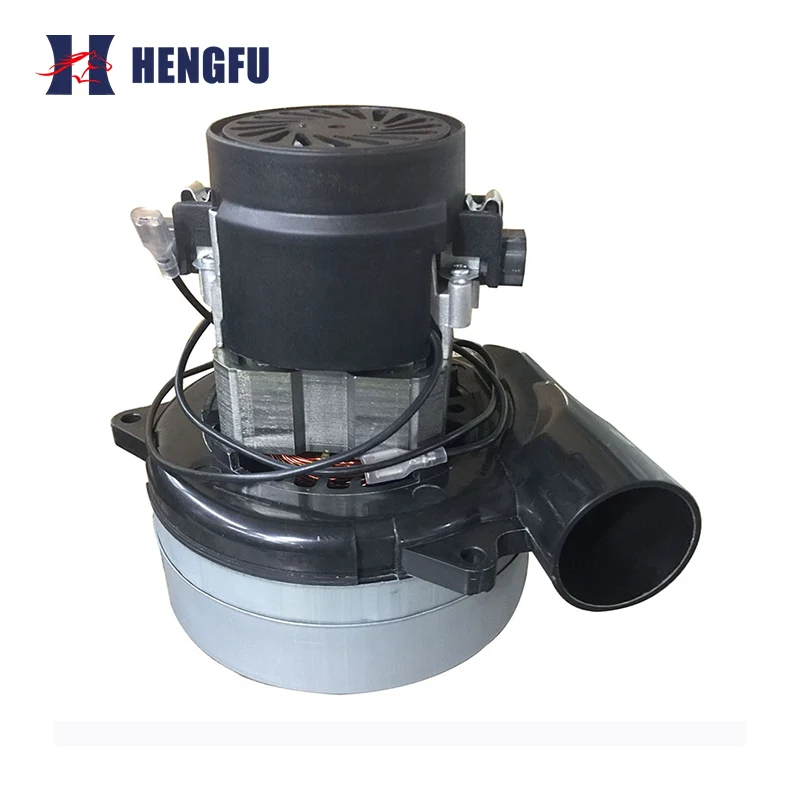

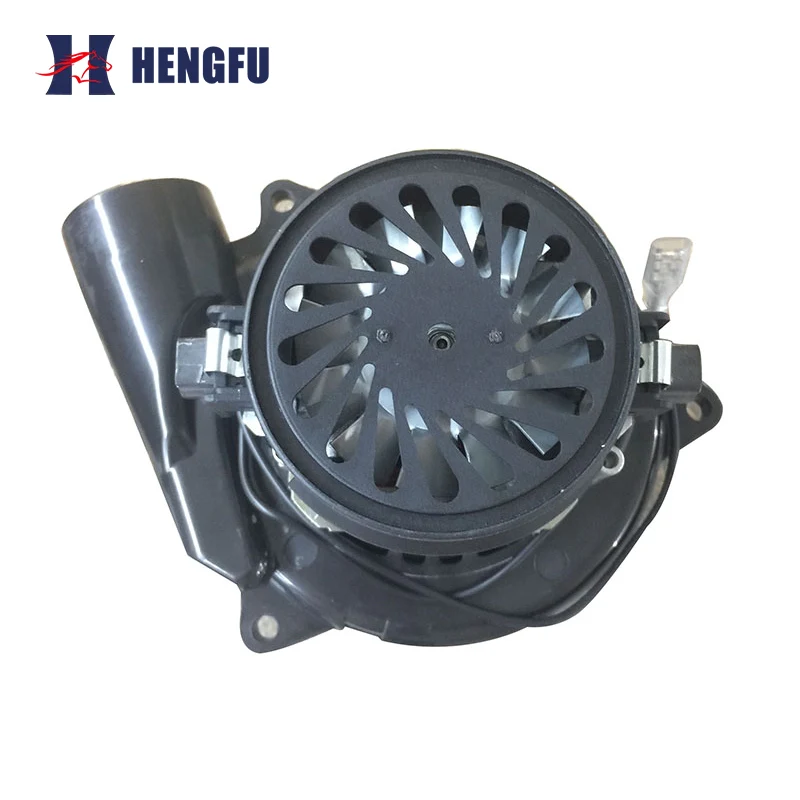

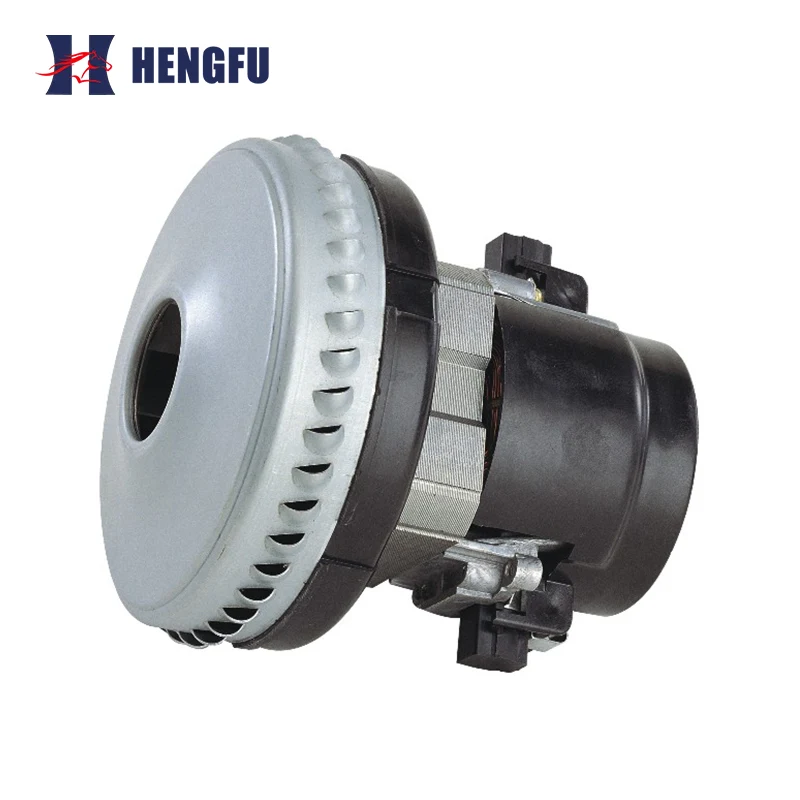

The XWE95 Brushed vacuum cleaner motor uses a series winding structure, compatible with both AC and DC power supplies. It comes in two structures: direct-flow dry suction and wet/dry bypass, safely capable of sucking up dust and liquids. The motor operates at speeds of 20,000-30,000 rpm, with power ranging from 250W to 1600W, suitable for portable, home, and commercial models. High-speed rotation creates a strong negative pressure difference, resulting in powerful suction, reliable operation, and compliance with the latest energy efficiency and safety standards for cleaning equipment.
|
Rating Voltage (V) |
100/110/120 |
220/230/240 |
|
Rating Frequency (Hz) |
60 |
50/60 |
|
Rating Input Power (W) |
400-1400 |
400-1500 |
|
Insulation Grade |
Class A、E、B、F |
Class A、E、B、F |
|
Spark Grade |
≤2 Class |
≤2 Class |
|
Vibration (mm/s) |
25 |
25 |
|
Life (A pair of carbon brush) |
500 |
500 |
|
Motor Type |
XWE9525-220-1300 |
|
Rating Voltage (V) |
220 |
|
Rating Frequency (Hz) |
50 |
|
Rating Input Power (W) |
1300 |
|
Maximal Airflow (M³/min) |
3.55 |
|
Maximal Suction (Kpa) |
30 |
|
Maximal Air Power (W) |
425 |
|
Maximal Efficiency (%) |
34% |
|
Noise (IM) (dB) |
≤97 |
The XWE95 Brushed vacuum cleaner motor is mainly used in household vacuum cleaners, commercial cleaning equipment, industrial dust collectors, and portable handheld vacuum cleaners. It can also be used as a power component for air pumps and small power tools, widely covering scenarios such as home cleaning, commercial cleaning, industrial dust treatment, and smart home integration.
When using theXWE95 Brushed vacuum cleaner motor, first verify that the power supply voltage matches the rated value to avoid damage to the motor due to abnormal power supply; during continuous operation, pay attention to the temperature rise to prevent overheating and insulation aging; regularly check the operating status, vibration and noise, and wiring tightness to eliminate potential problems in a timely manner; if abnormal vibration or noise occurs, stop the machine immediately and focus on checking the bearings and internal components.
Hengfu provides 24/7 technical support for XWE95 Brushed vacuum cleaner motor. The R&D and quality control teams are fully involved in pre-sales selection, sales follow-up, and after-sales troubleshooting. If any quality problems occur, we promise to replace the product unconditionally and free of charge, ensuring stable use for customers through full life-cycle service.
XWE95 Brushed vacuum cleaner motor supports customized samples, with sampling completed in 7-10 days and performance tests such as suction power, speed, and lifespan available; packaging options include standard, branded, and pallet packaging; production cycle for regular orders is 30-45 days, and we support customer-selected freight forwarders or factory-delivered logistics. Our factory is near Jiangmen Port, and we offer flexible options for sea freight, air freight, and international express delivery.
With a strong foundation in R&D, strict quality control, and a commitment to innovation, Heshan Hengfu Micro Motor Co., Ltd. is your trusted partner for high performance micro motor solutions. Whether you need standard products or customized designs, we deliver quality, efficiency, and reliability.
1. Guangdong Province Ultra-Efficient and Energy-Saving Micro Motor Research Center
2. ISO Certified Enterprise
3. National High-Tech Enterprise Certificate
4. 3C Certification
5. Excellent Taxpayer Enterprise
6. CE Certification
7. Specialized and Innovative Enterprise
8. Patent for Invention
