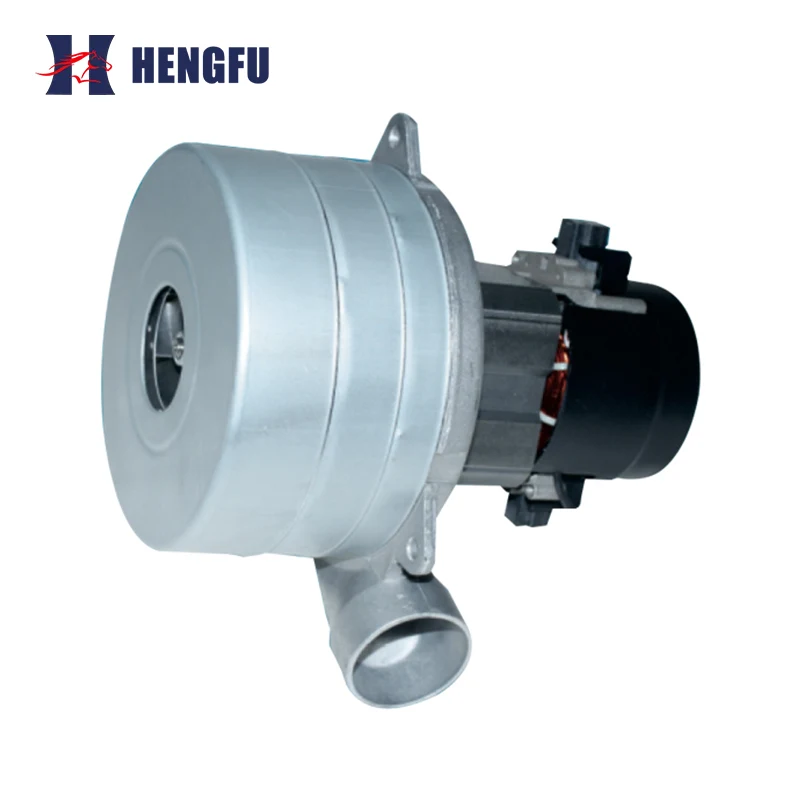

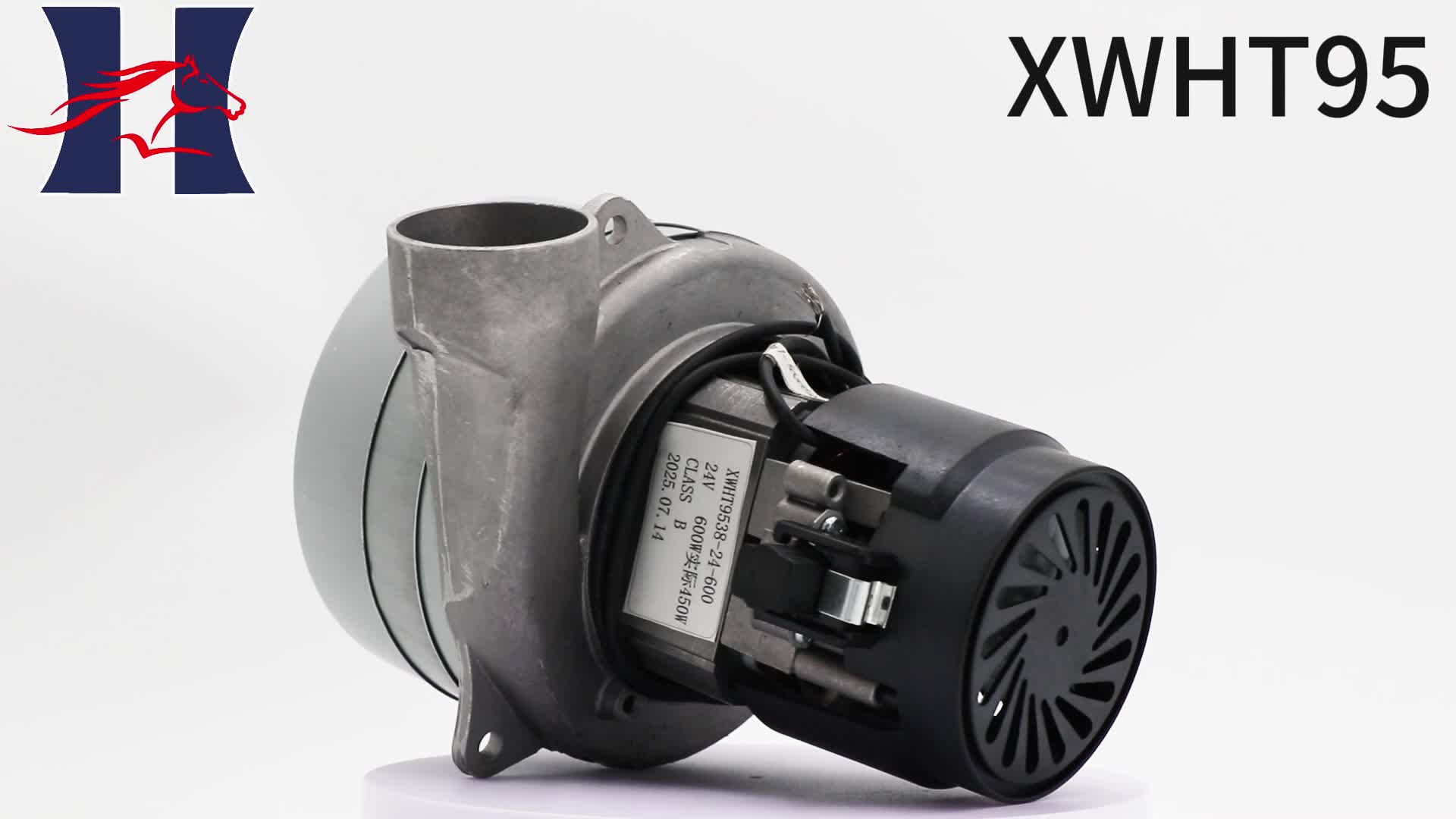

The XWHT95 Brushed DC vacuum cleaner motor utilizes advanced brushless DC (BLDC) technology, offering higher energy efficiency, lower noise, and a longer lifespan compared to traditional series-wound motors. The motor boasts stable speed and strong starting torque, is compatible with DC power systems, generates less heat, and suffers less energy loss, ensuring stable operation over extended periods. Its integrated electromechanical structure, combined with a high-efficiency fan assembly, creates strong negative pressure suction, meeting the energy efficiency standards of high-end cleaning equipment.
|
Rating Voltage (V) |
DC24 |
DC36 |
|
Rating Frequency (Hz) |
/ |
/ |
|
Rating Input Power (W) |
150-450 |
150-650 |
|
Insulation Grade |
Class A、E、B、F |
Class A、E、B、F |
|
Spark Grade |
≤2 Class |
≤2 Class |
|
Vibration (mm/s) |
15 |
15 |
|
Life (A pair of carbon brush) |
≥300 |
≥300 |
|
Motor Type |
XWHT9538-24-450 |
XWHT9538-24-450 |
|
Rating Voltage (V) |
DC24 |
DC36 |
|
Rating Frequency (Hz) |
/ |
/ |
|
Rating Input Power (W) |
450 |
600 |
|
Maximal Airflow (M³/min) |
1.7 |
2.0 |
|
Maximal Suction (Kpa) |
14.0 |
19.0 |
|
Maximal Air Power (W) |
103 |
160 |
|
Maximal Efficiency (%) |
23% |
26% |
|
Noise (IM) (dB) |
≤86 |
≤89 |
The XWHT95 Brushed DC vacuum cleaner motor is primarily used in cordless handheld vacuum cleaners, portable car vacuum cleaners, household silent vacuum cleaners, and small smart cleaning appliances. It can also be used with air pumps and small DC-driven tools, finding wide application in home cleaning, car cleaning, smart home appliances, and portable cleaning equipment.
Before use, ensure the power supply voltage matches the motor's rated parameters to avoid overvoltage/undervoltage operation. During continuous operation, monitor the temperature to prevent overheating from affecting the motor's lifespan. Regularly check the motor's smoothness of operation, noise level, and wiring secureness. If abnormal vibration or noise occurs, immediately stop the machine and check the bearings and assembly condition.
Hengfu provides 24/7 technical support for the XWHT95 Brushed DC vacuum cleaner motor. The R&D and quality control teams provide full support throughout the pre-sales selection process, sales follow-up, and after-sales troubleshooting. For product quality issues, we promise unconditional free replacement, providing stable service and technical support throughout the entire product lifecycle.
XWHT95 Brushed DC vacuum cleaner motor supports customized sample production, with sampling completed in 7–10 days. Comprehensive testing of speed, suction power, durability, etc. is available. Packaging options include standard packaging, brand-customized packaging, and pallet packaging. The lead time for regular orders is 30–45 days. Customers can specify their own freight forwarders or the factory can handle logistics. Located near Jiangmen Port, sea freight, air freight, and international express are all flexible options.
