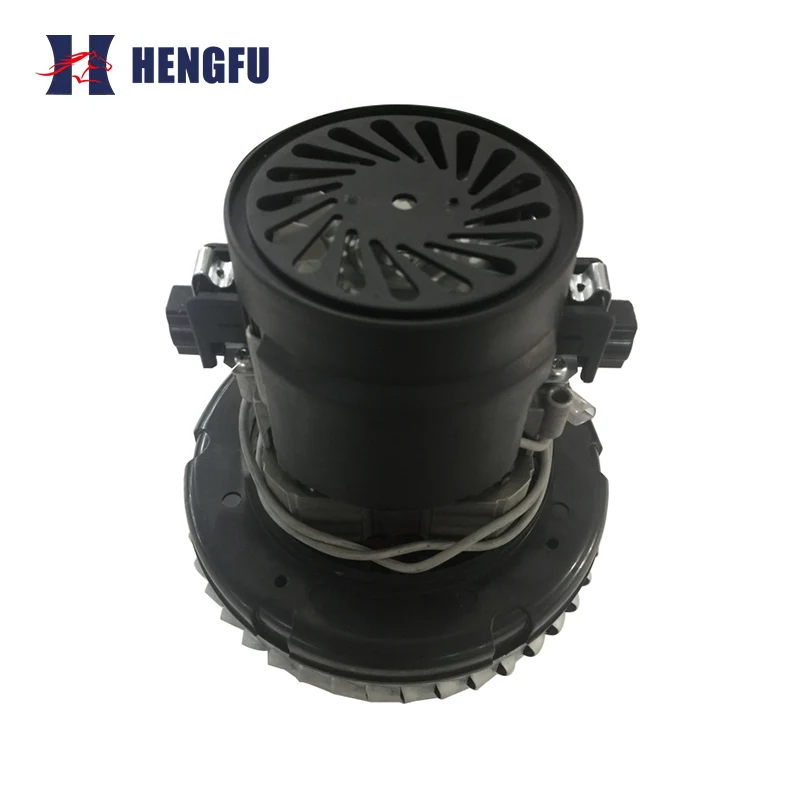

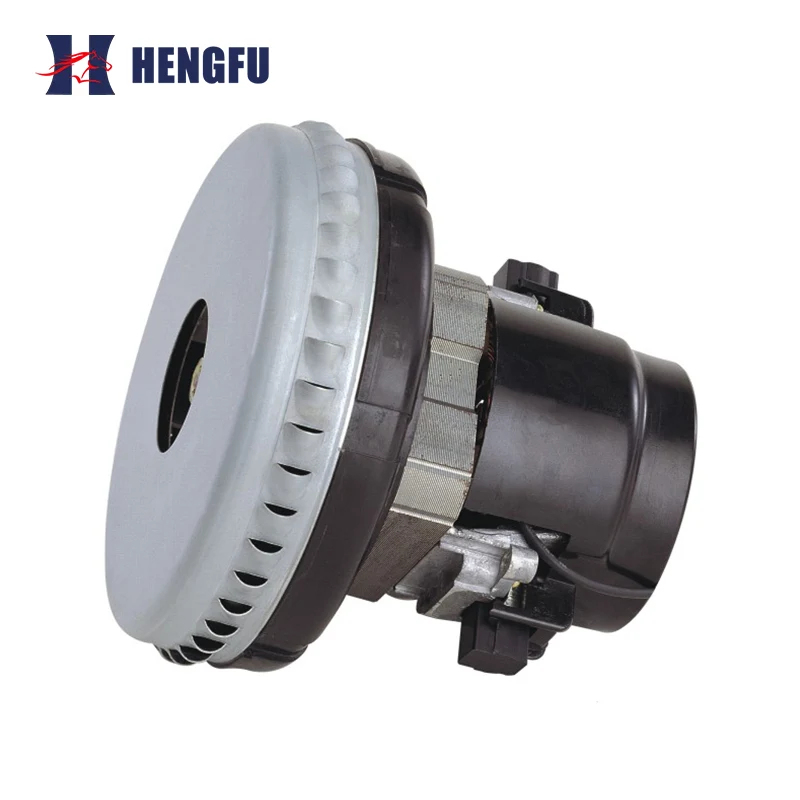

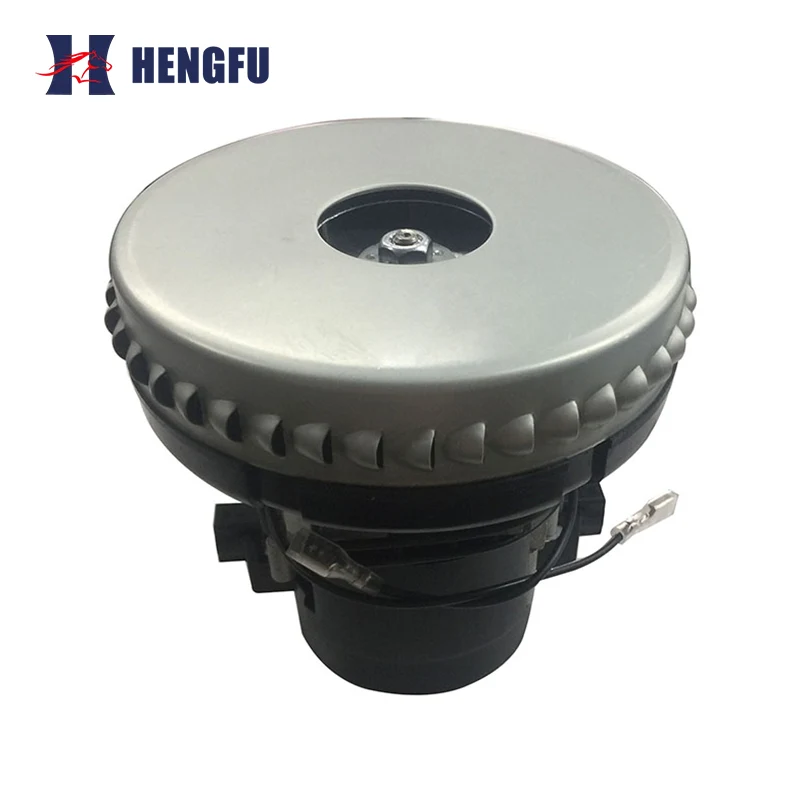

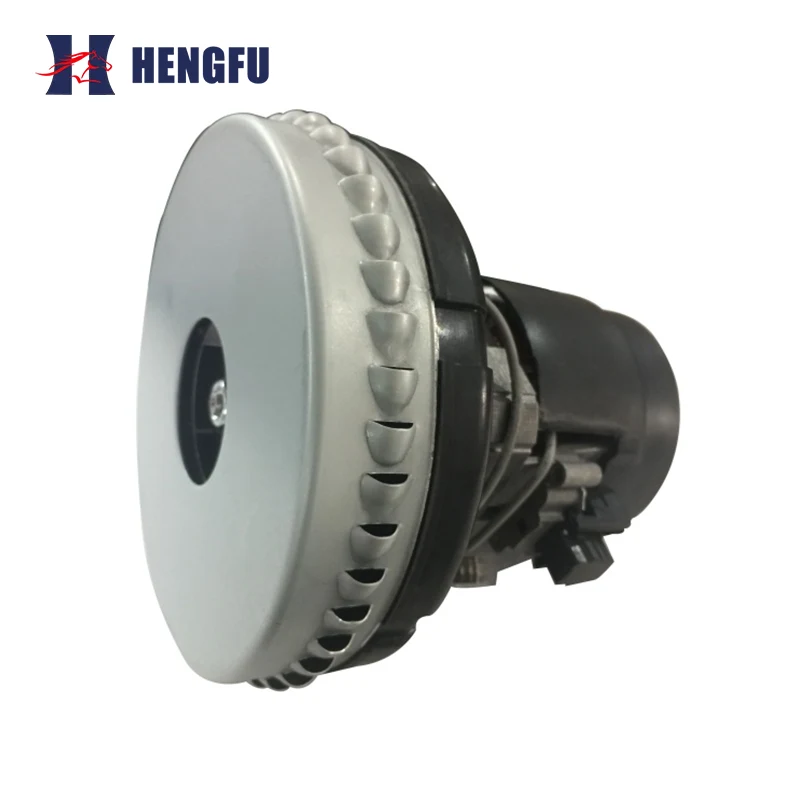

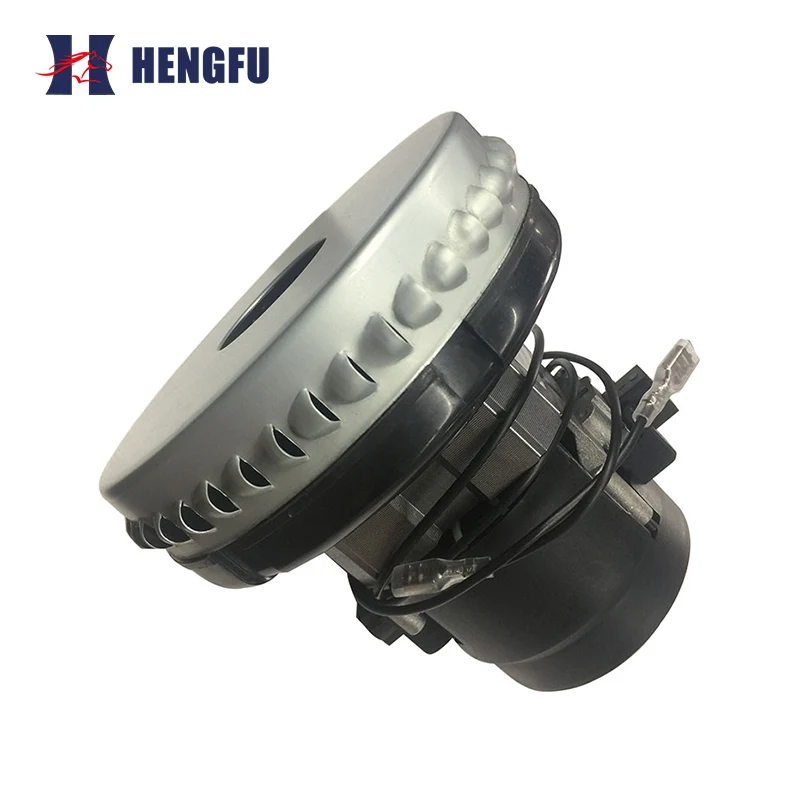

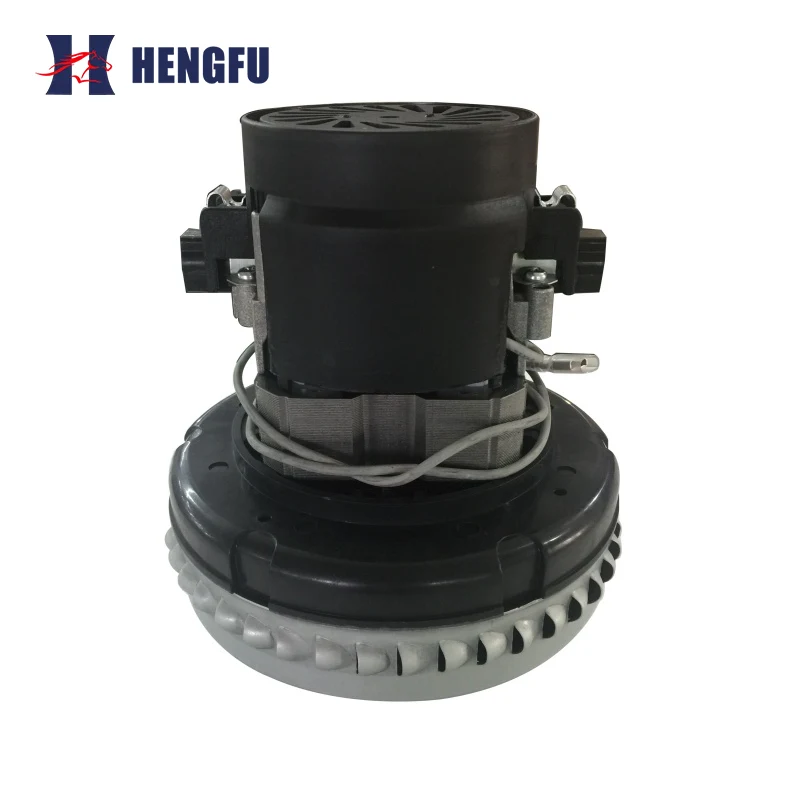

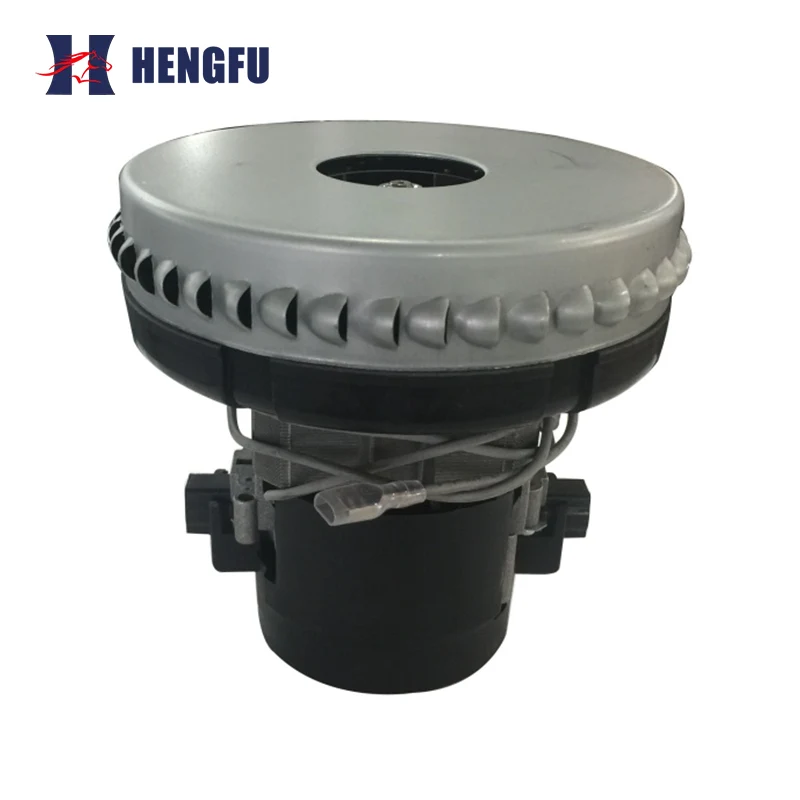

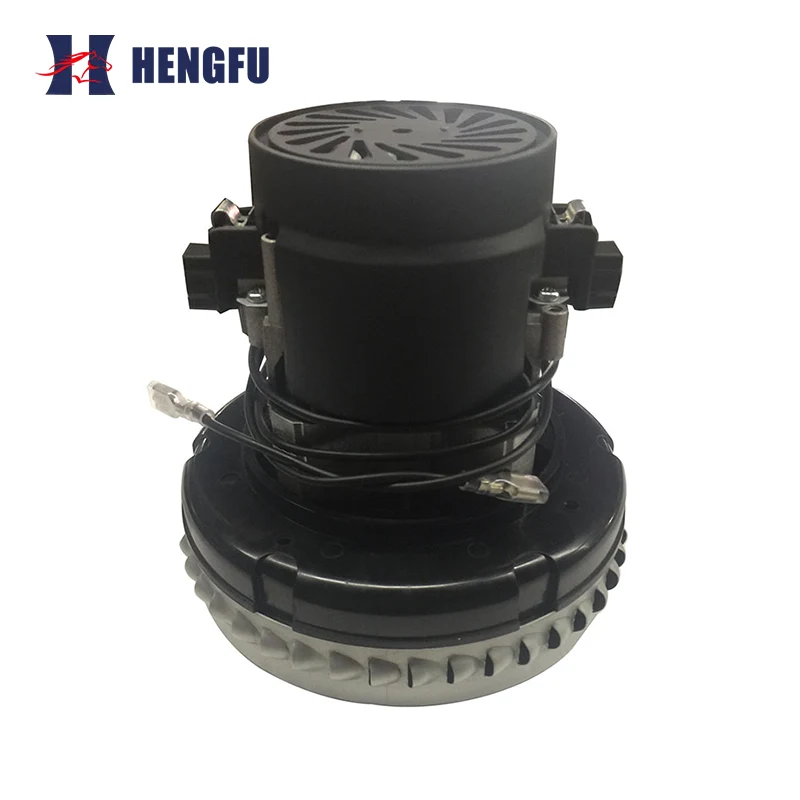

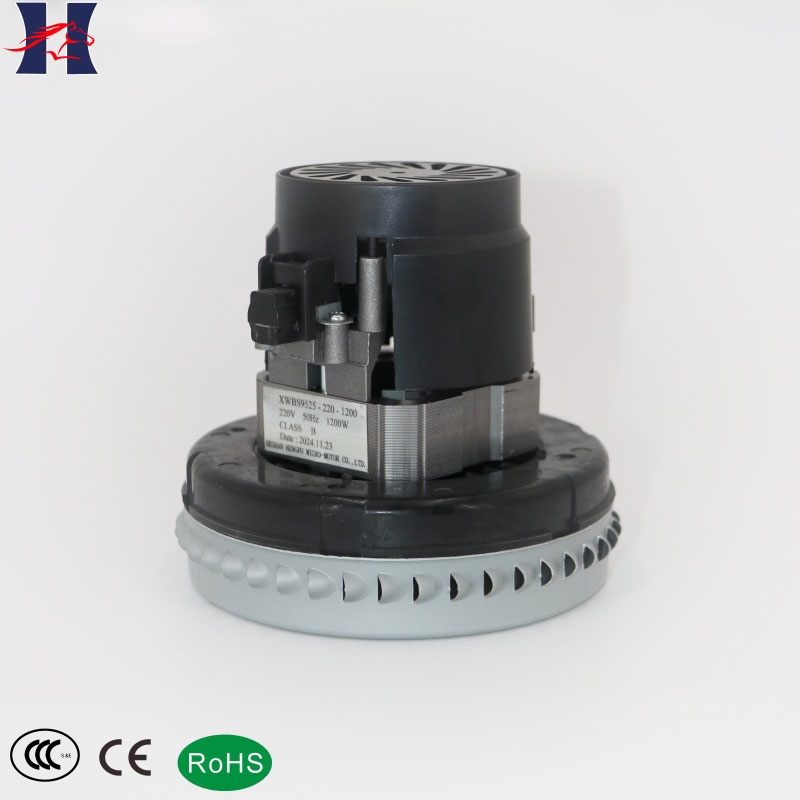

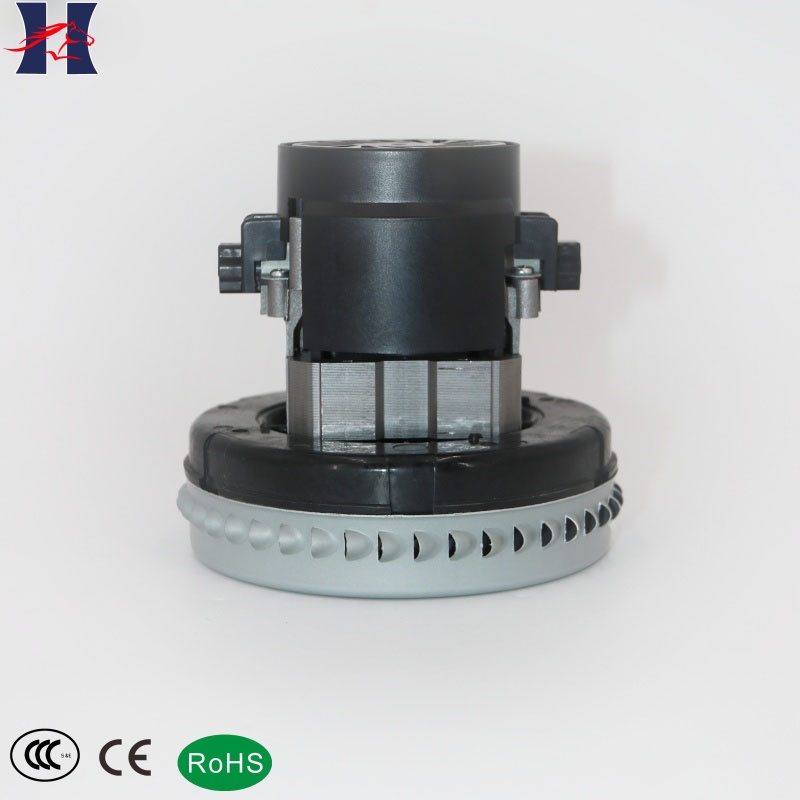

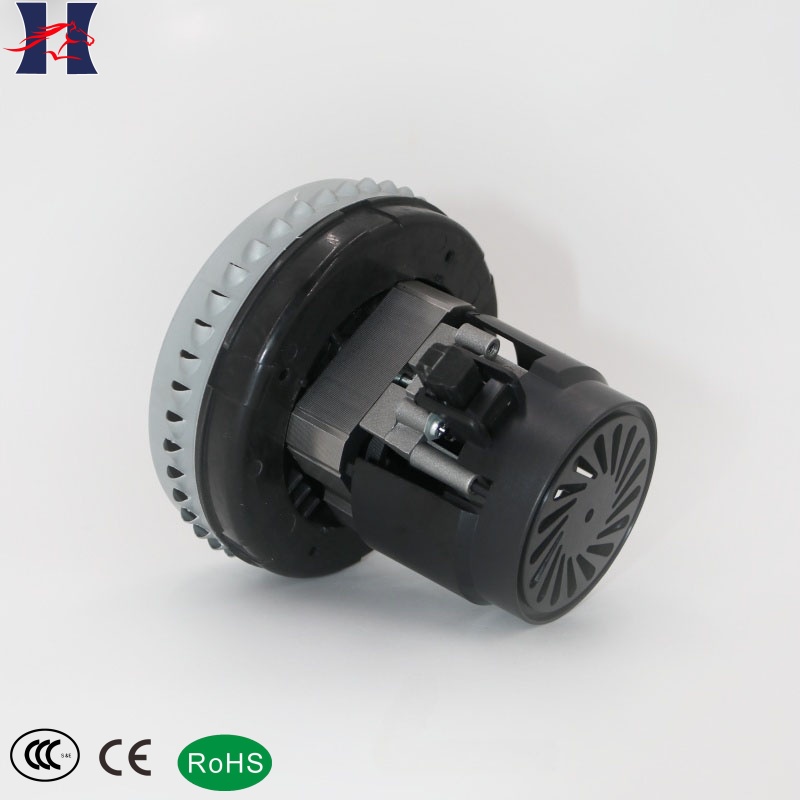

The XWBS95 Brushed vacuum cleaner motor uses brushless DC (BLDC) technology and features a dry/wet dual-use bypass structure, allowing for safe suction of dust and liquids. The motor boasts high starting torque, a typical operating speed of 20,000-30,000 RPM, and a power range of 250W-1600W, catering to various needs in portable, home, and commercial applications. It offers stable operation, strong load adaptability, and the brushless design significantly reduces wear and noise, resulting in a longer lifespan.
|
Rating Voltage (V) |
100/110/120 |
220/230/240 |
|
Rating Frequency (Hz) |
60 |
50/60 |
|
Rating Input Power (W) |
500-1400 |
600-1600 |
|
Insulation Grade |
Class A、E、B、F |
Class A、E、B、F |
|
Spark Grade |
≤2 Class |
≤2 Class |
|
Vibration (mm/s) |
25 |
25 |
|
Life (A pair of carbon brush) |
500Hours |
500Hours |
|
Motor Type |
XWBS9525-230-1200 |
|
Rating Voltage (V) |
230 |
|
Rating Frequency (Hz) |
50 |
|
Rating Input Power (W) |
1200 |
|
Maximal Airflow (M³/min) |
3.5 |
|
Maximal Suction (Kpa) |
19 |
|
Maximal Air Power (W) |
365 |
|
Maximal Efficiency (%) |
31.5% |
|
Noise (IM) (dB) |
≤96 |
The XWBS95 Brushed vacuum cleaner motor has a wide range of applications, mainly used in household cordless vacuum cleaners, commercial wet and dry cleaning machines, industrial dust removal equipment, and portable handheld cleaning devices. It can also be used with air pumps, small power tools, and other equipment, covering fields such as home cleaning, commercial cleaning, industrial dust removal, and smart home integration.
1. Power Supply Matching: Before use, ensure the power supply voltage matches the motor's rated voltage to avoid damage to components caused by abnormal voltage.
2. Temperature Rise Monitoring: After continuous operation, monitor the motor temperature to prevent overheating that could lead to insulation aging and burnout.
3. Regular Inspection: Check the XWBS95 Brushed vacuum cleaner motor's operating status, vibration, noise, and the tightness of the wiring terminals to promptly identify and address any potential problems.
4. Abnormal Handling: Immediately stop the machine if severe vibration or harsh noise occurs, as this is often caused by bearing wear or loose internal components.
Hengfu provides 24/7 service for XWBS95 Brushed vacuum cleaner motors. A dedicated R&D and quality control team responds in real time to pre-sales selection, production during sales, and after-sales troubleshooting. If any quality problems occur, we promise to replace the product unconditionally and provide full life-cycle technical support and quality assurance.
XWBS95 Brushed vacuum cleaner motor supports customized sample production, with sampling completed in 7-10 days and full performance testing including suction power, speed, and lifespan. It offers various packaging options including standard, branded, and pallet packaging. The production cycle for regular mass-production orders is 30-45 days. Customers can designate freight forwarders or the factory can arrange logistics. The factory is only 31 kilometers from Jiangmen Port, offering multiple delivery options including sea freight, air freight, and international express.
With a strong foundation in R&D, strict quality control, and a commitment to innovation, Heshan Hengfu Micro Motor Co., Ltd. is your trusted partner for high performance micro motor solutions. Whether you need standard products or customized designs, we deliver quality, efficiency, and reliability.
