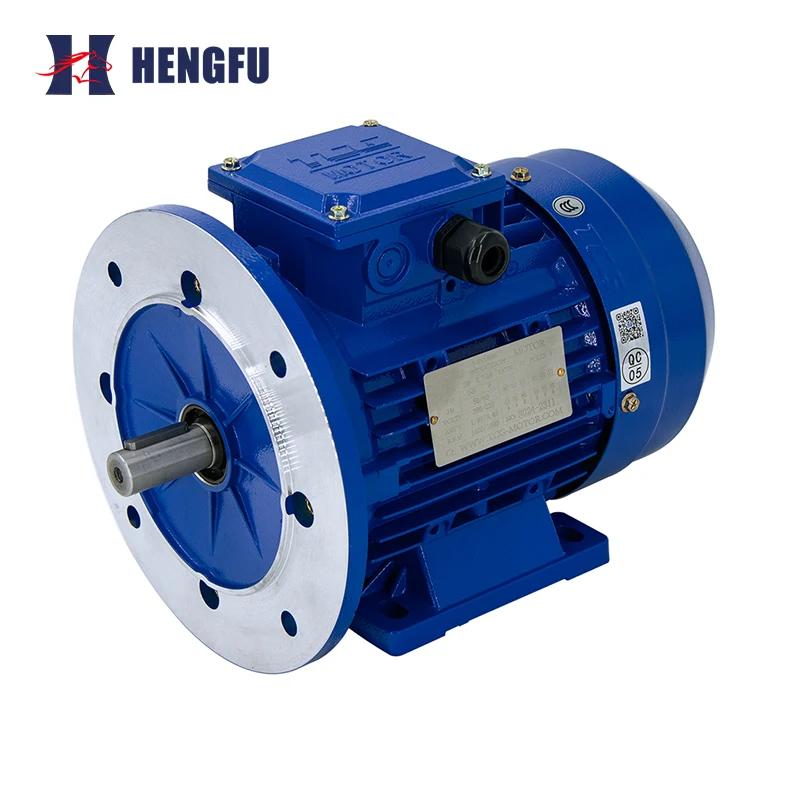

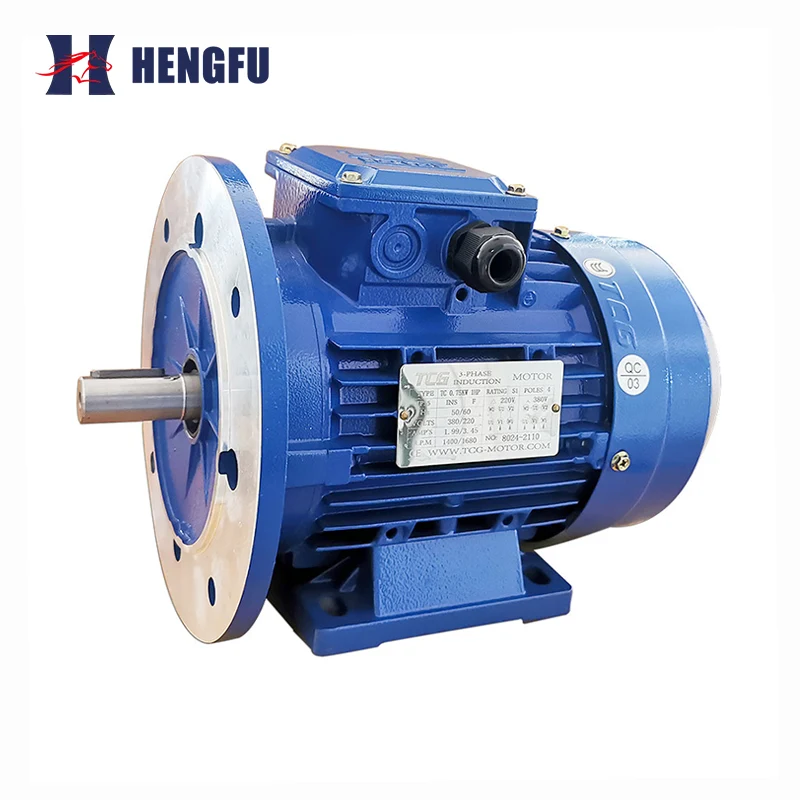

This Aluminum Housing Motor B35 Foot Mounted is a highly cost-effective power option for general-purpose machinery. Featuring a high-strength die-cast aluminum alloy housing and incorporating the B35 mounting standard, it perfectly combines the advantages of horizontal foot mounting and vertical flange mounting, providing your equipment with exceptional installation flexibility.

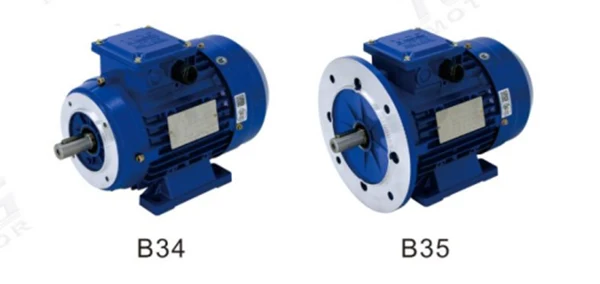

Dual Mounting (B35): It features both B3 (horizontal foot) and B5 (vertical flange) mounting interfaces. This means the motor can be placed horizontally on the ground (B3), directly connected to equipment via the flange (B5), or even installed vertically, significantly reducing inventory and equipment modification costs.
Exceptional Cost-Effectiveness: Compared to traditional cast iron motors, the aluminum alloy housing is not only lighter, but also boasts superior thermal conductivity. Combined with standardized production processes, it offers a high-performance product at a highly competitive price.
Rapid Heat Dissipation: Aluminum's thermal conductivity is more than three times that of cast iron. Combined with a unique heat dissipation fin design, it rapidly dissipates internal heat, effectively protecting the coils, extending motor life, and reducing long-term maintenance costs.
|
TYPE |
Power |
RATED SPEED |
RATED |
POWER |
RATED |
START |
LOAD FACTOR |
Multiple of starting current |
WEIGHT |
|
KW |
r/min |
(A) |
COSΦ |
MN(N·M) |
Mst/MN |
MMAX/MN |
Is/In |
(KG) | |
|
2P |
|||||||||
|
TC5612 |
0.09 |
2800 |
0.32 |
0.68 |
0.31 |
2.3 |
2.3 |
6.0 |
2.6 |
|
TC5622 |
0.12 |
2800 |
0.38 |
0.71 |
0.41 |
2.3 |
2.3 |
6.0 |
3.1 |
|
TC5632 |
0.18 |
2800 |
0.65 |
0.70 |
0.62 |
2.3 |
2.3 |
6.0 |
3.6 |
|
TC6312 |
0.18 |
2800 |
0.51 |
0.8 |
0.62 |
2.3 |
2.3 |
5.5 |
3.8 |
|
TC6322 |
0.25 |
2800 |
0.67 |
0.81 |
0.86 |
2.3 |
2.3 |
5.5 |
3.8 |
|
TC6332 |
0.37 |
2800 |
1.05 |
0.78 |
1.26 |
2.3 |
2.3 |
6.1 |
4.2 |
|
TC7112 |
0.37 |
2800 |
0.98 |
0.81 |
1.26 |
2.3 |
2.3 |
6.1 |
5.4 |
|
TC7122 |
0.55 |
2800 |
1.33 |
0.82 |
1.88 |
2.3 |
2.3 |
6.1 |
5.9 |
|
TC7132 |
0.75 |
2800 |
1.82 |
0.83 |
2.56 |
2.3 |
2.3 |
6.1 |
6.4 |
|
TC8012 |
0.75 |
2800 |
1.78 |
0.83 |
2.56 |
2.3 |
2.3 |
6.1 |
8.1 |
|
TC8022 |
1.1 |
2800 |
2.49 |
0.84 |
3.75 |
2.3 |
2.3 |
7.0 |
9.3 |
|
TC-90S-2 |
1.5 |
2840 |
3.34 |
0.84 |
5.04 |
2.3 |
2.3 |
7.0 |
10.9 |
|
TC-90L-2 |
2.2 |
2840 |
4.69 |
0.85 |
7.40 |
2.3 |
2.3 |
7.0 |
13.8 |
|
TC-100L1-2 |
3 |
2860 |
6.14 |
0.87 |
10.0 |
2.3 |
2.3 |
7.5 |
19.6 |
|
TC-112M-2 |
4 |
2860 |
7.83 |
0.88 |
13.3 |
2.3 |
2.3 |
7.5 |
29 |
|
TC-132S1-2 |
5.5 |
2900 |
10.7 |
0.88 |
18.1 |
2.3 |
2.3 |
7.5 |
39 |
|
TC-13252-2 |
7.5 |
2900 |
14.2 |
0.88 |
24.7 |
2.3 |
2.3 |
7.5 |
47.5 |
Note: the above parameters are under condition:3 phases Y2-380V/50Hz
Widely used in general-purpose equipment requiring flexible installation and high cost-effectiveness, the Aluminum Housing Motor B35 Foot Mounted is the preferred choice for the following industries due to its universal installation method and high cost-effectiveness:
Fluid conveying equipment: Water pumps, fans, air compressors (fast heat dissipation is key).
Precision manufacturing equipment: CNC machine tools, woodworking machinery, glass edging machines, textile machinery (low noise ensures a safe environment).
Automation and logistics: Automated production line conveyors, sorting equipment (lightweight for easy handling).
Other fields: Medical instruments, food machinery, environmental protection equipment.
Service Scale: Since its establishment, the company has successfully served over 50,000 clients, earning an excellent market reputation.
Brand Philosophy: Adhering to the principles of "Quality Wins the Market, Service Wins the Image, Innovation Wins the Future," the company is committed to building a renowned brand of high-efficiency and energy-saving transmissions.
Selection Guidance: We provide professional B35 (horizontal/vertical dual-purpose) installation dimension guidance to ensure perfect matching with your equipment.
Technical Consultation: We provide technical support including installation torque and wiring methods.
Service Commitment: We are committed to providing customers with comprehensive transmission solutions and perfect after-sales service.
Q1: What is the B35 mounting method?
A: B35 refers to a motor that combines the structural features of both B3 (horizontal foot mounting) and B5 (vertical flange mounting). This means the motor can be installed horizontally on the ground like a regular motor, or it can be directly connected to the load via a flange, offering great flexibility and versatility.
Q2: Why is this motor so cost-effective?
A: The B35 motor integrates two mounting methods, allowing you to purchase only one model to meet the needs of various equipment, reducing inventory pressure. While the aluminum alloy casing has a higher material cost, it offers high processing efficiency, excellent heat dissipation, and light weight, resulting in a significantly lower overall cost compared to traditional iron-cased motors.
Q3: Is heat dissipation really better for aluminum-cased motors than iron-cased ones?
A: Yes. Aluminum has three times the thermal conductivity of cast iron, allowing it to quickly conduct heat from inside the motor to the cooling fins for dissipation. This not only makes the motor more compact but also effectively prevents overheating and extends the lifespan of insulation materials and bearings.
Q4: Is this Aluminum Housing Motor B35 Foot Mounted suitable for use in humid environments?
A: The standard B35 motor has an IP54 protection rating, suitable for most industrial environments. However, it should be noted that aluminum-cased motors may corrode in environments with strong acids, strong alkalis, or extreme humidity. For harsh environments, it is recommended to consult customer service for surface anti-corrosion treatment or choose a cast iron motor.
