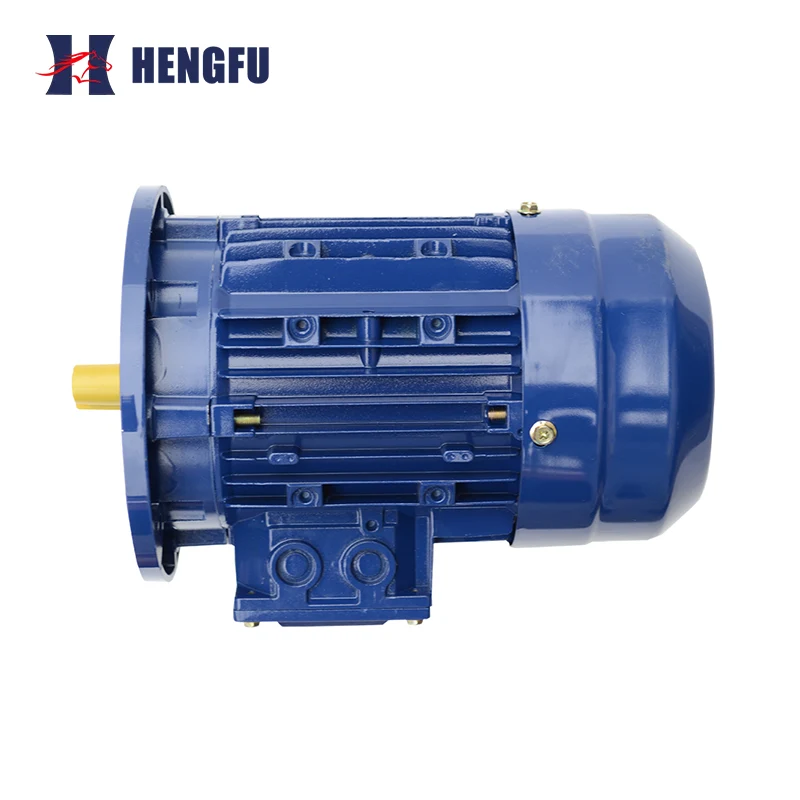

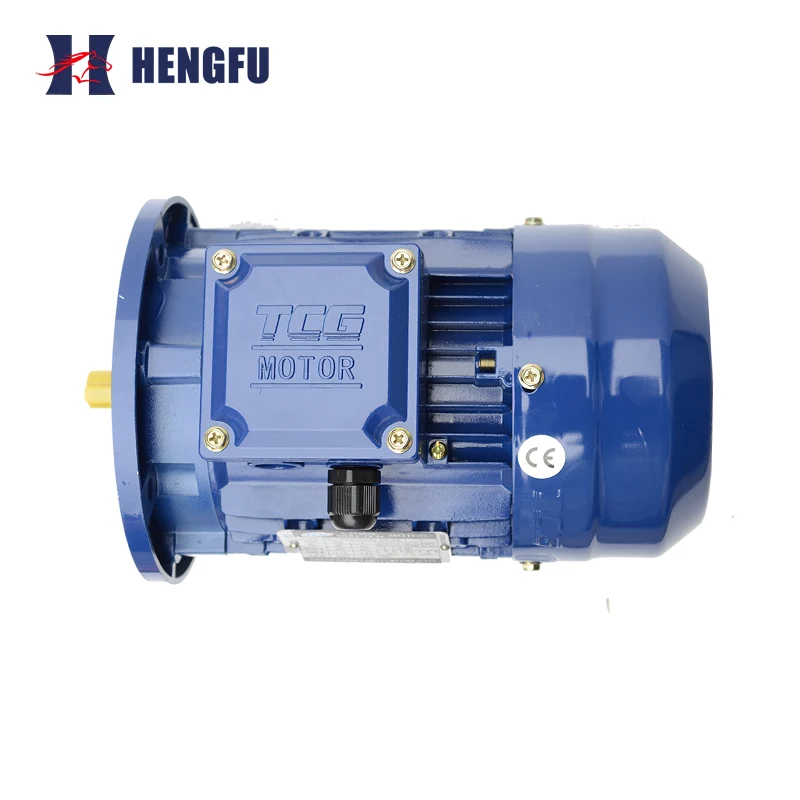

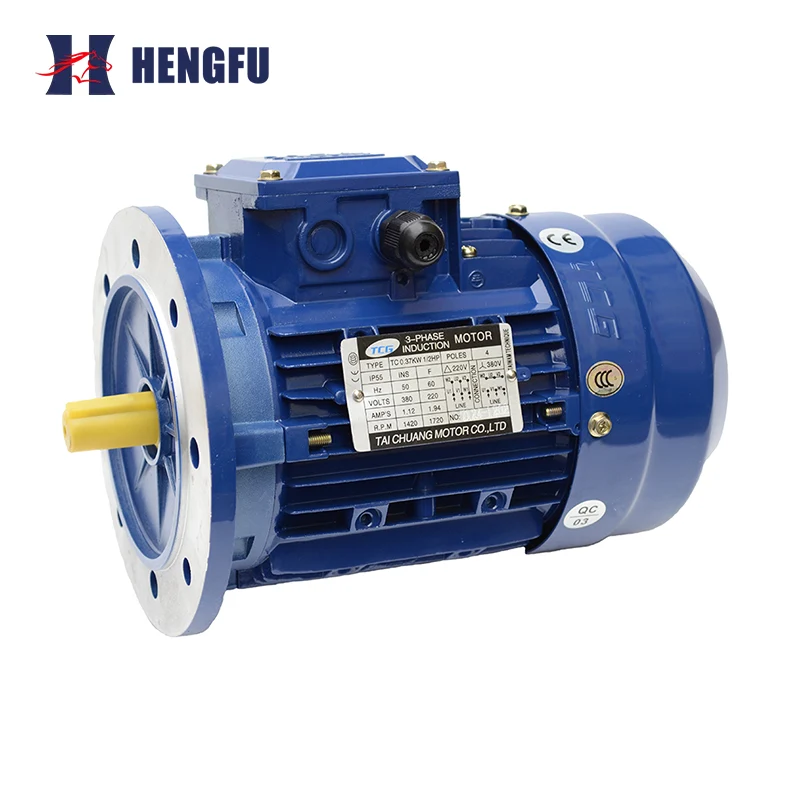

Aluminum Housing Motor B5 Flange Mounted

This Aluminum Housing Motor B5 Flange Mounted is a power source specifically designed for mechanical equipment requiring vertical layout or direct flange connection. The product features a high-strength die-cast aluminum alloy housing and a B5 large flange mounting standard. Not only is it aesthetically pleasing, but it also allows direct connection to the reducer or equipment via the large flange at the front, achieving a compact structure and smooth operation.

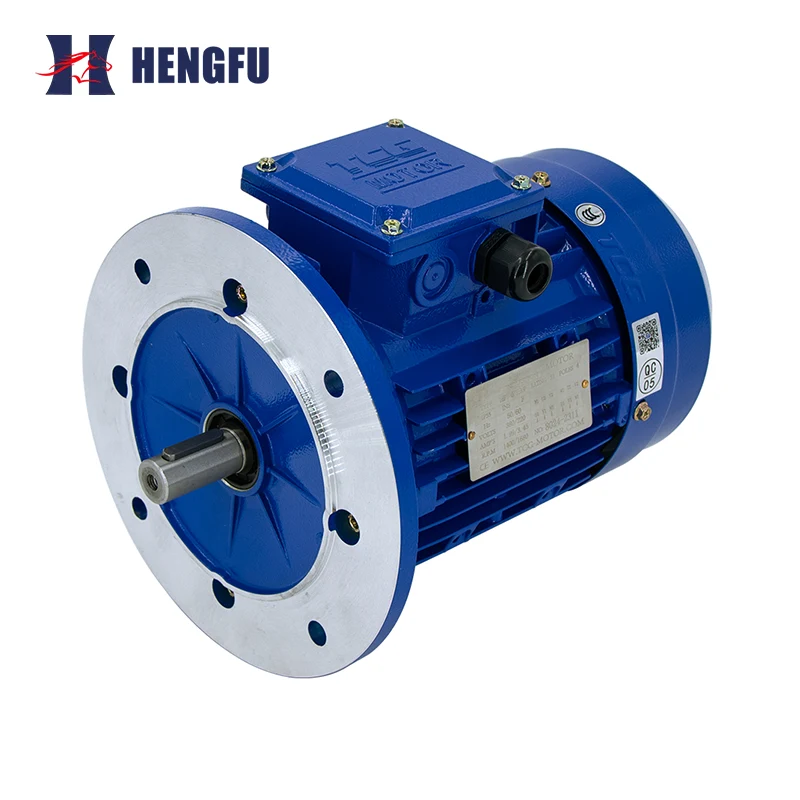

Direct Flange Connection (B5): The Aluminum Housing Motor B5 Flange Mounted adopts a B5 mounting method. The motor's front cover has a standard large flange, which is directly bolted to the equipment (such as a reducer or mixing tank). This structure eliminates alignment errors that may occur with foot mounting, resulting in a more secure connection and higher transmission efficiency.

Exceptional Cost-Effectiveness: Compared to traditional cast iron motors, the aluminum alloy housing reduces weight by approximately 30%, lowering raw material and transportation costs. Combined with standardized flange interfaces, no additional mounting brackets are required, saving you on equipment manufacturing and maintenance costs.

Excellent Heat Dissipation: Aluminum's thermal conductivity is more than three times that of cast iron. Combined with a unique heat dissipation fin design, it can quickly dissipate internal heat, effectively protecting the coils, extending motor life, and reducing long-term maintenance costs.

Product Advantages

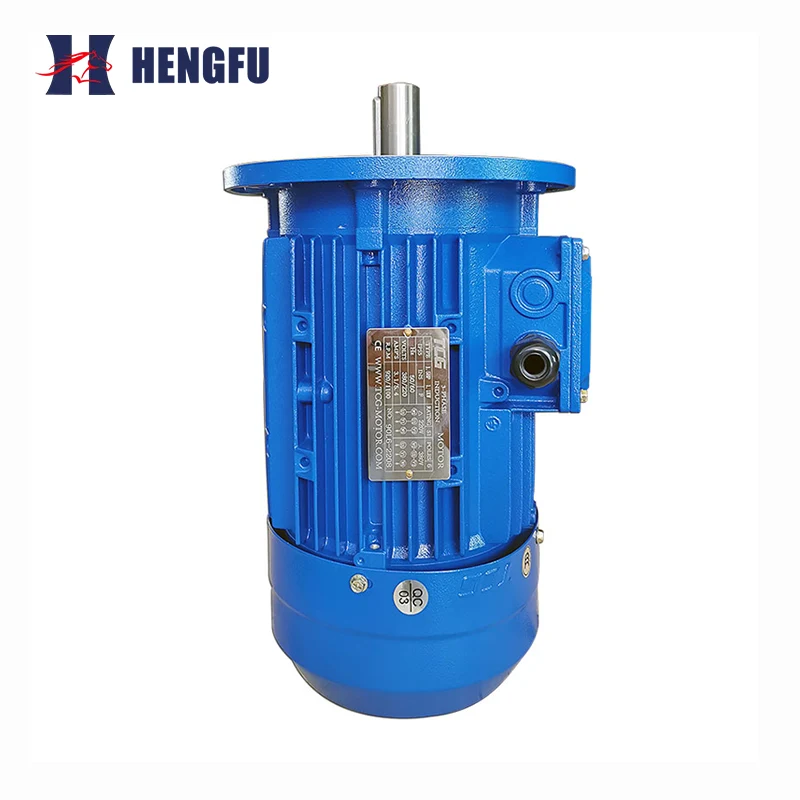

Space-saving: The B5 vertical structure allows for vertical motor mounting, saving floor space and making it ideal for automated equipment in confined spaces or requiring a compact layout.

Lightweight and Portable: The aluminum alloy construction significantly reduces motor weight (by over 40%), greatly simplifying installation, handling, and routine maintenance, and reducing worker workload.

Quiet and Stable Operation: Aluminum alloy naturally possesses excellent vibration absorption and damping properties, significantly reducing motor vibration and noise (by 8-12 decibels), creating a quieter workshop environment.

Versatile Design: Excellent ductility allows for die-casting into various sophisticated designs, with low processing costs and high production efficiency, making it the preferred "heart" for small to medium-sized general-purpose equipment.

Applications

The Aluminum Housing Motor B5 Flange Mounted, with its versatile installation and high cost-effectiveness, is the preferred choice for the following industries:

Fluid conveying equipment: water pumps, fans, air compressors.

Mixing and mixing equipment: mixers, reactors, food mixers.

Precision manufacturing equipment: packaging machinery, textile machinery, ceramic machinery, glass edging machines.

Automation and logistics: automated production line conveyors, sorting equipment.

Corporate Strength

Company Honors and Qualifications

Partner Brands

FAQ

Q1: What is the B5 mounting method?

A: B5 refers to a vertical large flange mounting for the motor. The motor's front cover has a standard mounting flange, which is directly bolted to the equipment. It does not require feet, has a compact structure, and is suitable for vertically arranged equipment.

Q2: What is the difference between B5 and B14?

A: B5 is a large flange mounting, typically used for higher power equipment or equipment requiring higher connection rigidity, with a larger flange diameter. B14 is a small flange mounting, typically used for lower power micro motors or specific small equipment. Both are flange connections, but the flange sizes and applicable power ranges differ.

Q3: How to maintain an aluminum-cased motor in a dusty environment?

A: In a dusty environment:

Frequency: It is recommended to perform routine dust cleaning once a week and deep cleaning once every two weeks.

Method: Use compressed air (≤0.3Mpa) to blow the cooling fins at an angle, avoiding direct airflow to prevent dust from entering the interior.

Lubrication: Dust can easily get into the bearings. It is recommended to shorten the grease replacement cycle from the usual 3000 hours to 1500-2000 hours.

Q4: Is this Aluminum Housing Motor B5 Flange Mounted suitable for use in humid environments?

A: The Aluminum Housing Motor B5 Flange Mounted has an IP54 protection rating, suitable for most industrial environments. However, it should be noted that aluminum-cased motors may experience surface corrosion in strong acid, strong alkali, or extremely humid environments. For harsh environments, it is recommended to consult customer service for surface anti-corrosion treatment or choose a cast iron motor.
