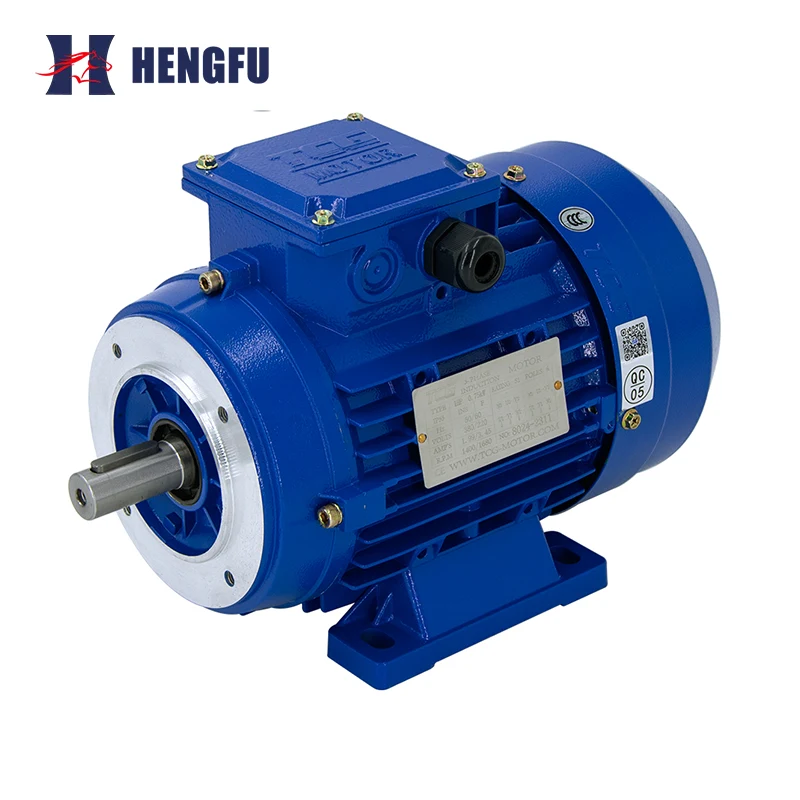

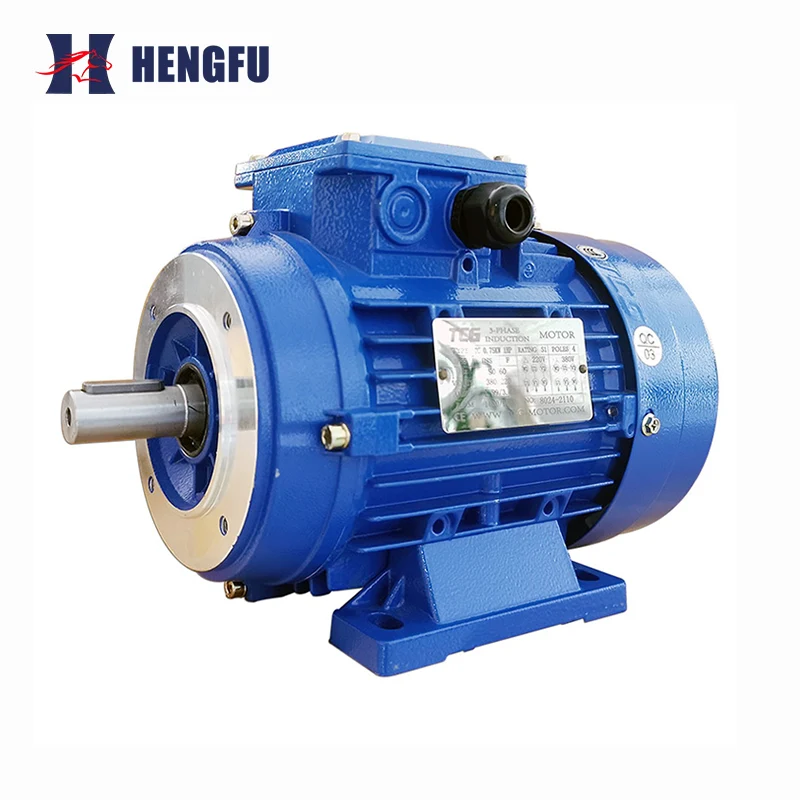

This Aluminum Housing Motor B34 Foot Mounted breaks away from the limitations of traditional single-installation methods, integrating the installation features of both B3 (horizontal) and B5 (vertical) motors, making it a highly cost-effective power choice for general-purpose machinery. The product uses a high-strength die-cast aluminum alloy housing, combining lightweight design with aesthetic appeal.
Dual Installation (B34): It features both foot mounting (B3) and flange mounting (B5) interfaces, allowing for both horizontal and vertical installation. Its strong adaptability significantly reduces equipment modification costs and inventory pressure for users.
Exceptional Cost-Effectiveness: Compared to traditional cast iron motors, the aluminum alloy housing is not only lighter (weight reduction of over 40%), but also has high processing efficiency. Combined with standardized production processes, it provides you with a product that offers superior performance at a highly competitive price.
Efficient Heat Dissipation: Aluminum's thermal conductivity is more than three times that of cast iron, allowing for rapid dissipation of internal heat, effectively protecting the coils, extending motor life, and reducing long-term maintenance costs.
|
TYPE |
Power |
RATED SPEED |
RATED |
POWER |
RATED |
START |
LOAD FACTOR |
Multiple of starting current |
WEIGHT |
|
KW |
r/min |
(A) |
COSΦ |
MN(N·M) |
Mst/MN |
MMAX/MN |
Is/In |
(KG) | |
|
2P |
|||||||||
|
TC5612 |
0.09 |
2800 |
0.32 |
0.68 |
0.31 |
2.3 |
2.3 |
6.0 |
2.6 |
|
TC5622 |
0.12 |
2800 |
0.38 |
0.71 |
0.41 |
2.3 |
2.3 |
6.0 |
3.1 |
|
TC5632 |
0.18 |
2800 |
0.65 |
0.70 |
0.62 |
2.3 |
2.3 |
6.0 |
3.6 |
|
TC6312 |
0.18 |
2800 |
0.51 |
0.8 |
0.62 |
2.3 |
2.3 |
5.5 |
3.8 |
|
TC6322 |
0.25 |
2800 |
0.67 |
0.81 |
0.86 |
2.3 |
2.3 |
5.5 |
3.8 |
|
TC6332 |
0.37 |
2800 |
1.05 |
0.78 |
1.26 |
2.3 |
2.3 |
6.1 |
4.2 |
|
TC7112 |
0.37 |
2800 |
0.98 |
0.81 |
1.26 |
2.3 |
2.3 |
6.1 |
5.4 |
|
TC7122 |
0.55 |
2800 |
1.33 |
0.82 |
1.88 |
2.3 |
2.3 |
6.1 |
5.9 |
|
TC7132 |
0.75 |
2800 |
1.82 |
0.83 |
2.56 |
2.3 |
2.3 |
6.1 |
6.4 |
|
TC8012 |
0.75 |
2800 |
1.78 |
0.83 |
2.56 |
2.3 |
2.3 |
6.1 |
8.1 |
|
TC8022 |
1.1 |
2800 |
2.49 |
0.84 |
3.75 |
2.3 |
2.3 |
7.0 |
9.3 |
|
TC-90S-2 |
1.5 |
2840 |
3.34 |
0.84 |
5.04 |
2.3 |
2.3 |
7.0 |
10.9 |
|
TC-90L-2 |
2.2 |
2840 |
4.69 |
0.85 |
7.40 |
2.3 |
2.3 |
7.0 |
13.8 |
|
TC-100L1-2 |
3 |
2860 |
6.14 |
0.87 |
10.0 |
2.3 |
2.3 |
7.5 |
19.6 |
|
TC-112M-2 |
4 |
2860 |
7.83 |
0.88 |
13.3 |
2.3 |
2.3 |
7.5 |
29 |
|
TC-132S1-2 |
5.5 |
2900 |
10.7 |
0.88 |
18.1 |
2.3 |
2.3 |
7.5 |
39 |
|
TC-13252-2 |
7.5 |
2900 |
14.2 |
0.88 |
24.7 |
2.3 |
2.3 |
7.5 |
47.5 |
Note: the above parameters are under condition:3 phases Y2-380V/50Hz
Widely used in general-purpose equipment requiring flexible installation and high cost-effectiveness, the Aluminum Housing Motor B34 Foot Mounted is the preferred choice for the following industries due to its universal installation method and high cost-effectiveness:
General Machinery: Air compressors, various small and medium-sized water pumps, fans, mixers.
Woodworking and Textile Machinery: Woodworking engraving machines, textile printing and dyeing equipment.
Packaging and Conveying: Automated production lines, packaging machinery.
Other Fields: Ceramic machinery, glass edging machines, medical instrument auxiliary equipment.
Service Scale: Since its establishment, it has successfully served over 50,000 customers, earning an excellent market reputation.
Brand Philosophy: Adhering to the principles of "Quality Wins the Market, Service Wins the Image, Innovation Wins the Future," it is committed to building a renowned brand of high-efficiency and energy-saving transmissions.
Selection Guidance: We provide professional Aluminum Housing Motor B34 Foot Mounted installation dimension guidance to ensure perfect matching with your equipment.
Technical Consultation: We offer technical support regarding installation torque, wiring methods, and more.
Service Commitment: We are committed to providing customers with comprehensive transmission solutions and perfect after-sales service.
Q1: What is the B34 mounting method?
A: B34 refers to a motor that combines the structural characteristics of both B3 (horizontal foot mounting) and B5 (vertical flange mounting). This means the motor can be installed horizontally on the ground like a B3 motor, or vertically via a flange like a B5 motor, offering excellent versatility and cost-effectiveness.
Q2: Why are aluminum-cased motors cost-effective?
A: Aluminum-cased motors utilize die-casting technology, resulting in high production efficiency and lightweight construction (weight reduction of over 40%), leading to lower transportation costs. Although aluminum has a higher unit price, its advantages, such as rapid heat dissipation (energy saving), long lifespan, and low maintenance, result in lower overall long-term costs, making it a highly cost-effective power choice.
Q3: Are aluminum-cased motors susceptible to corrosion?
A: While aluminum alloys are indeed less corrosion-resistant than cast iron, our motors undergo special surface treatment under normal industrial conditions (without strong acids or alkalis) to fully meet usage requirements. For highly corrosive environments (such as chemical plants), we recommend consulting customer service to customize a special protective coating.
Q4: How is the heat dissipation performance of this Aluminum Housing Motor B34 Foot Mounted?
A: Excellent. Aluminum has three times the thermal conductivity of cast iron, allowing it to quickly conduct heat from inside the motor to the cooling fins for dissipation. This not only makes the motor more compact but also effectively prevents overheating and extends the lifespan of insulation materials and bearings.
