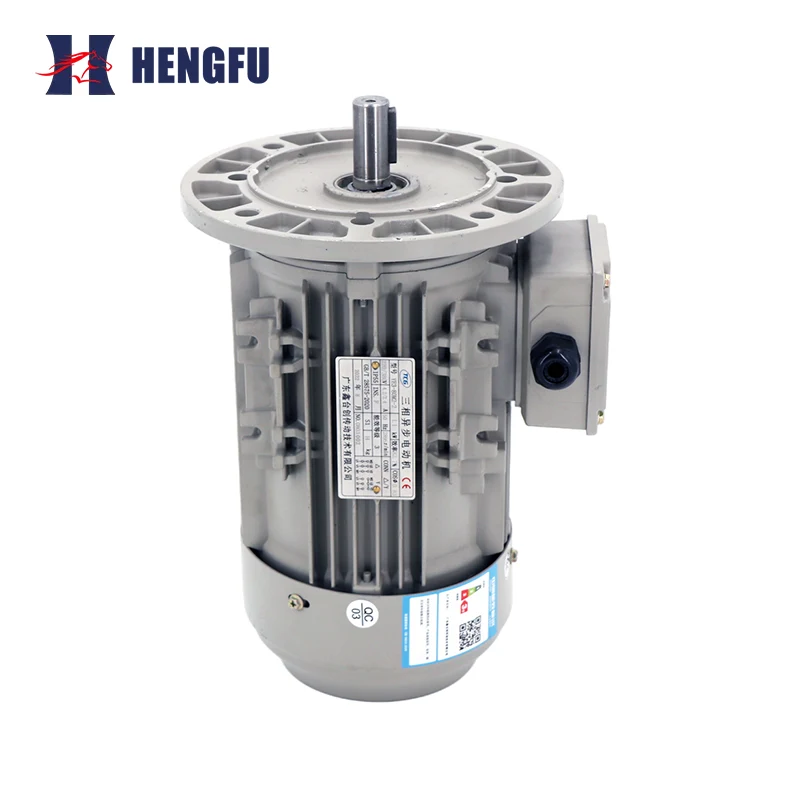

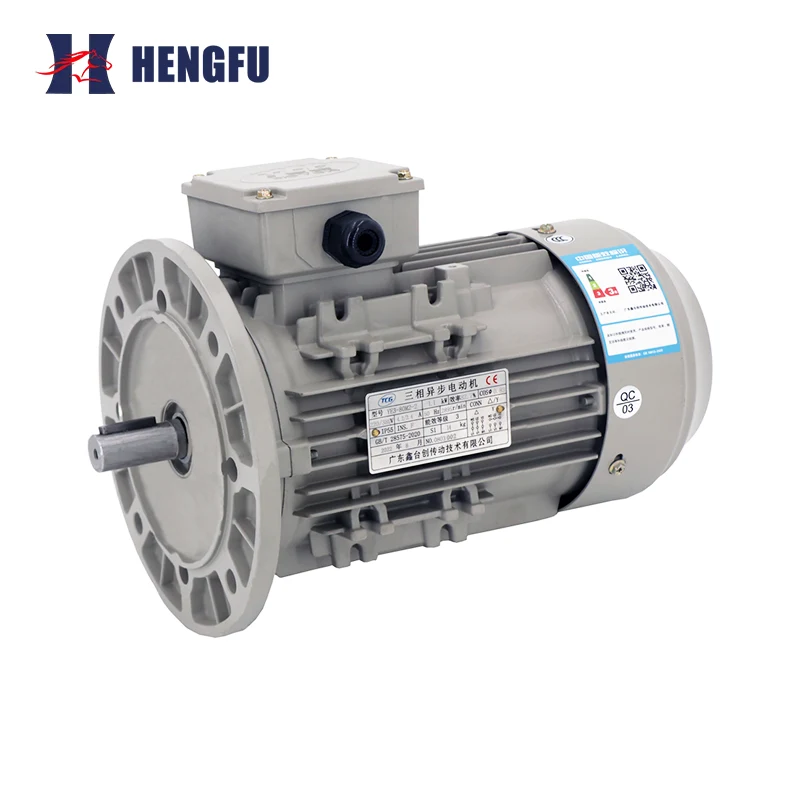

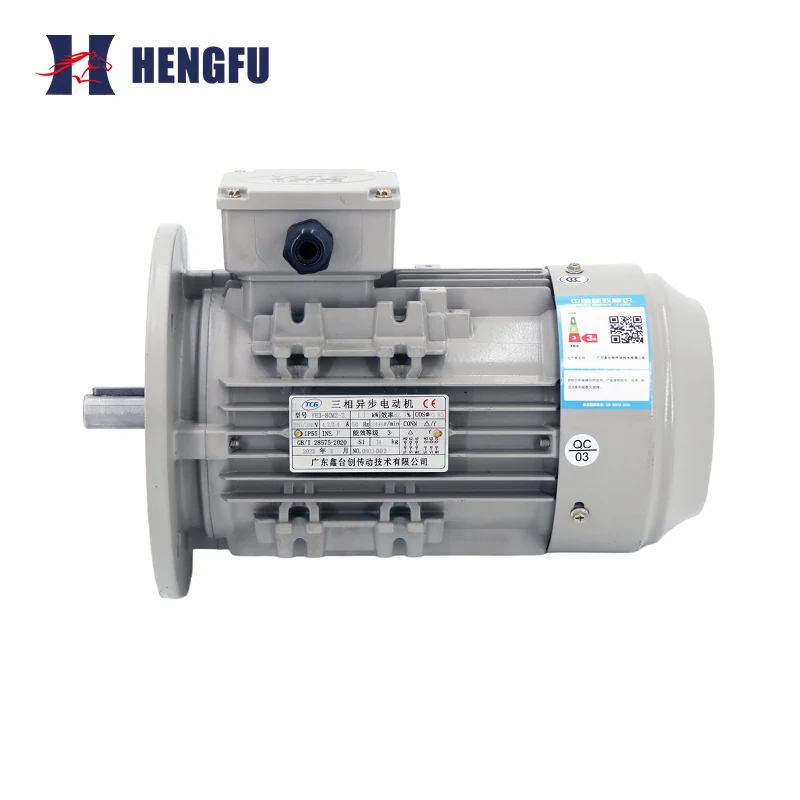

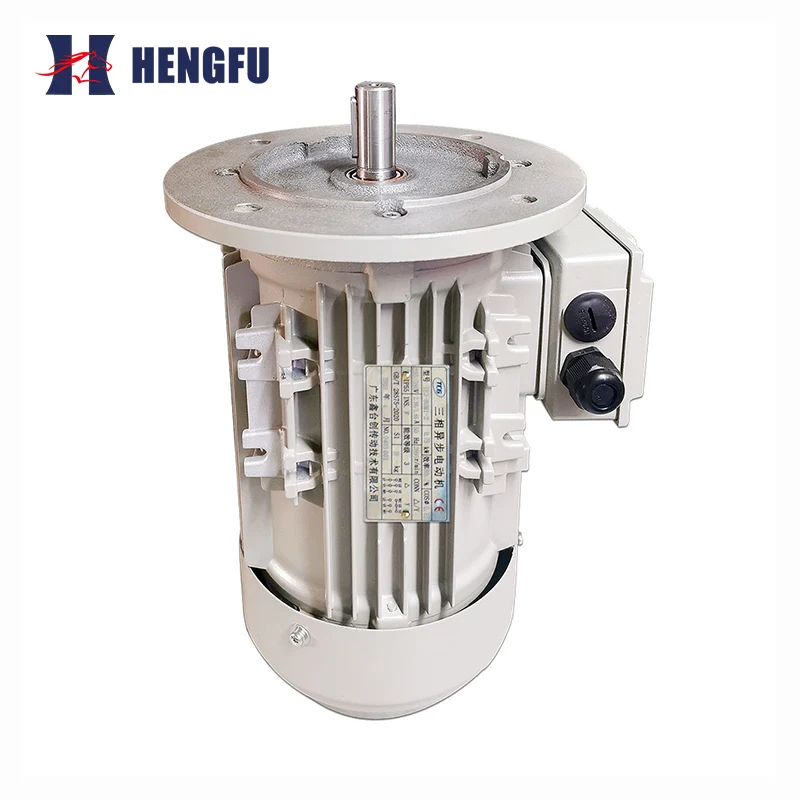

High Efficiency Motor B5 Flange Mounted

The High Efficiency Motor B3 Foot Mounted is the latest generation of energy-saving products that meet the national IE3 ultra-high efficiency standard (GB18613-2012). Compared with the traditional Y, Y2, and Y3 series motors, the YE3 High Efficiency Motor B5 Flange Mounted significantly reduces power loss throughout its entire life cycle through optimized electromagnetic design and the use of high-quality materials, helping enterprises to significantly reduce operating costs and carbon emissions.

Product Specifications

Core strengths

1.Significant Energy Savings

• Reduced Losses: By employing high-permeability, low-loss cold-rolled silicon steel sheets and optimizing rotor casting processes, the no-load and load losses of the High Efficiency Motor B3 Foot Mounted are significantly reduced.

• High Efficiency: Under rated load, the efficiency of the High Efficiency Motor B3 Foot Mounted is typically 2%-7% higher than that of ordinary motors. This means that for every 100 kWh of electricity consumed, the YE3 motor can output more mechanical energy than older motors, directly reducing electricity costs.

2.Low Carbon & Economic Benefits

• Reduced Carbon Emissions: Saving 1 kWh of electricity is equivalent to reducing approximately 0.997 kg of carbon dioxide emissions. Using High Efficiency Motor B3 Foot Mounted is a direct way for businesses to achieve green production and fulfill their social responsibility.

• Low Life Cycle Cost: Although the purchase cost of a High Efficiency Motor B3 Foot Mounted may be slightly higher than that of a regular motor, its extremely low operating losses typically offset the price difference in electricity costs within the first few hundred to a thousand hours of operation, with subsequent operating time representing pure profit savings.

3.Cast Iron Housing & Heat Dissipation

• According to the documentation, the High Efficiency Motor B3 Foot Mounted features a cast iron casing. Compared to other materials, cast iron not only has higher mechanical strength but also better heat dissipation and more uniform heat conduction.

• Lighter weight: Compared to the older motor, the High Efficiency Motor B3 Foot Mounted optimizes the structure while maintaining strength, achieving a lightweight design that facilitates transportation and installation.

4. High Reliability

• IP55 Protection: The motor is completely protected against dust ingress and water spray from any direction, making it suitable for harsh environments such as petroleum, chemical, and mining industries.

• High Durability: Utilizing an F-class insulation system, it operates stably even in high-temperature environments. Long bearing life results in maintenance-free or extremely low-maintenance operation.

Applicable scenarios

• Harsh Environments: Due to its high IP55 protection rating and cast iron housing, it is particularly suitable for long-term operation in dusty, humid, or corrosive environments.

• Continuous Duty: Suitable for industrial equipment requiring continuous operation for extended periods, such as fans, pumps, compressors, and conveyors.

Model Description

Understanding the meaning of the model number will help you quickly select the right model:

Y: Three-phase asynchronous motor series code

E3: Product design serial number (representing the third-generation high-efficiency and energy-saving design, i.e., the YE3 series)

160: Center height of the motor frame (mm), e.g., 160mm

M: Frame length (S=short frame, M=medium frame, L=long frame)

2: Number of poles (2-pole motor, synchronous speed 3000rpm)

Why is the High Efficiency Motor B3 Foot Mounted the Top Choice for Industrial Energy Saving?

In industrial production, electric motors consume approximately 40% of the world's electricity. The YE3 High Efficiency Motor B5 Flange Mounted, representing the IE3 energy efficiency rating, is a mainstream product conforming to the globally promoted Minimum Performance Standard (MEPS). Choosing a YE3 High Efficiency Motor B3 Foot Mounted is not only a compliant choice in response to national energy conservation and emission reduction policies, but also a strategic investment for enterprises to reduce production costs and enhance market competitiveness.
