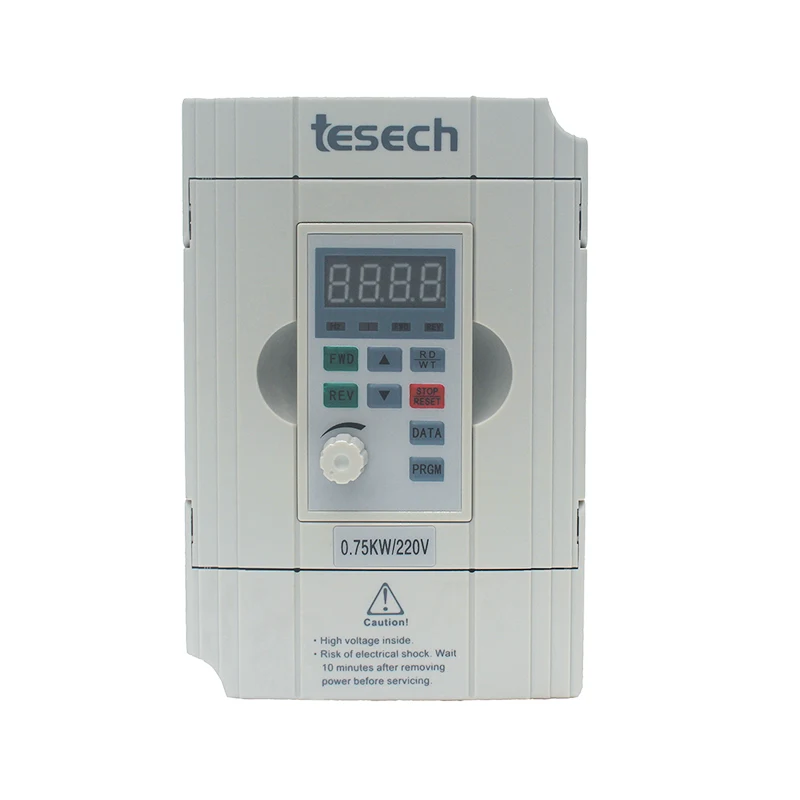

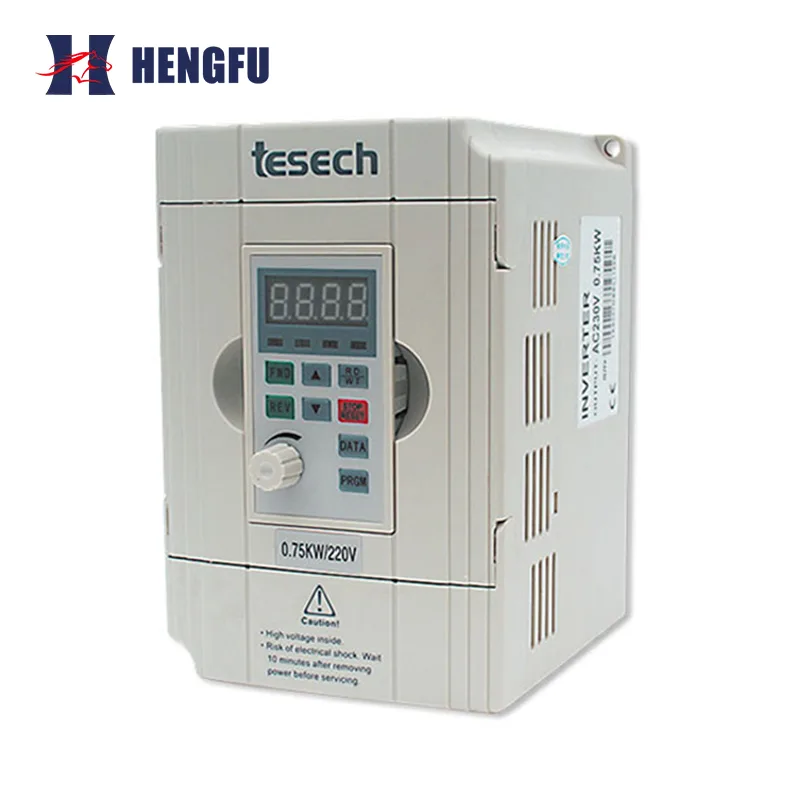

0.75kW General Purpose Variable Frequency Drive

The 0.75kW General Purpose Variable Frequency Drive exhibits significant industrial-grade differentiated advantages:

Vector Core, High Torque at Low Frequency:It exclusively adopts the SVC vector control algorithm, supporting motor parameter self-identification (stationary/full tuning) even at 0.75KW power. Compared to ordinary V/F inverters, it offers more stable torque at low speeds, avoiding issues like "unable to move" or "speed fluctuations."

Unified Platform Across All Power Ranges:It possesses the same industrial control logic as medium- and high-power inverters. It supports PID process control, multi-speed programming (16 speeds), and basic PLC functions, enabling complex automated processes even at 0.75KW, not just simple start-stop speed regulation.

Industrial-Grade Protection Design:Utilizing a wall-mounted iron shell structure (Type A/Type M), it offers superior heat dissipation compared to mini inverters with plastic shells, effectively resisting dust and electromagnetic interference in industrial environments, ensuring reliable 24/7 continuous operation.

Full-port communication, future scalability: Standard RS-485 communication interface (supports Modbus-RTU protocol), even a 0.75KW standalone device can be easily connected to a host computer monitoring system, and an interface is reserved for industrial Internet of Things (IIoT) applications.

Product Technical Parameters

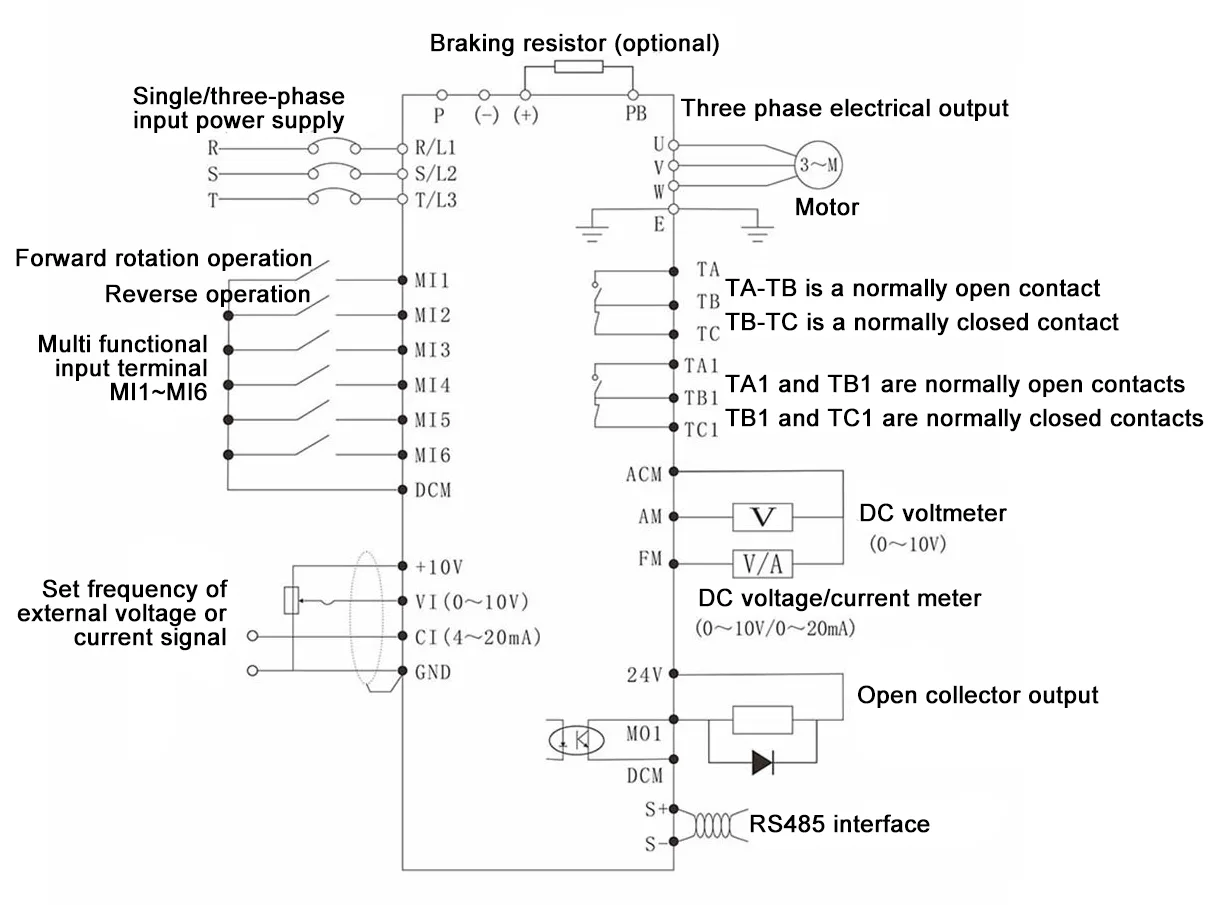

Basic wiring diagram

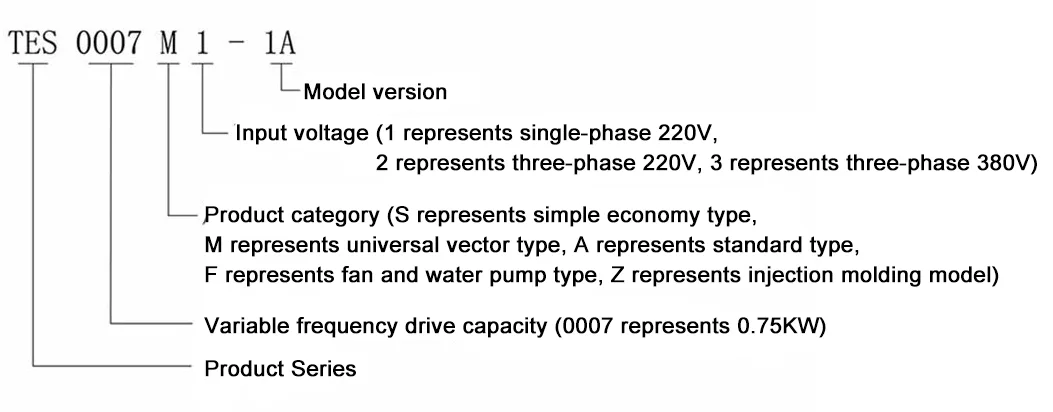

Product Model Description

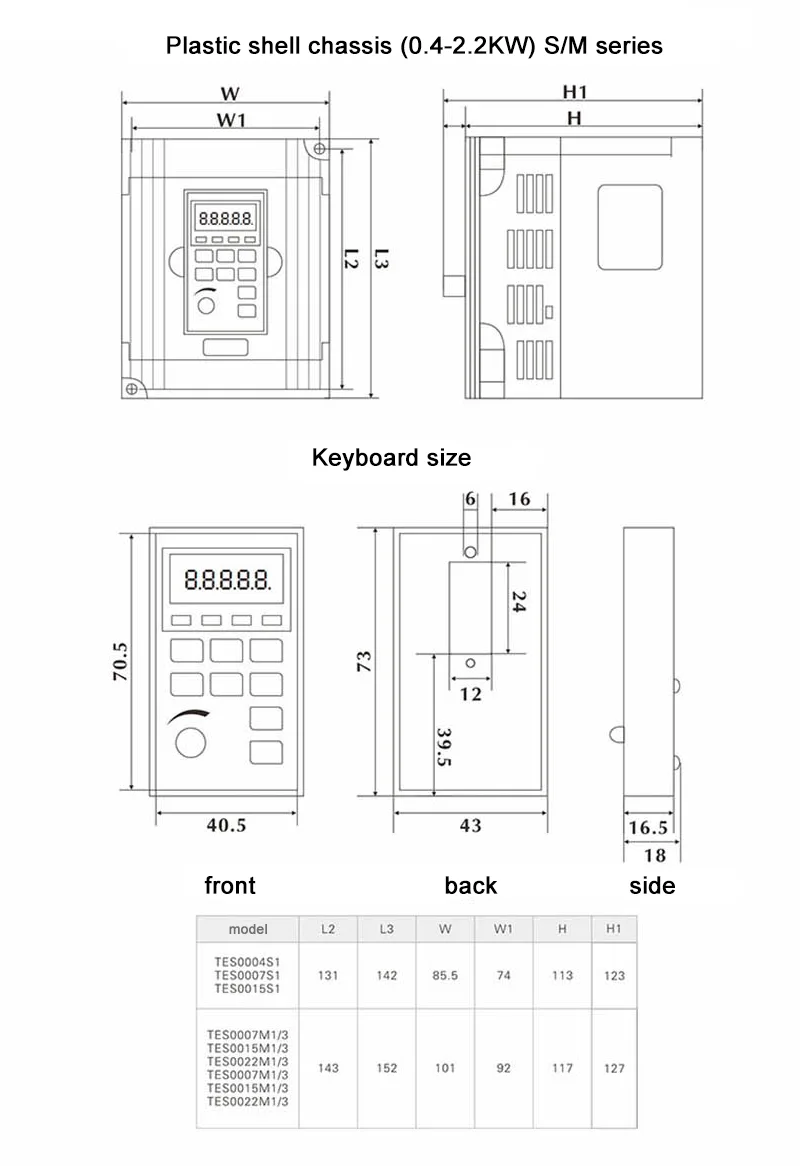

Product Outline Drawing

Application Industries and Scenarios

The 0.75kW General Purpose Variable Frequency Drive, with its high torque and high reliability, is widely used in the following fields:

Precision Machinery: CNC engraving machines, small grinding machines, packaging machinery, mixers.

Automation Equipment: Conveyor belt systems, automatic door control systems, printing machinery.

HVAC and Water Supply: Small central air conditioning fans, auxiliary pump control for constant pressure water supply systems.

Textile Printing and Dyeing: Small drawing machines, winding equipment (thanks to its excellent torque control capabilities).

Installation and Usage Instructions

1. Mechanical Installation

Environmental Requirements: Ambient temperature must be controlled between -10°C and +50°C, and humidity below 90%RH (no condensation).

Space Reservation: For wall-mounted installation, at least 100mm of ventilation space must be reserved above and below the machine. Do not block the air inlet.

2. Electrical Connection

Main Circuit: Connect the power input to the power terminals (R/S/T), and connect the motor to the motor terminals (U/V/W). Reverse connection is strictly prohibited!

Braking Configuration: The 0.75KW model typically has a built-in braking unit. For rapid braking, please connect an external braking resistor (connected to the P/+ and PB terminals).

3. Quick Debugging Procedure

1). Parameter Reset: Set F0-27 = 3 to restore factory settings.

2). Setting Motor Parameters: Set F2-01 (Power) to F2-05 (Speed) according to the motor nameplate.

3). Select Control Mode: Set F0-01 = 0 to select Vector Control (SVC), or F0-01 = 2 to select V/F Control.

4). Parameter Identification (Recommended): Set F2-11 = 2 (Full Tuning) or 1 (Static Tuning), and press the Run button to allow the inverter to automatically learn the motor parameters.

5). Operation Test: Control start/stop via the RUN button on the panel or external terminals, and adjust the potentiometer or buttons to set the frequency.

FAQ

Q1: Can the 0.75kW General Purpose Variable Frequency Drive a heavy load start?

A: Absolutely. The 0.75kW General Purpose Variable Frequency Drive supports vector control (SVC), with starting torque up to 150%. For heavy-duty equipment such as mixers or crushers with a power output of 0.75KW, it is recommended to set the motor nameplate parameters in group F2 and perform motor parameter identification in F2-11 to obtain optimal low-speed torque performance.

Q2: Does this inverter have a built-in braking resistor?

A: According to the technical specifications in the manual, models of 37KW and below (including 0.75KW) have a built-in braking unit. Users only need to purchase an external braking resistor and connect it to the P(+) and PB terminals; no additional braking unit is required, saving installation costs.

Q3: How to control the motor's forward and reverse rotation?

You can control it in several ways:

Panel control: Directly press the FWD (forward) or REV (reverse) button on the operation panel.

Terminal control: Connect to the MIn terminal via an external switch (F5-00 and F5-01 must be set to forward/reverse function).

Parameter switching: Setting F0-09 directly changes the running direction command without needing to change the motor wiring.

Q4: Does the frequency converter generate a lot of heat?

A: The 0.75KW model generates relatively little heat, but to ensure its lifespan, it must be installed vertically with unobstructed top and bottom ventilation. If the ambient temperature exceeds 40°C, it is recommended to derating the unit or installing a fan for forced cooling.
