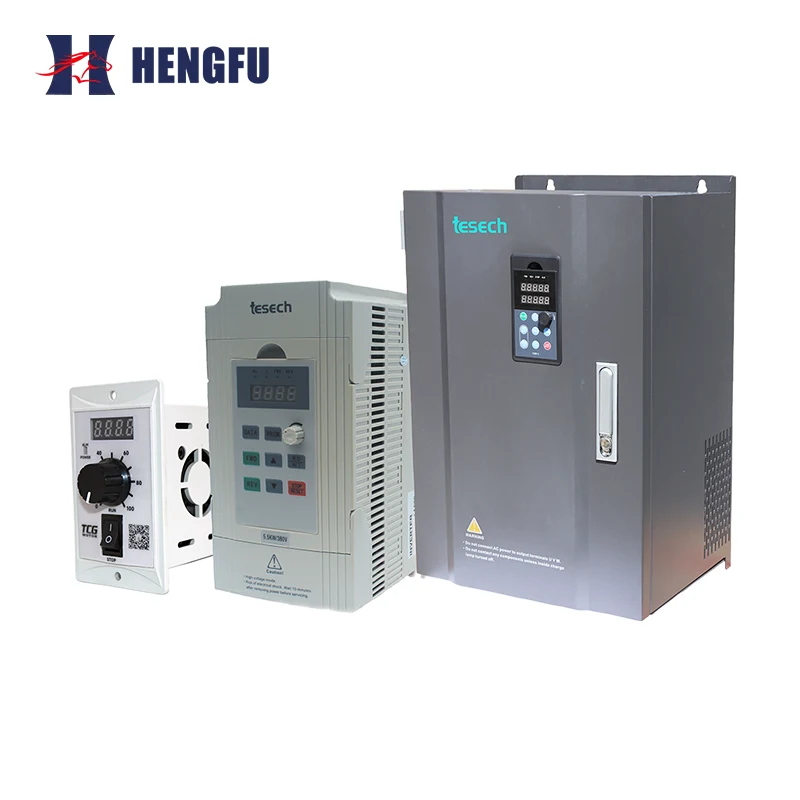

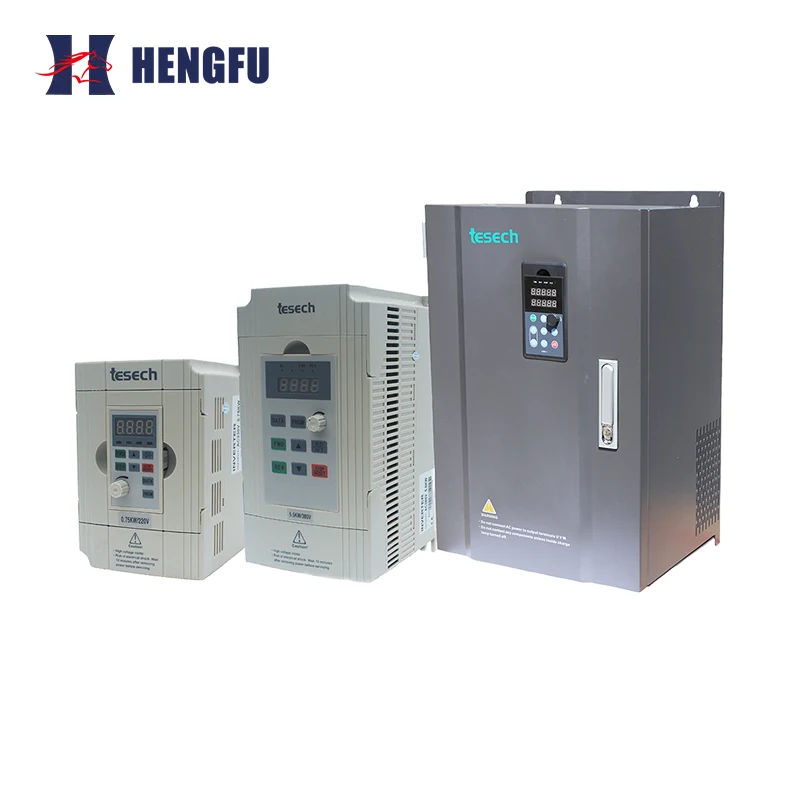

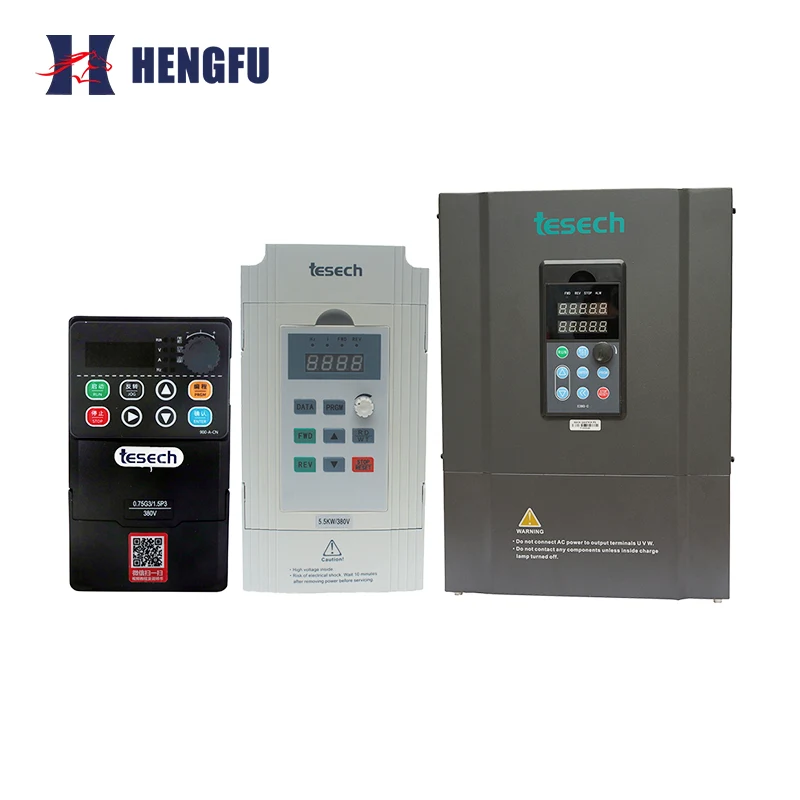

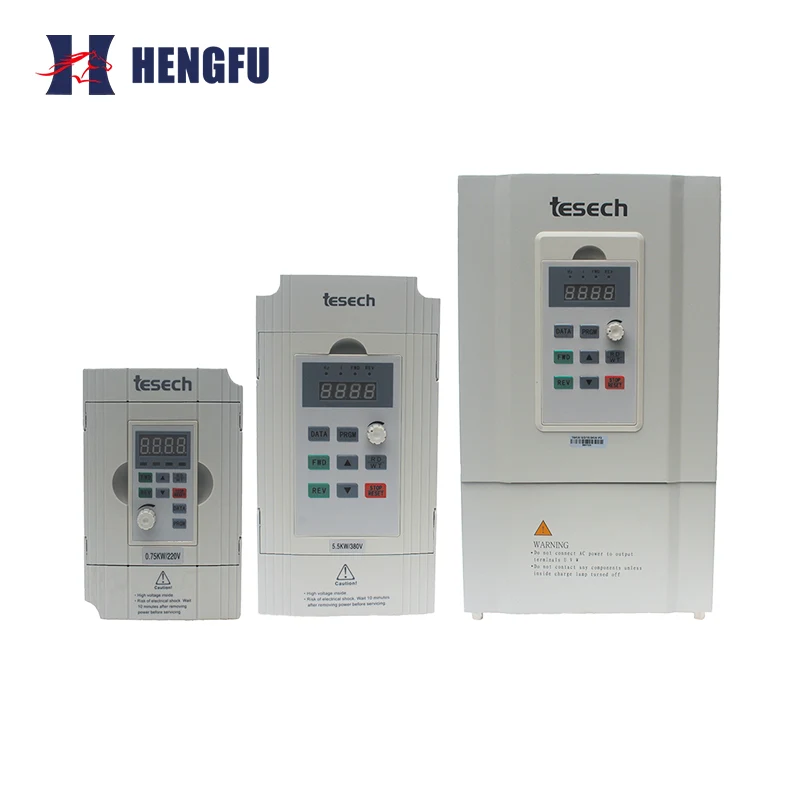

The Hengfu 0.4kW to 400kW Variable Frequency Drive is engineered to balance high reliability with industrial economic efficiency. Utilizing an adaptive Space Voltage Vector algorithm, it delivers a perfect sine wave output across all frequencies, ensuring stable motor operation even with ±20% grid voltage fluctuations. Each unit undergoes a rigorous 8S-managed production process, including a specialized three-proof paint coating to thrive in harsh environments like textiles, papermaking, and cement. With an independent air-duct design and a high overload capacity, this drive is the ultimate choice for global machinery manufacturers seeking robust motor control solutions.
Siemens IGBT Core Technology: Powered by Siemens IGBT modules and large-scale motor control ICs, ensuring high machine stability and rapid response.
Advanced Protection System: Provides 18 types of fault protection, covering everything from overvoltage to short-circuiting for comprehensive motor safety.
Smart Operation & Integration: Features a clear LED user menu, RS485 Modbus-RTU protocol, and PID closed-loop control for seamless PLC connection.
Rugged Industrial Build: Independent cooling ducts and triple-conformal coating protect internal circuits from dust and corrosive gases.
Cost-Effective Scalability: Optimized modular design and large-scale production allow us to offer factory-direct pricing with high-end performance.
Energy-Saving Startup: High-starting torque and smooth speed tracking prevent mechanical stress and reduce peak power demand.

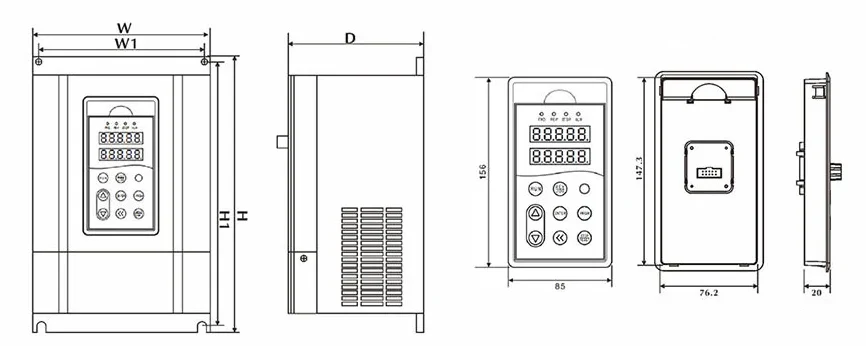

| power | H | W | D | H1 | W1 | Aperture |
| 11KW 15KW | 272 | 160 | 201 | 259 | 146 | 5.2 |
| 18.5KW 22KW | 313 | 211 | 205 | 299 | 196 | 6.5 |
| 30KW 37KW | 418 | 252 | 206.9 | 399 | 201 | 9 |
| 45KW 55KW | 603 | 299 | 276.7 | 581 | 240 | 9 |
| 75KW 93KW 110KW | 643 | 338 | 312 | 619 | 280 | 11 |
| 132KW 160KW 185KW 200KW | 803 | 410 | 383.7 | 776 | 320 | 12 |
| 220KW 250KW 280KW 315KW | 1078.8 | 650 | 430.2 | 1046.8 | 520 | 13 |
| 355KW 400KW 450KW | 1320 | 800 | 438 | 1280 | 700 | 16 |
| 500KW 560KW 630KW | 1500 | 1028 | 450 | 1460 | 800 | 16 |
| name say | model | Function | |||||||||
| Built-in braking unit | Product model numbers ending in "B" | Single-phase 0.4~2.2KW built-in unit, three-phase 0.4~15KW built-in braking unit. | |||||||||
| External braking unit | TES390-B | Used to suppress excessive voltage rise caused by rapid speed drop of the frequency converter, and at the same time... Load generation suppression | |||||||||
| reactor | TES390-DK | Used to suppress higher harmonics and improve the power factor. | |||||||||
| Modbus communication card | TES390-485 | RS485 communication interface | |||||||||
| External LED control panel | TES390-KE1-A(B) | External LED display and operation keyboard | |||||||||
| Control panel extension cable | TES390-CAB | It can be connected to an external LED control panel, and a cable up to 15 meters long is provided. | |||||||||
The heart of the Hengfu 0.4kW to 400kW Variable Frequency Drive lies in its Self-Adaptive Space Voltage Vector Algorithm. This advanced logic ensures:
Low-Frequency High-Torque: Achieve up to 150% rated torque at just 0.5Hz, providing powerful startup capability for heavy-load machinery like stone crushers and mixers.
Grid Voltage Resilience: Designed to handle unstable power environments, our VFDs operate reliably within a ±20% voltage fluctuation range, making them ideal for regions with aging power infrastructure.
Instantaneous Power Failure Ride-Through: Through dynamic DC bus voltage control, the inverter can maintain operation during brief power dips, preventing costly production downtime.
Textile & Dyeing: Our specialized triple-conformal coating (anti-dust, anti-moisture, anti-mold) protects the PCB from corrosive gases and cotton lint, ensuring long-term stability in high-humidity mills.
HVAC & Water Treatment: Built-in PID controllers allow for seamless closed-loop pressure or flow control, significantly reducing energy consumption for pumps and fans by up to 30-50%.
CNC & Metalworking: High-speed response and RS485 Modbus-RTU communication enable synchronized control for precision lathes and wire-drawing machines.
Heavy Industry: For units above 18.5kW, we optimize the internal layout for maximum heat dissipation, supporting continuous heavy-duty cycles in cement and mining operations.
How to Choose the 0.4kW to 400kW Variable Frequency Drive for Your Project?
G-Type: Ideal for constant torque loads like conveyors and compressors.
P-Type: Optimized for variable torque loads, offering enhanced energy savings for fluid control.
Q: Does it support external braking?
A: Yes, units under 18.5kW have a built-in braking unit. For 18.5kW and above, we provide easy-access terminals for external braking resistors.
Q: Can I customize the software for my specific machine?
A: Absolutely. As a source factory, we offer OEM/ODM services, including customized firmware, specialized control logic, and private labeling.
Q: Is the cooling fan replaceable?
A: Yes, the 0.4kW to 400kW Variable Frequency Drive features a modular fan design for easy cleaning and quick tool-less replacement.
