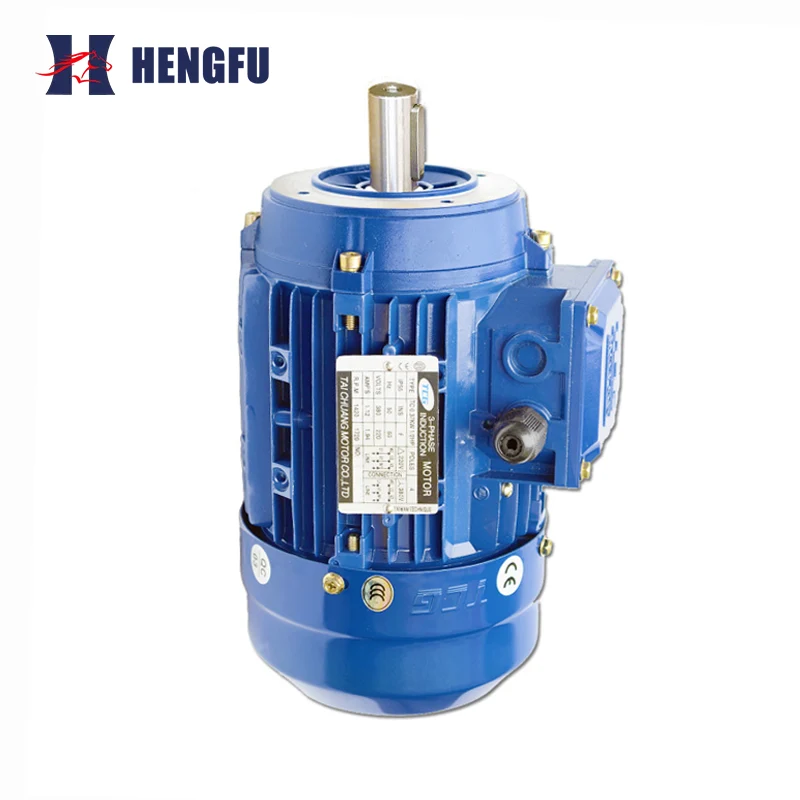

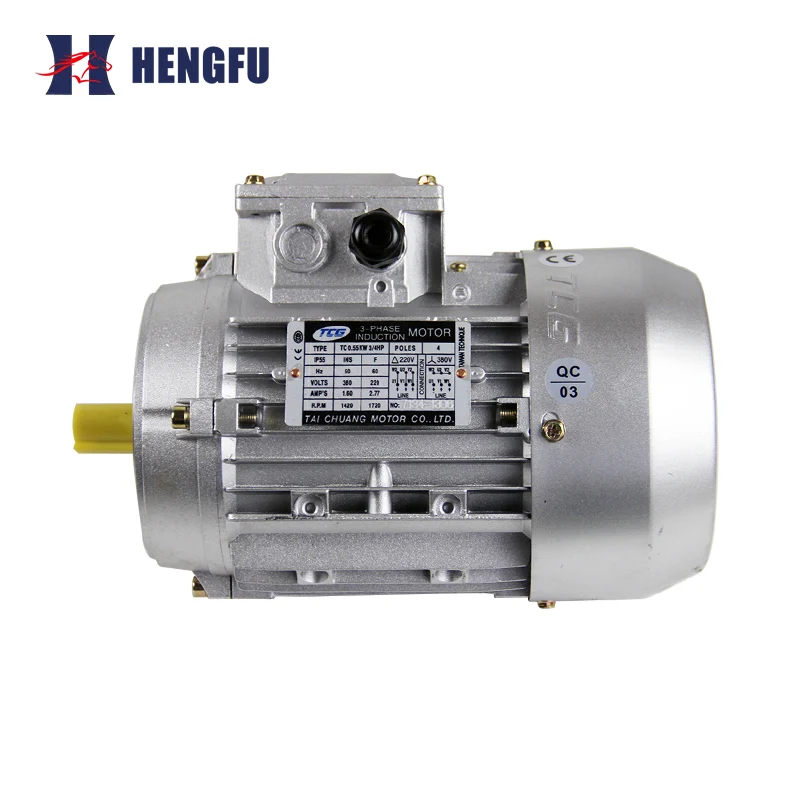

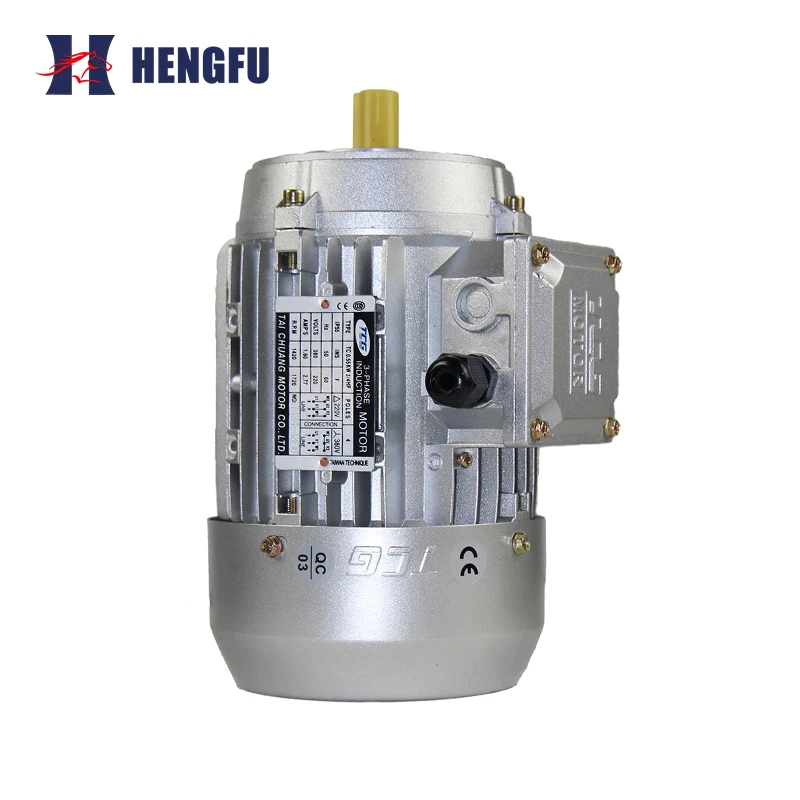

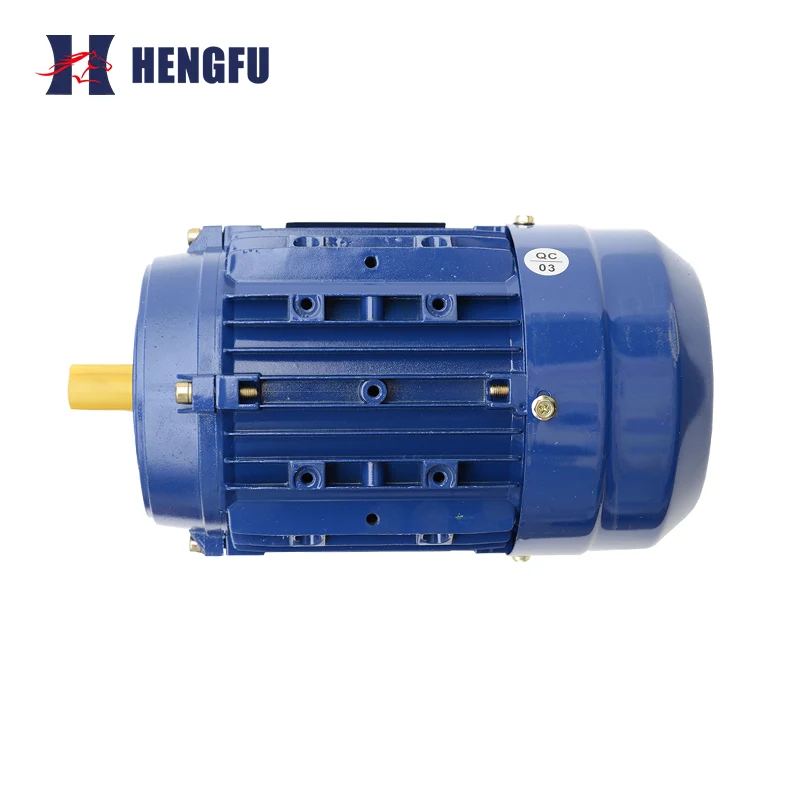

Aluminum Housing Motor B14 Flange Mounted

This Aluminum Housing Motor B14 Flange Mounted is a power source specifically designed for mechanical equipment requiring vertical mounting or direct flange connection. Featuring a high-strength die-cast aluminum alloy housing and conforming to the B14 flange mounting standard, it boasts not only an elegant appearance but also allows for direct connection to reducers or equipment via the flange, achieving a compact structure and smooth operation.

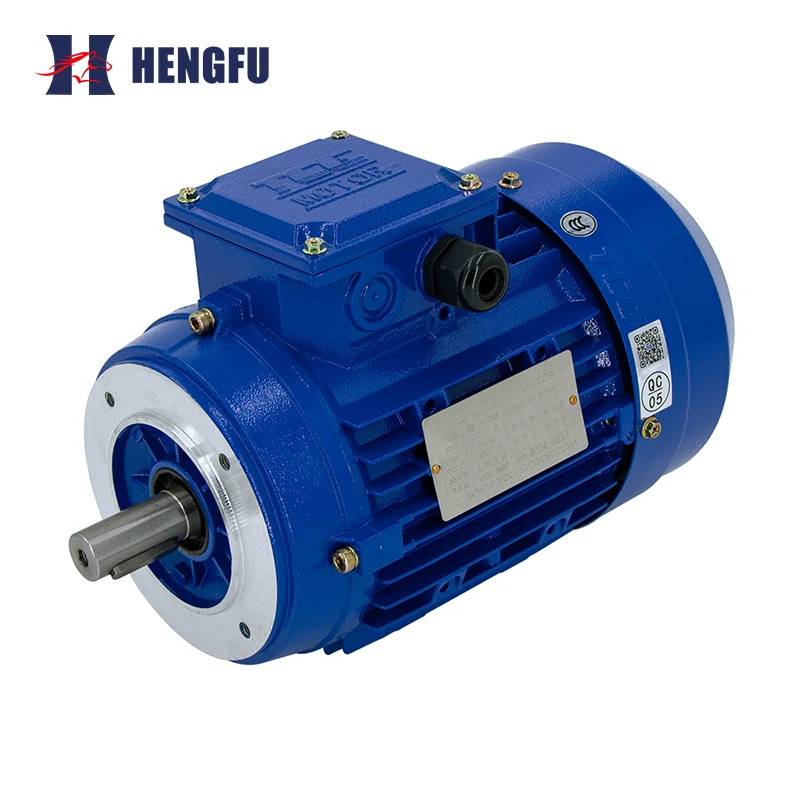

Direct Flange Connection (B14): Utilizing the B14 mounting method, the motor's front cover features a mounting flange, allowing direct bolt connection to equipment (such as reducers or mixing tanks). This structure eliminates alignment errors that can occur with foot mounting, resulting in a more secure connection and higher transmission efficiency.

Exceptional Cost-Effectiveness: Compared to traditional cast iron motors, the aluminum alloy housing reduces weight by approximately 30%, lowering raw material and transportation costs. Combined with standardized flange interfaces, no additional mounting brackets are required, saving on equipment manufacturing and maintenance costs.

Superior Heat Dissipation: Aluminum's thermal conductivity is more than three times that of cast iron. Coupled with a unique heat dissipation fin design, it rapidly dissipates internal heat, effectively protecting the coils, extending motor life, and reducing long-term maintenance costs.

Product Advantages

Space-saving: The B14 vertical structure allows for vertical motor mounting, saving floor space and making it ideal for automated equipment in confined spaces or requiring a compact layout.

Lightweight and Portable: The aluminum alloy construction significantly reduces the motor's weight, greatly facilitating installation, handling, and routine maintenance, and reducing worker workload.

Quiet and Stable Operation: Aluminum alloy naturally possesses excellent vibration absorption and damping properties, significantly reducing motor vibration and noise (by 8-12 decibels), creating a quieter workshop environment.

Versatile Design: This Aluminum Housing Motor B14 Flange Mounted has excellent ductility, suitable for die-casting into various sophisticated designs. Its low processing cost and high production efficiency make it the preferred "heart" for small to medium-sized general-purpose equipment.

Applications

The Aluminum Housing Motor B14 Flange Mounted, with its versatile installation and high cost-effectiveness, is the preferred choice for the following industries:

Fluid conveying equipment: Water pumps, fans, air compressors (fast heat dissipation is key).

Mixing and mixing equipment: Mixers, reactors, food mixers (direct flange connection structure ensures stability).

Precision manufacturing equipment: Packaging machinery, textile machinery, ceramic machinery, glass edging machines (low noise ensures a safe environment).

Automation and logistics: Automated production line conveyors, sorting equipment (lightweight for easy handling).

Corporate Strength

Company Honors and Qualifications

Partner Brands

FAQ

Q1: What is the B14 mounting method?

A: B14 refers to a vertical flange mounting method for the motor. The front cover of the motor has a standard mounting flange (such as Φ90mm, Φ110mm, etc.), which is directly fixed to the equipment (such as a reducer, mixing tank) with bolts. It does not require feet, has a compact structure, and is suitable for vertically laid equipment.

Q2: Why is this product cost-effective?

A: The Aluminum Housing Motor B14 Flange Mounted integrates the advantages of direct flange connection and lightweight aluminum alloy. It eliminates the cost of an additional mounting base and is lighter (30%-40% lighter than iron shells), resulting in lower transportation and installation costs. Although aluminum material is more expensive per unit, its advantages such as fast heat dissipation (energy saving), long lifespan, and less maintenance lead to lower overall long-term costs.

Q3: How to maintain the aluminum shell motor in a dusty environment?

A: In dusty environments (such as cement, flour mills):

Frequency: It is recommended to perform routine dust cleaning once a week and deep cleaning once every two weeks.

Method: Use compressed air to blow the heat sink at an angle, avoiding direct airflow to prevent dust from entering the interior.

Lubrication: Dust easily gets into the bearings; it is recommended to shorten the grease replacement cycle from the usual 3000 hours to 1500-2000 hours.

Q4: Is this Aluminum Housing Motor B14 Flange Mounted suitable for use in humid environments?

A: The standard configuration B14 motor has an IP54 protection rating, suitable for most industrial environments. However, it should be noted that aluminum-cased motors may experience surface corrosion in strong acid, strong alkali, or extremely humid environments. For harsh environments, it is recommended to consult customer service for surface anti-corrosion treatment or choose a cast iron motor.
