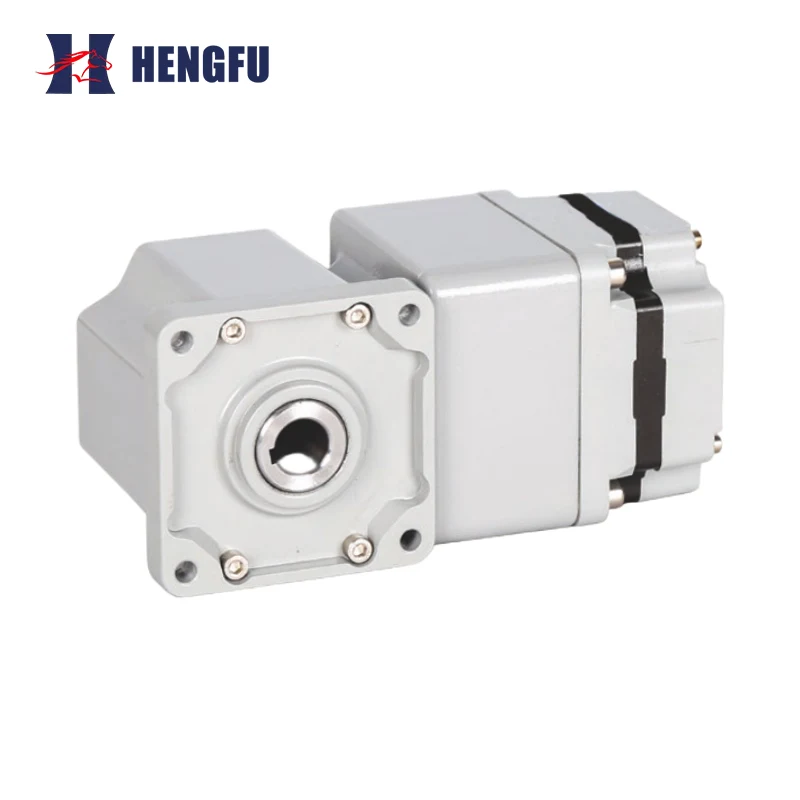

60W BLDC Motor with 80GR Right-Angle Gearbox

This 60W BLDC Motor with 80GR Right-Angle Gearbox is designed specifically for automated equipment that requires vertical steering and precision transmission. It achieves a compact layout and high torque output through a right-angle shaft structure, making it an ideal power solution for robot end joints, precision instruments, logistics transportation and other fields.

Product Advantages

Right-angle layout for optimal space utilization: The 90° corner design vertically converts the transmission direction, saving XX% of planar space, making it particularly suitable for robotic arm end effectors and multi-layer automated equipment.

High torque output and stable transmission: An 80GR reduction ratio paired with high-strength gears delivers a peak torque of 7 N·m, suitable for heavy-duty applications such as lifting, clamping, and rotation.

High-precision positioning with minimal error: Gear precision reaches ISO 5 level, with a transmission error ≤5% and a repeatability of ±X%, superior to ordinary right-angle reducers.

Low vibration and noise, quiet operation: Gears undergo precision grinding and dynamic balancing, resulting in operating noise ≤55dB, suitable for quiet environments such as laboratory equipment and precision machining.

Modular design for easy installation: 60W BLDC Motor with 80GR Right-Angle Gearbox offers both flange and foot mounting options, adapting to various equipment interfaces and shortening system integration time.

Applications

Robotics: Industrial robot end effectors, collaborative robotic arm rotary modules, AGV steering systems.

Automation Equipment: Automated production line corner conveyors, material handling mechanisms, precision assembly platforms.

Medical Equipment: Surgical robot rotary arms, CT scanner drive modules, medical imaging equipment lifting axes.

Precision Manufacturing: CNC machining center rotary tables, laser cutting machine oscillating axes, semiconductor testing equipment.

Scenario Differentiation: 60W BLDC Motor with 80GR Right-Angle Gearbox is suitable for space-constrained scenarios requiring vertical corner transmission, replacing multi-stage reducer combinations and improving system compactness and transmission efficiency.

Installation & Usage

Installation Requirements:

Ensure the perpendicularity between the input shaft and motor shaft, and between the output shaft and load shaft, is ≤0.1mm. Use a dial indicator for calibration.

When installing the flange, tighten the screws evenly, ensuring the torque conforms to the specifications (avoid localized stress concentration).

Electrical Connections:

Use a dedicated BLDC driver; do not connect directly to the power supply.

Encoder signal lines must be shielded to prevent electromagnetic interference.

Load Control:

Actual load torque ≤80% of rated torque; avoid frequent overload operation.

In high-temperature environments, a cooling fan or forced air cooling is required.

Maintenance Tips:

Fully enclosed lubrication design; no oil change is required during its lifespan. Regularly check the oil level (if an oil window is present).

Packaging

Packaging: The 60W BLDC Motor with 80GR Right-Angle Gearbox is secured with a high-precision aluminum alloy mold and sealed with a vacuum shockproof film, then protected by an outer honeycomb cardboard box and wooden frame to prevent impact and deformation.

Shipping: For standard models and non-standard customized models (such as special shaft lengths or voltages), please consult customer service. We support worldwide sea freight/DHL/air freight.

Corporate Strength

Company Honors and Qualifications

Partner Brands

FAQ

Q1: How to choose between a right-angle reducer and a parallel-shaft reducer?

A: Right-angle reducers are used for 90° angle transmissions, while parallel-shaft reducers are used for parallel layout transmissions. The selection should be based on actual space and directional requirements.

Q2: Can an 80GR reduction ratio be customized?

A: Customization is supported within the range of 3-300GR. Load parameters are required, with a minimum order quantity of 10 units.

Q3: How to ensure installation accuracy?

A: It is recommended to use a laser alignment instrument for calibration. Coaxiality/perpendicularity must meet the requirements of the parameter table.

Q4: Is the 60W BLDC Motor with 80GR Right-Angle Gearbox waterproof?

A: IP54 dust and splash resistant. For humid or underwater environments, an IP55 or higher version or custom seals are required.
